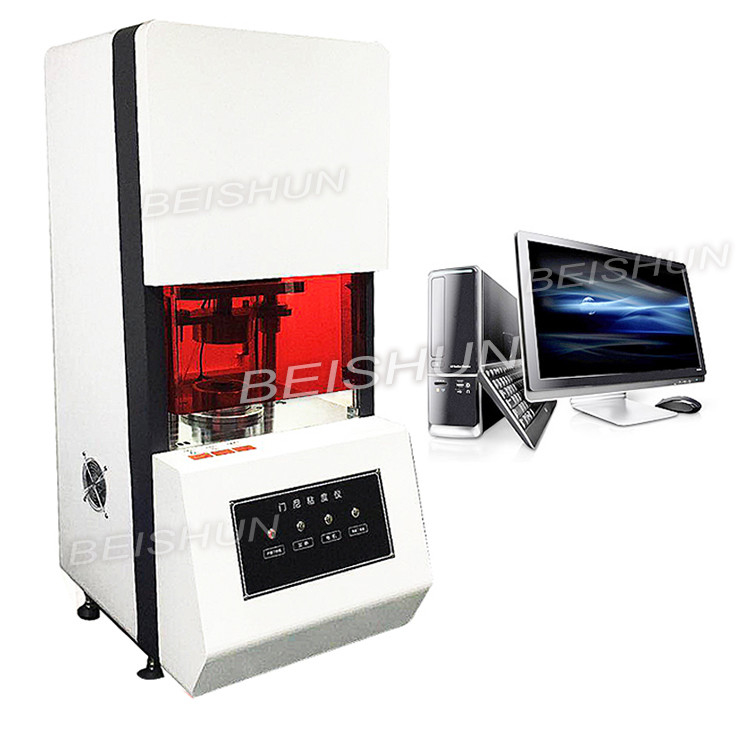

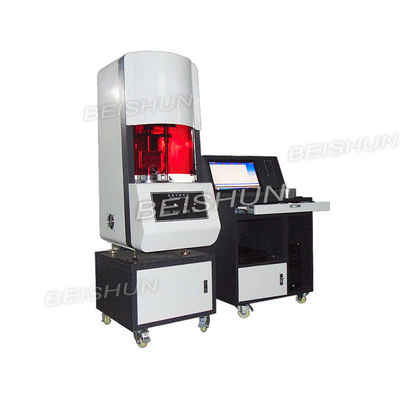

Computer Servo Rubber Rheometer with LCD Touch Screen and 220V Power Supply for Laboratory Use

Brand Name:	Beishun
Model Number:	SF-9580
MOQ:	1set
Price:	Negotiable
Packaging Details:	Wooden box/20GP/40GP
Payment Terms:	T/T,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao

Certification:

ISO/CE

Customized Support:

OEM, ODM

Power:

Electronic

Display:

LCD Touch Screen

Package:

Standard Wooden Case

Usage:

No Rotor Rheometer For Rubber

Power Supply:

50HZ, ~220V±10%, 50±1Hz, Must Be Well Grounded

Supply Ability:

30sets

Highlight:

LCD Rotorless Moving Die Rheometer

Computer Servo Rubber Making Machine

Computer Servo Moving Die Rheometer

Product Description

Computer Servo Rubber Making Machine LCD Rotorless Moving Die Rheometer

Laboratory Computer Servo Rubber Rotorless Moving Die Rheometer

Application

Laboratory rubber rheometer widely used in rubber processing industry, rubber quality control and basic research rubber. For optimize formula of rubber provide accurate data. It can accurately measure the scorch time, rheometer time, sulfide index, the maximum and minimum torque and other parameters.

Main Functions

Rheometer Machine/Rotational Rheometer/Moving Die Rheometer Price Moving Die Rheometer used monolithic rotor control, which include: host, temperature measurement, temperature control, data acquisition and processing, sensors and electrical chains and other components.

These measurements, temperature control circuit consists of a temperature control device, platinum resistance, heater composition, capable of automatic tracking power and ambient temperature changes, automatically correct PID parameters to achieve fast and accurate temperature control purposes.

Data acquisition system and mechanical linkage to complete the rubber vulcanization process of force torch signal automatic detection, automatic real-time display of temperature and settings. After curing, automatic processing, automatic calculation, print vulcanization curve and process parameters. Show curing time, curing power Ju, also has a variety of audible alert.

Technical Parameters

Model	Laboratory rheometer
Standard	GB/T16584 IS06502
Temperature	room temperature to 200 Centigrade
Heating-up	15 Centigrade/min
Temperature fluctuation	≤ ±0.3 Centigrade
Temperature resolution	0.01 Centigrade
Torque range	0-5N.M,0-10N.M,0-20N.M
Torque resolution	0.001NM
Power	50HZ, 220V±10%
Pressure	0.4Mpa
Air-pressure requirement	0.5Mpa--0.65MPa (user prepare the dia 8 trachea)
Environment temperature	10 Centigrade--20 Centigrade
Humidity range	55--75%R.H
Compressed air	0.35-0.40Mpa
Swing frequency	100r/min (about 1.67HZ)
Swing angle	±0.5 Centigrade ,±1 Centigrade , ±3 Centigrade
Printing	date, time, temperature,vulcanization curve,temperature curve, ML,MH,ts1,ts2,t10 ,t50, Vc1, Vc2.

Frequently Asked Questions

1. Delivery time of the Batch Off Rubber Cooling Machine?

This is specially designed machine according to your specific requirement. From engineer designing to production completion, it needs about 35 to 45 days.

2. What does your factory do regarding quality control?

We pay much more importance to quality control from the very beginning to the end of production. Every machine will be fully assembled and carefully tested before shipment.

3. What's the machine quality guarantee?

Quality guarantee time is two year. We choose world famous brand components to keep our machine in perfect working condition.

4. Are you able to give installation and commissioning overseas? How long time will it take?

Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation. Small machine usually takes within 3~5 days. Big plant usually takes about 30 days.

5. How can I trust you to deliver the right machine as I ordered?

We will absolutely deliver a good quality machine as we discussed and confirmed in the order. At the same time, we regularly send the production schedule and machine photos during the production process. The core of our company culture is innovation, quality, integrity and efficiency. Also we have had many good cooperation with world famous rubber production manufacturers. If you come to our factory, we can show you're the user around us.

6. How can we go to your side?

We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao liuting airport. We will pick up you at the airport.
