Double Roller Tire Block Crusher with 1500kg/h Production Capacity 66kw2 Driving Motor and 10m5m*3m Dimension for Efficient Tire Recycling

Brand Name:	Beishun
Model Number:	XLB-1200*1200/1.6MN
MOQ:	1set
Price:	Negotiable
Packaging Details:	Wooden box/20GP/40GP
Payment Terms:	T/T,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao

Certification:

ISO/CE

Raw Material:

Rubber/waste Tire

Production Capacity:

1500kg/h

Driving Motor:

66*kw*2

Operating System:

PLC Control

Processing Material:

Waste Tyres

Shaft Design:

Three Angle

Model:

WT-100

Bearing:

Dimension:

10m*5m*3m

Working Theory:

Fixed And Mobile Disk

Final Products:

Rubber Black/Steel Wire

Model No:

QDJ-1200

Tire Machine Type:

Tire Recycling Powder Machine

Worker Requires:

3-5 Workers In Whole Line

Supply Ability:

30sets

Highlight:

Water Circulation Cooling Tire Block Crusher

Double Roller Tire Block Crusher

Rubber Particles Tire Block Crusher

Product Description

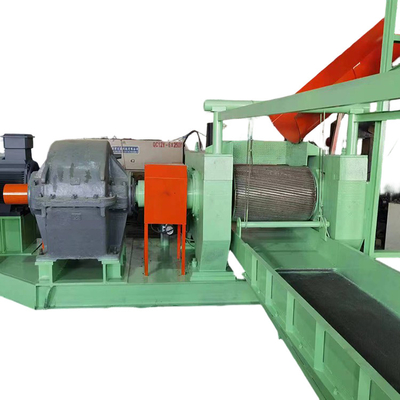

Double Roller Tire Block Crusher With Water Circulation Cooling Process

The Double Roller Tire Block Crusher with Water Circulation Cooling is used to process tire blocks into rubber particles. This specialized machine is essential in the tire recycling industry for breaking down large tire blocks into smaller, manageable pieces for further processing.

Key Features

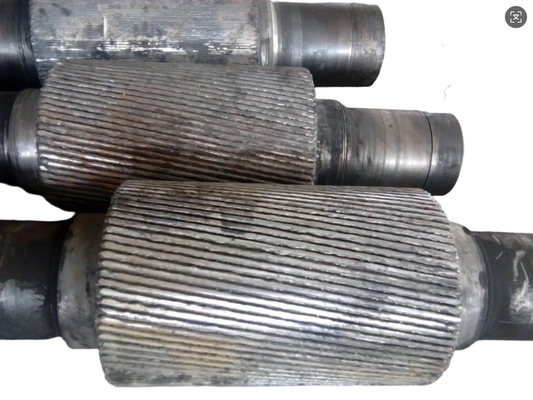

Double Roller Design: Equipped with two counter-rotating rollers with cutting blades made of high-strength alloy steel for durability and wear resistance.
High Crushing Efficiency: Processes large tire blocks (200-300mm) into smaller pieces (10-50mm) in a single pass.
Adjustable Gap: Allows control of output size by adjusting roller distance.
Robust Construction: Heavy-duty materials withstand high stress and impact.
Safety Features: Includes emergency stop buttons, overload protection, and safety guards.
Low Maintenance: Designed for easy maintenance with replaceable blades.
Automated Operation: Optional PLC control systems available.
Energy Efficient: Optimized design reduces power consumption while maintaining productivity.

Working Principle

1. Feeding: Tire blocks are fed via conveyor or manually.

2. Crushing: Counter-rotating rollers grip and shred the blocks.

3. Output: Crushed material discharges through the bottom for further processing.

Technical Specifications

Parameter	Specification
Machine Type	Double roller tire block crusher
Application	Crushing tire blocks for recycling
Input Size	Up to 200-300 mm
Output Size	10-50 mm (adjustable)
Roller Diameter	300-600 mm
Roller Width	500-1,200 mm
Roller Material	High-strength alloy steel
Power Requirement	30-75 kW
Production Capacity	2-10 tons per hour
Control System	Manual or PLC-controlled
Certifications	CE, ISO standards

Applications

• Tire recycling plants for crumb rubber production

• Rubber product manufacturing (mats, flooring)

• Construction industry for rubber-modified asphalt

Advantages

• High crushing efficiency and productivity

• Adjustable output size for versatile applications

• Durable construction for long-term use

• Low maintenance and operational costs

Selection Considerations

1. Match production capacity requirements

2. Verify input/output size capabilities

3. Evaluate power consumption efficiency

4. Consider maintenance and spare parts availability

5. Choose reputable manufacturers for reliability

This double roller tire block crusher is a critical piece of equipment for tire recycling operations, improving efficiency while contributing to sustainable recycling practices.
