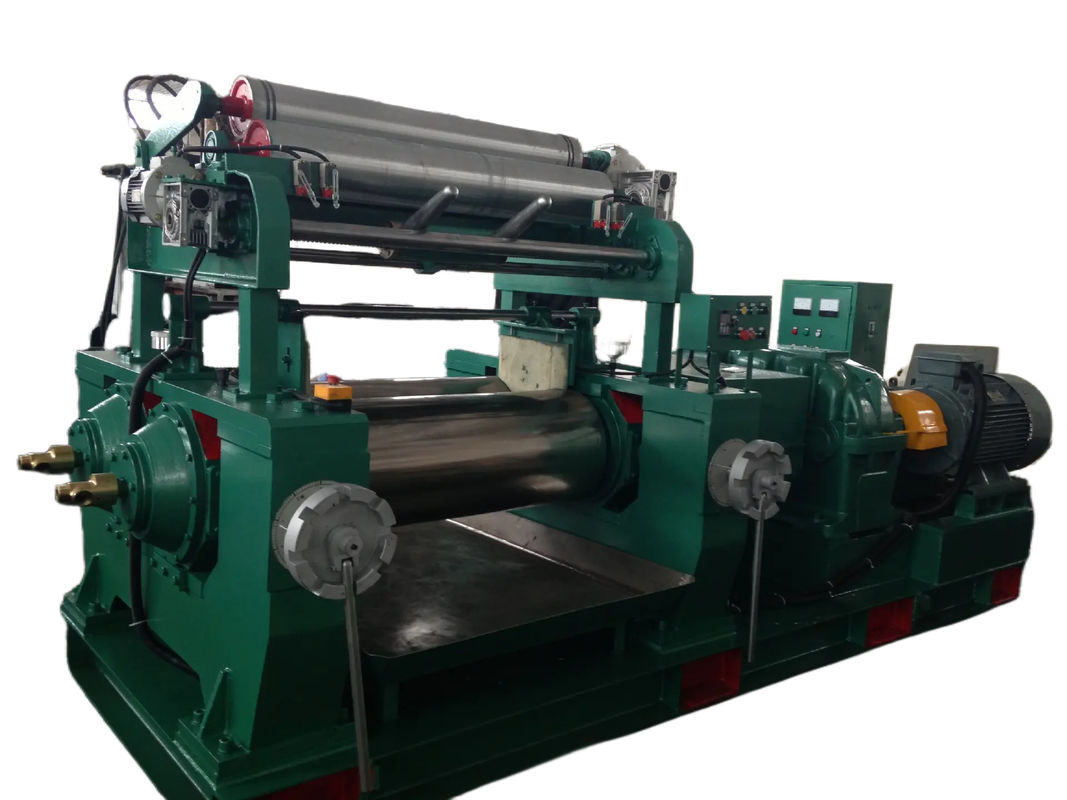

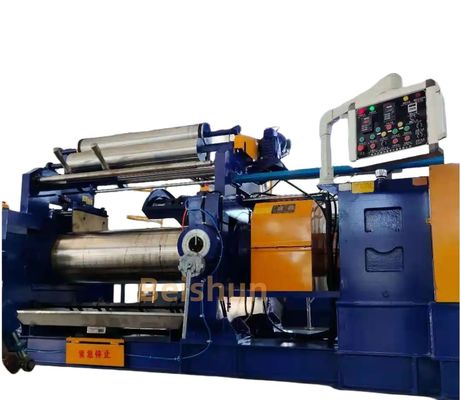

18 Inch Electric Adjustable Rubber Mixing Mill

1. Overview
   • The 18 - inch electric adjustable rubber mixing mill is a powerful and versatile machine used in the rubber processing industry. The "18 - inch" refers to the diameter of the rollers, which is a key specification determining the capacity and scale of the mixing operation. It is electrically powered, providing a reliable and consistent source of energy for the mixing process.
2. Roller System
   • Roller Size and Material: The 18 - inch diameter rollers are typically made of high - quality materials such as chilled cast iron or alloy steel. These materials offer excellent hardness and wear - resistance properties. The large diameter of the rollers allows for a greater volume of rubber to be processed at a given time compared to smaller - sized mills.
   • Surface Finish: The surface of the rollers is carefully machined to a smooth finish. This smoothness is crucial as it ensures that the rubber is evenly mixed and that there is no damage to the rubber during the mixing process. For example, a rough surface could cause tearing or uneven distribution of additives in the rubber.
   • Adjustable Feature: The rollers are adjustable, which is a significant advantage. The distance between the two rollers can be altered according to the specific requirements of the rubber mixing process. This adjustment allows for different thicknesses of the rubber sheet to be produced. For instance, a narrow gap can be set to produce a thinner and more compact rubber sheet, while a wider gap is suitable for initial mixing or for handling thicker rubber batches.
3. Electric Drive System
   • Motor Power: The electric motor provides the necessary power to drive the rollers. The power of the motor is designed to handle the resistance encountered during the mixing of rubber, which can be quite high due to the viscous nature of the material. A powerful motor ensures that the rollers rotate at a consistent speed, which is essential for efficient and uniform mixing.
   • Speed Control: The motor usually comes with a speed - control mechanism. This allows the operator to adjust the rotational speed of the rollers according to the type of rubber being mixed and the specific mixing requirements. For example, a slower speed might be used for more delicate or heat - sensitive rubber compounds, while a higher speed can be applied for more robust and less temperature - sensitive materials. The speed control also enables the operator to fine - tune the shearing and kneading action of the rollers.
4. Mixing Process
   • Shearing and Kneading Action: As the two rollers rotate in opposite directions, the rubber placed between them is subjected to a combination of shearing and kneading. The shearing action breaks down the rubber molecules and helps to disperse additives such as fillers, accelerators, and antioxidants evenly throughout the rubber. The kneading action, on the other hand, folds and mixes the rubber, ensuring a homogeneous blend. For example, when carbon black is added to rubber, the shearing and kneading actions of the mill ensure that it is well - distributed, improving the strength and other properties of the rubber.
   • Temperature Management: During the mixing process, heat is generated due to the friction between the rubber and the rollers and the internal friction within the rubber itself. Some advanced 18 - inch electric adjustable rubber mixing mills are equipped with temperature - control systems. These systems can either cool or heat the rollers to maintain the rubber at an optimal temperature. Maintaining the correct temperature is crucial because it affects the viscosity of the rubber and the efficiency of the mixing process. For example, if the temperature gets too high, the rubber may become too soft and lose its shape, while if it's too low, the mixing may not be as effective.
5. Applications
   • Tire Manufacturing: In the tire industry, this type of mixing mill is used to prepare the rubber compounds for various parts of the tire, including the tread, sidewalls, and inner liners. The precise mixing of different rubber types and additives is essential to achieve the desired performance characteristics such as traction, durability, and resistance to wear and tear.
   • Industrial Rubber Products: It is also widely used in the production of other industrial rubber products like conveyor belts, rubber hoses, and seals. For conveyor belts, the mixing mill ensures that the rubber compound has the right combination of strength and flexibility to handle heavy loads and continuous operation. In the case of seals, the uniform mixing of rubber and additives helps to achieve a tight and long - lasting seal.

Technical parameter:
