ISO Certified Rubber Extruder Machine for High Output EPDM Seal Strip with 2 Years Warranty

ISO Certified Rubber Extruder Machine for High Output EPDM Seal Strip with 2 Years Warranty

Brand Name:	Beishun
Model Number:	XJ-150
MOQ:	1set
Price:	Negotiable
Payment Terms:	T/T,L/C
Supply Ability:	30sets

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao

Certification:

ISO/CE

Voltage:

Customer Request

Condition:

New

After-sales Service Provided:

Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Overseas Service Center Available,Field Maintenance And Repair Service

Warranty:

2 Years

Packaging Details:

Wooden box/20GP/40GP

Highlight:

ISO Silicone Rubber Extruder Machine

Silicone Rubber Extruder Machine NBR

PVC Extruder Rubber Machine NBR

Product Description

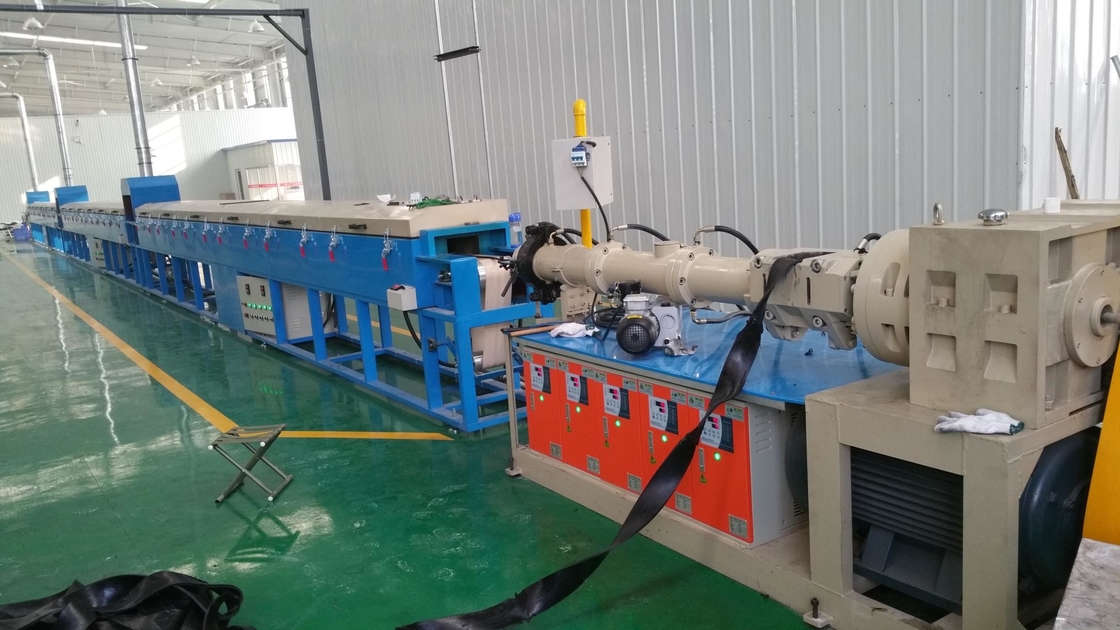

ISO Silicone Rubber Extruder Machine EPDM Seal Strip Extruder Rubber Machine

The cold feed rubber extruder is designed and manufactured to produce semi-finished rubber products of various shapes. This machine is used for extruding different shapes of rubber semi-products and is widely used for the production of O-rings, seal rings, sealing elements, rubber sheets, rubber strips, water stops, rubber pads, rubber hoses, rubber belts, cables, railway equipment, tires, inner tubes, and more. The machinery offers high efficiency and volume output.

Extruder Machine Types

Hot feed extruder
Pin cold feed extruder
Pin-barrel cold feed extruder
Rubber strainer

Product Specifications

The screw is made from 38CrMoAIA materials with nitride depth 0.5-0.7mm and hardness HV950-1000.
The extruder's feeding cylinder is composed of a rear body, front bushing and rear bushing in a jacketed cast iron structure.
Rear body utilizes cast steel with temperature control circulating water for cooling.
Bushings are made from 38CrMoAIA materials with internal surface hardness HRC65-70.
Feeding device includes feeding roller, cover, bearing support, gear pair, bearing, and squeegee knife.
Roller cylinder adopts 38CrMoAIA materials with nitriding treatment and internal surface hardness HRC65-70.
Reducer features hardened gears with level 6 transmission accuracy and forced lubrication system.

Model Specifications

Mode	XJW-65	XJW-90	XJW-120	XJW-150	XJW-200
Screw dia, mm	65	90	120	150	200
L/D Ratio	12	12;14;16;20	12;14;16	14;16	12;14;16
Motor Power (kw)	15	55-90	75-110	185-220	315-355

EPDM Sealing Strip Extruder: Technical Details and Selection Guide

EPDM (ethylene propylene diene monomer rubber) sealing strips are widely used in automotive, construction, rail transit and other industries. They are the preferred material for sealing solutions due to their excellent weather resistance, ozone resistance and elasticity. The EPDM sealing strip extruder is the core equipment for production of such products, requiring specialized design for material properties and process requirements.

Core Requirements of EPDM Sealing Strip Extruder

Material property adaptation: High-torque screws and forced feeding systems required due to EPDM's poor fluidity and high viscosity
Temperature sensitivity: Precise temperature control needed (optimal processing temperature: 80-120°C)
Process difficulties: Vacuum exhaust function required to remove entrained air; high-precision die and shaping device needed for complex cross-sections

Equipment Composition and Key Technologies

1. Extrusion System

Screw design: Length-to-diameter ratio (L/D) 18:1-22:1 with high compression ratio 1.8:1-2.5:1
Mixing section: Barrier screw or pin mixing section to ensure uniform plasticization
Barrel temperature control: Multi-stage PID control (±1℃ accuracy)

2. Feeding System

Forced feeding roller to prevent EPDM slipping
Optional premixing device for uniform dispersion of additives

3. Vacuum Exhaust System

Two-stage screw: first stage plasticization, second stage vacuum degassing (vacuum degree ≥ 0.08MPa)
Effective bubble removal to reduce internal defects

4. Die Head and Die

Gradient flow channel design to avoid dead glue and adapt to complex cross-sections
Chrome-plated or high-strength alloy steel construction for wear resistance

5. Auxiliary Equipment

Segmented cooling water tank (60℃→room temperature) to prevent deformation
Servo motor driven traction machine with speed synchronization accuracy ±0.5%
Laser length measurement for fixed length cutting or automatic coiling
