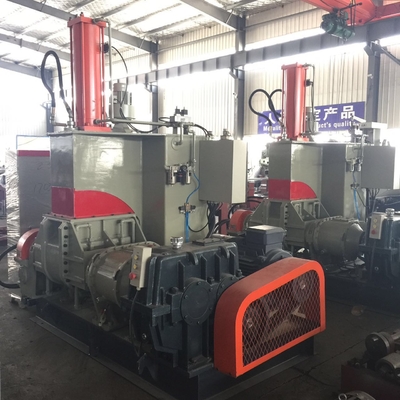

Automatic Rubber Kneader Machine PLC Control Kneader Rubber Mixer 125L

Brand Name:	Beishun
Model Number:	X(S)N-110LX30
MOQ:	1set
Price:	Negotiable
Packaging Details:	Wooden box/20GP/40GP
Payment Terms:	T/T,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao

Certification:

ISO/CE

Type:

Rubber Kneader

Voltage:

Optional Made To Order

Warranty:

2 Years

Control Method:

PLC Control

Supply Ability:

30sets

Highlight:

Rubber Kneader Machine PLC Control

Automatic Rubber Kneader Machine

PLC Control Kneader Rubber Mixer

Product Description

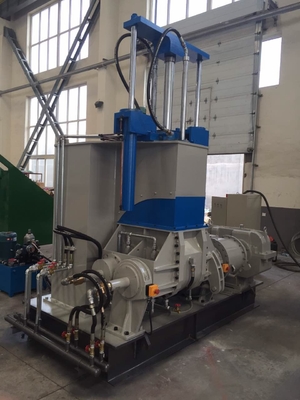

Rubber Dispersion Kneader Mixing Machine

Applications

The pressurized rubber kneader machine is engineered for use in rubber and rubber product factories. According to the structure, the kneader can be divided into a pressurized kneader and an open kneader. According to the working principle and purpose, it can be divided into a rubber-plastic mixer and a rubber recycling tablet press. The rubber kneader helps to process rubber for the production of tires, cables, rubber hoses, belts, shoes, and seals.

Description of products

1. Rubber dispersion kneader is used for mixing or compounding rubber and plastics. The mixer consists of two rotating spiral-shaped rotors encased in segments of cylindrical housings. The rotors may be cored for circulation of heating or cooling.

2. Mixing chamber: constructed from premium alloy steel for welding-→annealing- -finish machining- +surface hard chrome plating-→polishing treated using 400 grit abrasive cloth. Chrome layer thickness is 0.10mm with hardness of HV900~1000.

3. Front and rear rotor: rotor is made of cast steel with manganese and other alloy materials-→the head of rotor is welded with wear-resistant hard alloy with a thickness of 3~5mm- +processing and polishing treatment- +full body is treated by hard chrome plating with a thickness of 0. 10mm.

4.Internal mixing seal system: labyrinth seal system to prevent leakage of powder and feed materials.

5. Feed material from the rear door of the frame or from the side, and the mixing chamber is turned forward for 140° to discharge, which is convenient for the connection of the upper and lower processes of the production process, and facilitates the observation and cleaning of the mixing chamber.

Model		X(S)N-35x 30	X(S)N-55x 30	X(S)N-75 x30	X(S)N-110 x30	X(S)M-150 x30
Total Volume of Mixing Chamber	L	75	125	180	250	325
Working Volume of Mixing Chamber	L	35	55	75	110	150
Driving Motor Power	KW	55	75	110	185	220
Tilting Motor Power	KW	1.1	1.1	2.2	4	5.5
Tilting Angle		140	140	140	140	140
Rotating Speed of (Front /Rear) Rotor	r/min	30/24.5	30/24.5	30/24.5	30/24.5	30/24.5
Pressure of Compressed Air	MPa	0.5~0.8	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8
Consumption of Compressed Air	m3/min	≥0.9	≥1.0	≥1.0	≥1.5	≥2.0
Pressure of Cooling Water	MPa	0.3~0.4	0.3~0.4	0.3~0.4	0.3~0.4	0.3~0.4
Pressure of Heating Steam	MPa	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8
Overall Dimension	Mm	3800x2100x3000	4400x2200x3100	4500x2500x3200	4800x3000x3700	5000x3300x3900
Weight	Kg	6500	7800	10500	14500	19500

Our advantage

1. Rubber dispersion kneader machines are designed and manufactured according to China Chemical Industrial Standards HG/T 3798-2005 & HG/T 3799-2005 and manufacturer enterprise standards.

2. Inspections are performed according to China National Standards GB/T 1182-2008 & GB/T 1184-1996.

3. X(S)N~-35, X(S)N-55 and X(S)N-75 are three widely used kneading machine types, on average selling 60 pieces each year.
