Motorcycle Tire Vulcanizing Machine Hydraulic Tire Capsule Vulcanizing Press / Motorcycle Tyre Making Machine
Motorcycle Tire Vulcanizing Machine Hydraulic Tire Capsule Vulcanizing Press
Motorcycle Tyre Making Machine
It is used for automatic shaping and vulcanization of tires during production process of bicycle, electric car, motorcycle cover tires, and ATV tires, replacing the wind(water) tire to complete production of tire products in accordance with technological requirements.

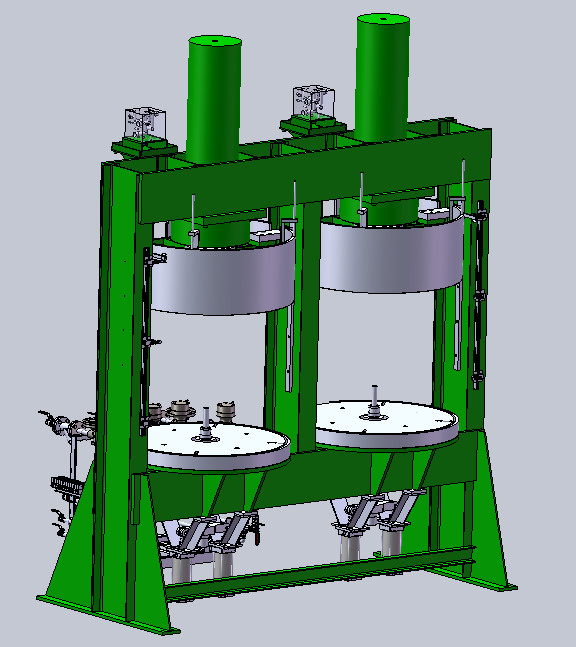

This machine used shaping and vulcanizing machine powered by hydraulic pressure, adopting B-type capsule, tow-way thermal curing. Mainly consists of beam, umbrealla stand, hot plate, central organization, foundation, frame. electric control system, oil pressure system and other parts. The machine has a simple structure, stable running, high accuracy of upper and lower mold aligment, easy operation, simple maintenance, high production efficiency, low labor strength and other characteristics.
main paramter of machine
| Type | LLB-650/40 | LLB/M-800/60 | LLB-800/100 |
| Max. Closing mold force(T) | 25-40 | 60 | 80-90 |
| Diameter of heating plate(mm) | 500-650 | 800 | 800-840 |
| Space between plate(mm) | 300-600 | 500-600 | 600-650 |
| Applicable rim diameter(inch) | 4”5”6”8” | 8”-16” | 16”-18” |
| Qty. Of mold(set) | 2 | 2 | 1 |
| Diameter of plunger(mm) | 200 | 200 | 290 |
| Diameter of center pole(mm) | 25-35 | 35-40 | 40 |
| Stroke of center pole(mm) | 200 | 200 | 300 |
| Working air pressure(Mpa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| Internal air pressure(Mpa) | 1.8 | 1.8 | 1.8 |
| Internal steam pressure(Mpa) | 0.8-1.5 | 0.8-1.5 | 0.8-1.5 |
| Internal pressure of preshaping(Mpa) | 0.1-0.2 | 0.1-0.2 | 0.1-0.2 |
| Motor power(kw) | 7.5 | 7.5 | 11 |
| Overall diameter of principle machine(mm) | 1200x900x2300 | 2400x900x2910 | 2700x1300x2550 |
| Overall size of pump(mm) | 1000x600x1200 | 1000x600x1200 | 1520x1130x1300 |
| Weight of principle machine(kg) | 2500 | 2800 | 3500 |
Motorcycle Tire Vulcanizing Machine
,Hydraulic Tire Capsule Vulcanizing Press
,ISO9001 Motorcycle Tyre Making Machine
