7.5kw Motorcycle Tire Building Machine 200mm Hydraulic Tyre Curing Press
Product Summary
7.5kw Motorcycle Tire Building Machine 200mm Hydraulic Tyre Curing Press Motorcycle Tire Capsule Vulcanizing Machine This hydraulic pressure tyre curing press is designed for automatic shaping and vulcanization of tires during production processes for bicycle, electric car, motorcycle cover tires, ...
Basic Properties
Place of Origin:
Qingdao
Brand Name:
Beishun
Certification:
ISO/CE
Model Number:
LLY-B950x1000
Trading Properties
Minimum Order Quantity:
1set
Price:
Negotiable
Payment Terms:
T/T,L/C
Supply Ability:
30sets
Product Description
7.5kw Motorcycle Tire Building Machine 200mm Hydraulic Tyre Curing Press
Motorcycle Tire Capsule Vulcanizing Machine
This hydraulic pressure tyre curing press is designed for automatic shaping and vulcanization of tires during production processes for bicycle, electric car, motorcycle cover tires, and ATV tires. It replaces traditional wind/water tire methods to complete tire production according to technological requirements.
Machine Features
- Hydraulic pressure powered shaping and vulcanizing machine
- B-type capsule two-way thermal curing technology
- Simple structure with stable running performance
- High accuracy of upper and lower mold alignment
- Easy operation and simple maintenance
- High production efficiency with low labor intensity
Technical Specifications
| Parameter | LLB-650/40 | LLB/M-800/60 | LLB-800/100 |
|---|---|---|---|
| Max. Closing Mold Force (T) | 25-40 | 60 | 80-90 |
| Diameter of Heating Plate (mm) | 500-650 | 800 | 800-840 |
| Space Between Plate (mm) | 300-600 | 500-600 | 600-650 |
| Applicable Rim Diameter (inch) | 4"5"6"8" | 8"-16" | 16"-18" |
| Quantity of Mold (set) | 2 | 2 | 1 |
| Diameter of Plunger (mm) | 200 | 200 | 290 |
| Diameter of Center Pole (mm) | 25-35 | 35-40 | 40 |
| Stroke of Center Pole (mm) | 200 | 200 | 300 |
| Working Air Pressure (Mpa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| Internal Air Pressure (Mpa) | 1.8 | 1.8 | 1.8 |
| Internal Steam Pressure (Mpa) | 0.8-1.5 | 0.8-1.5 | 0.8-1.5 |
| Internal Pressure of Preshaping (Mpa) | 0.1-0.2 | 0.1-0.2 | 0.1-0.2 |
| Motor Power (kw) | 7.5 | 7.5 | 11 |
| Overall Diameter of Principle Machine (mm) | 1200x900x2300 | 2400x900x2910 | 2700x1300x2550 |
| Overall Size of Pump (mm) | 1000x600x1200 | 1000x600x1200 | 1520x1130x1300 |
| Weight of Principle Machine (kg) | 2500 | 2800 | 3500 |

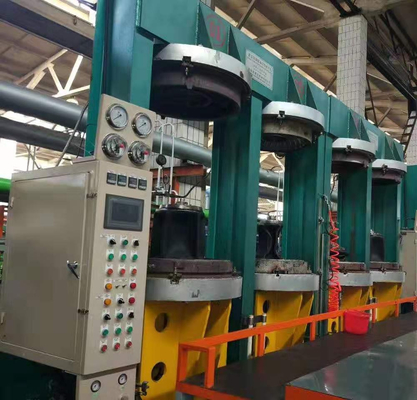

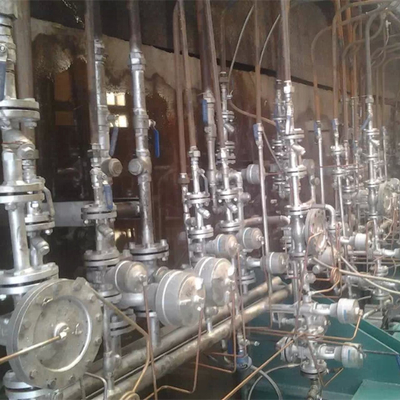

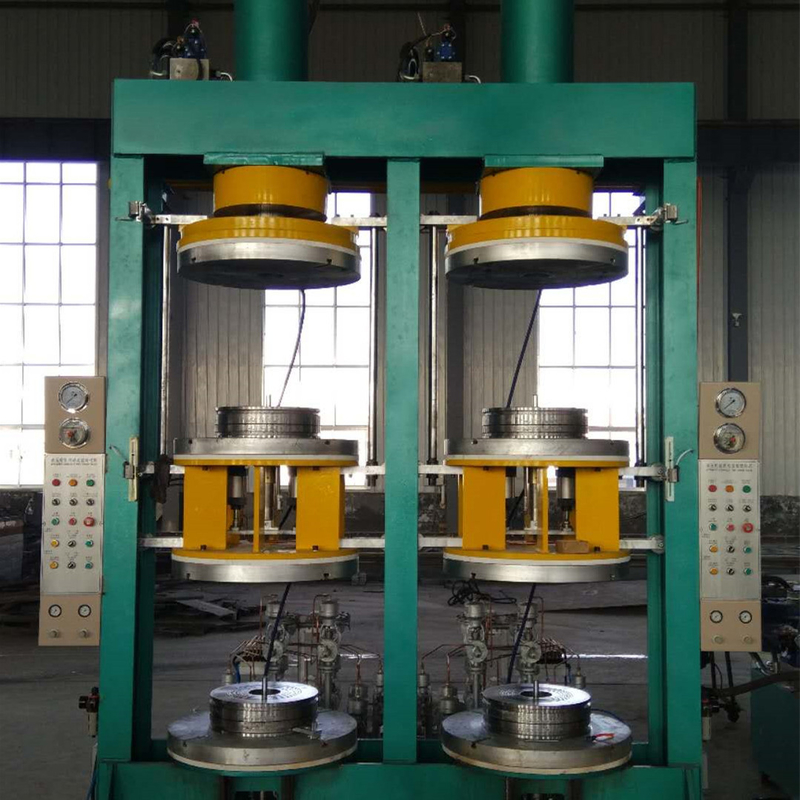

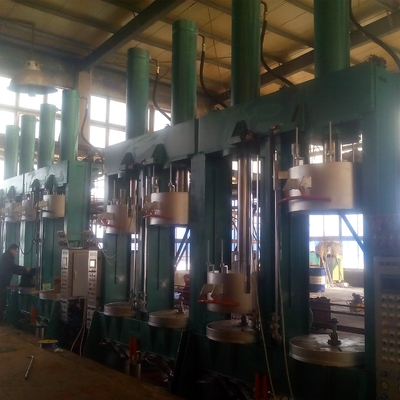

Machine Details
Manufacturer Information
Qingdao Beishun Environmental Protection Technology Co., Ltd. specializes in environmental protection machinery and rubber machinery research, development, and manufacturing. Located in Jiaonan city on the west coast of Qingdao, adjacent to Qingdao Economic and Technological Development Zone, the company benefits from excellent geographical positioning near Qingdao Port and Liuting International Airport.
Company Capabilities
- Advanced machining, heat treatment equipment, and sophisticated detection systems
- Experienced technical and management personnel
- Established business relationships with domestic and international customers
- Strong brand reputation within the industry
Business Philosophy
The company adheres to a business philosophy focused on first-class quality to gain market confidence, quality service to win customer satisfaction, and continuous improvement for enterprise development. Qingdao Beishun maintains a "realistic, innovative, rigorous and efficient" business style with good governance and integrity as core principles.
Product Details
Highlight:
7.5kw Motorcycle Tire Building Machine ISO9001
,Motorcycle Tire Building Machine 200mm ISO9001
,200mm Hydraulic Tyre Curing Press Beishun
Other Name:
Hydraulic Tire Curing Press Product
Color:
Green Or Blue
Condition:
New
Warrenty:
1 Year
After Sales Service:
Engineer Available
Control Way:
Automatic
Voltage:
Customer Request
