| Brand Name: | Beishun |
| Model Number: | WC-1500 |
| MOQ: | 1set |
| Price: | USD40000-USD46200 |
| Packaging Details: | wooden box |
| Payment Terms: | TT，L/C |
Horizontal Bias Cutter/Horizontal Bias Cutting Machine/Bias Cutter
Rubber Cutter Machine/Fabric Cord Cutting Machine
Applicant
Cut the rubber coated cord, canvas, cloth, fine cloth after friction into specific width and angle. After cut, the canvas(curtain) fabric is turn up after connection by hand, for later forming use.
Structure features
The cutting machine mainly consists of let-off device, feed devices and fixed-length cutting device. With adjustment by the encoder, it can set the angle of cut cloth, with adjustment of servo motor, it can set the width of cut cloth. Cutting times adjustment range is wide, cutting stroke is adaptable to(curtain) fabric.
Main parameter
| Cutting times per minute | 10-20 |
| Applicable cord width | 1500mm |
| Diameter of fabric cord roll | 950mm |
| Cloth cutting width(mm) | 100-1000mm |
| Cloth cutting angle | 0-50° |
| Stroke of cutter | 2800mm |
| Length fixing type | Manual or automatic |
| Revolving speed of cutter | 2700r/min |
| Pressure of compressed air | 0.6-0.8Mpa |
| Total capacity | 10kw/h |
| Overall size | 10500x4300x2100mm |
| Weight | 4500kg |

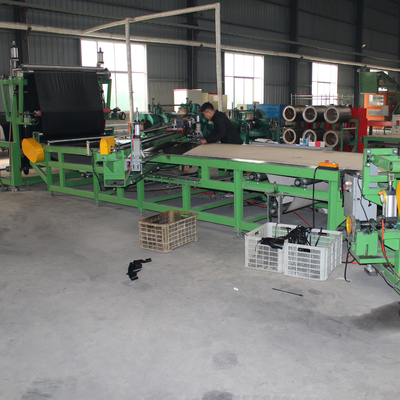

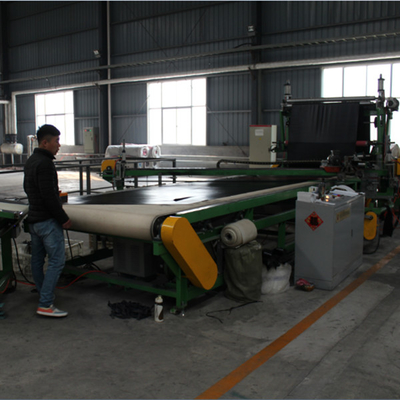

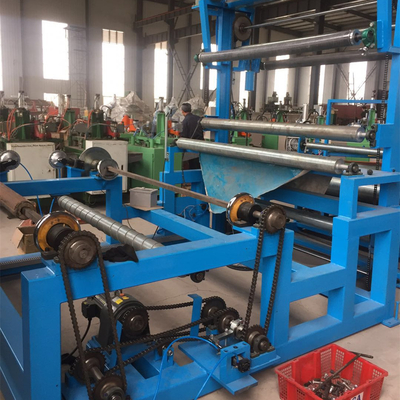

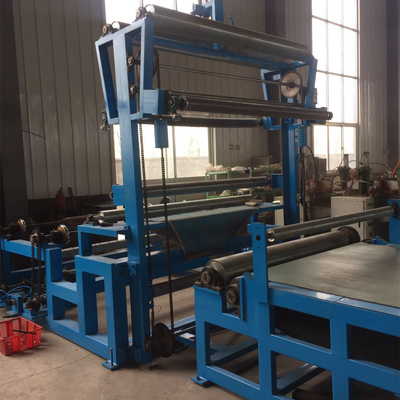

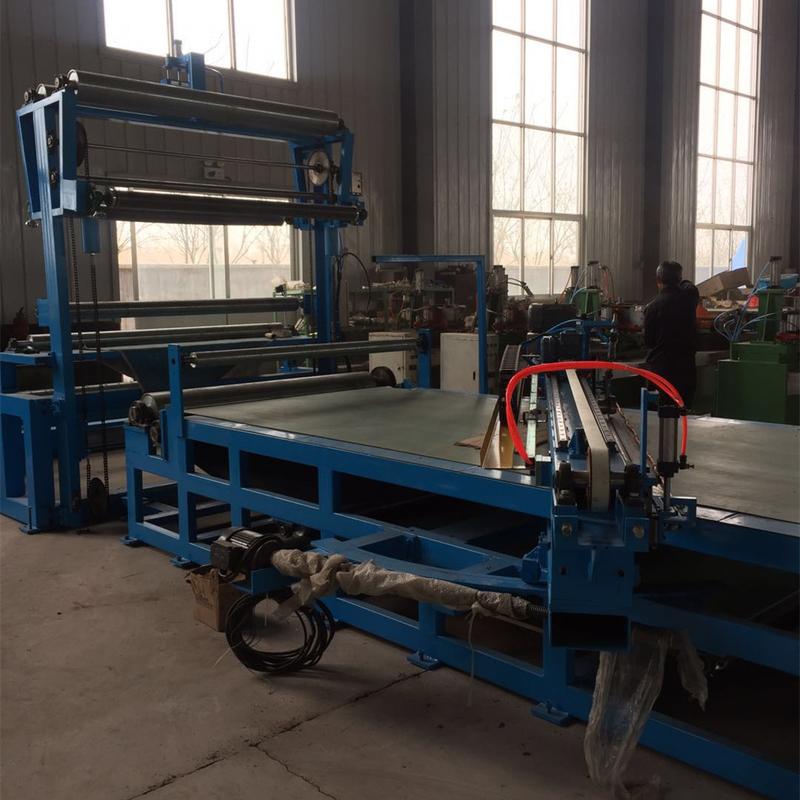

Machine detail
About us
Qingdao Beishun Environmental Protection Technology Co., Ltd. is engaged in Environmental protection machinery, rubber machinery R & D and manufacturing enterprises, located in the west coast of Qingdao ---- Jiaonan city, Qingdao Economic and Technological Development Zone, adjacent to the former Bay near Qingdao Port and International Airport Liuting airport, excellent geographical location.
The company gathered a large number of the industry's outstanding technical and management personnel, advanced machining, heat treatment equipment and sophisticated detection equipment. With high-quality service, advanced equipment and strong technical force as the basis, through constant innovation and development, Beishun Environmental Protection Technology machinery has many customers at home and abroad to establish a stable business relationship, and gradually establish a brand in the same enterprise.
Companies adhere to the "first-class quality to gain market confidence, quality service to win customer satisfaction, continuous improvement of enterprise development seek to establish a corporate brand management excellence" business philosophy, in terms of quality, brand and work hard to achieve the strategic goals of common development.
Qingdao Beishun Environmental Protection Technology Co., Ltd. will carry forward the "realistic, innovative, rigorous and efficient" business style, good governance, integrity first, with a high sense of responsibility "in customer service, service to the community", with industry colleagues mutual benefit, for a better tomorrow.
Packing and loading
|
