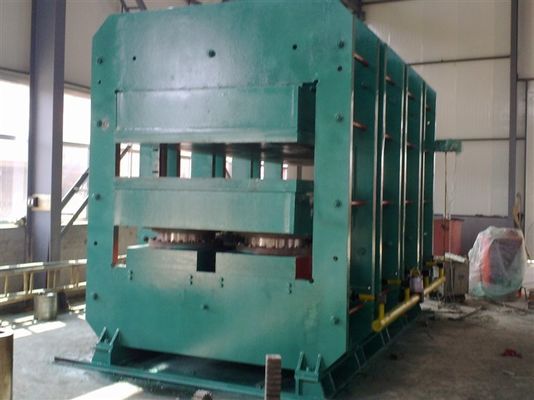

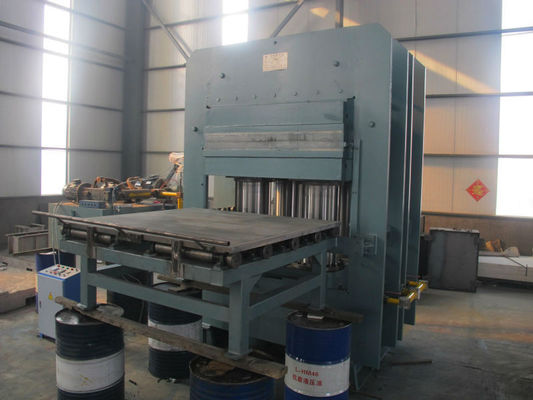

1200T Automatic PLC Control Rubber Vulcanizing Press Machine for Rubber Mat Production
Product Summary
1200T Automatic PLC Control Rubber Mat Vulcanizing Press Machine High-performance industrial vulcanizing press machine designed for efficient rubber compression molding with advanced PLC control system. Applications This rubber vulcanizing press machine is suitable for processing various rubber ...
Basic Properties
Place of Origin:
Qingdao
Brand Name:
Beishun
Certification:
ISO/CE
Model Number:
XLB-1200X2000X1/1200T
Trading Properties
Minimum Order Quantity:
1set
Price:
Negotiable
Payment Terms:
T/T,L/C
Supply Ability:
30sets
Product Description
1200T Automatic PLC Control Rubber Mat Vulcanizing Press Machine
High-performance industrial vulcanizing press machine designed for efficient rubber compression molding with advanced PLC control system.
Applications
This rubber vulcanizing press machine is suitable for processing various rubber materials including natural rubber, EPDM, NBR, synthetic rubber, and silicone rubber. Ideal for manufacturing:
- Rubber seals and O-rings
- Escalator handrails and rubber mats
- Automotive parts and rubber crash pads
- Rubber air springs and keyboard components
- Medical rubber parts and bottle stoppers
- Silicone wrist bands and water-stop tape
- Bridge supports and bearings
- Rubber cables and blankets
- Industrial tires and wheels
- Electronic insulators
Technical Specifications
| Model | Total Pressure (MN) | Daylight (mm) | Working Layer No. | Piston Stroke (mm) | Main Motor Power (KW) | Overall Dimensions (L x W x H) (mm) |
|---|---|---|---|---|---|---|
| XLB-350*350*2 | 0.25 | 125 | 2 | 250 | 2.2 | 1200*580*1200 |
| XLB-400*400*2 | 0.50 | 125 | 2 | 250 | 2.2 | 1400*500*1400 |
| XLB-600*600*2 | 1.00 | 125 | 2 | 250 | 2.2 | 1880*820*1680 |
| XLB-750*850*4 | 1.60 | 125 | 4 | 500 | 3 | 1730*930*2460 |
| XLB-900*900*2 | 2.5 | 200 | 2 | 400 | 4 | 2345*960*1385 |
| XLB-1200*1200*1 | 3.15 | 300 | 1 | 300 | 4 | 2800*1300*2300 |
| XLB-1300*2000*1 | 5.60 | 400 | 1 | 400 | 8 | 2000*1860*2500 |
| XLB-1500*1500*1 | 8.00 | 800 | 1 | 800 | 16.5 | 2200*2200*4300 |
| XLB-1500*2500*1 | 15.00 | 400 | 1 | 400 | 11 | 3000*2500*3300 |
| XLB-2000*2000*1 | 20.00 | 400 | 1 | 400 | 11 | 3600*3000*3300 |
Machine Features & Design
- Available in 4-columns structure and frame structure designs with below pressing type (upwards) operation
- Heating plate opens automatically using the self-weight of hot plate, platform and plunger
- Customizable plate size, piston stroke and total pressure to meet specific production requirements
- Optional manual-pull mold and automatic hydraulic-pull mold systems to reduce labor intensity
- Dual control methods: manual and automatic operation modes
- Fast mold-closing speed for high production efficiency with low locking speed to protect molds
- Oil cylinder constructed from nodular cast iron for enhanced compressive strength and wear resistance
- Multiple small oil cylinders ensure uniform vulcanization pressure distribution for superior product quality
Advanced Configuration & Components
- Advanced PLC control system with programmable working parameters
- Automated functions: lifting, mold open/close, air exhausting, pressure filling, and vulcanizing timing
- Integrated alarm systems and manual/automatic control switching
- High-quality hydraulic system components imported from Taiwan
- Machine body casting made of FCD 50 ductile cast iron with high tensile strength after aging passivation
- Pillars/columns constructed from medium carbon steel with hardness up to HRC55-58
- Three-stage winding cartridge heaters with nichrome wire, non-rust construction
- Premium Japanese Sakagami brand oil seals for wear resistance and durability
- Main electrical components from Schneider or Mitsubishi for stable machine performance
- Optional mold push-pull device to improve efficiency and reduce labor requirements
- Precision temperature control system for hot platens ensuring high-quality final products
Product Details
Highlight:
1200T Rubber Automatic Vulcanizing Machine
,Rubber Automatic Vulcanizing Machine PLC
,SGS PLC Control Rubber Mat Machine
Clamping Force:
1200 T
Product Name:
Vulcanizing Press Machine
Control Method:
PLC Control
Plunger Material:
Chilled Cast Iron
Unit Area Pressure:
50kg/cm²
Voltage:
Customer Request
