SGS Two Roll Rubber Mill with Antifriction Roller Bearing Hydraulic Brake and Stock Blender for Rubber Compounding

Product Summary
SGS Two Roll Rubber Mill Antifriction Roller Bearing Rubber Compounding Machine Rubber Mixing Mill Machine With Antifriction Roller Bearing For Rubber Compounding Applications The rubber mixing mill machine is widely used in the milling process of rubbers and rubber products. This machine is ...
Basic Properties
Place of Origin: Qingdao
Brand Name: Beishun
Certification: ISO/CE
Model Number: XK-450
Trading Properties
Minimum Order Quantity: 1set
Price: Negotiable
Payment Terms: T/T,L/C
Supply Ability: 30sets
Tags:

rubber mixing mill

rubber mixing machine

stock blender rubber mixing mill
Product Description
SGS Two Roll Rubber Mill Antifriction Roller Bearing Rubber Compounding Machine
Rubber Mixing Mill Machine With Antifriction Roller Bearing For Rubber Compounding
Applications
The rubber mixing mill machine is widely used in the milling process of rubbers and rubber products. This machine is primarily used for mixing raw rubber, rubber compounds, thermoplastic materials, or ethylene-vinyl acetate with chemicals, performing heating, pressing, breaking, plasticizing, and mixing operations. The processed material can then be transported to downstream equipment such as rubber calenders, batch off coolers, rubber extruders, rubber vulcanizing presses, or other processing machines for further manufacturing of rubber or plastic products.

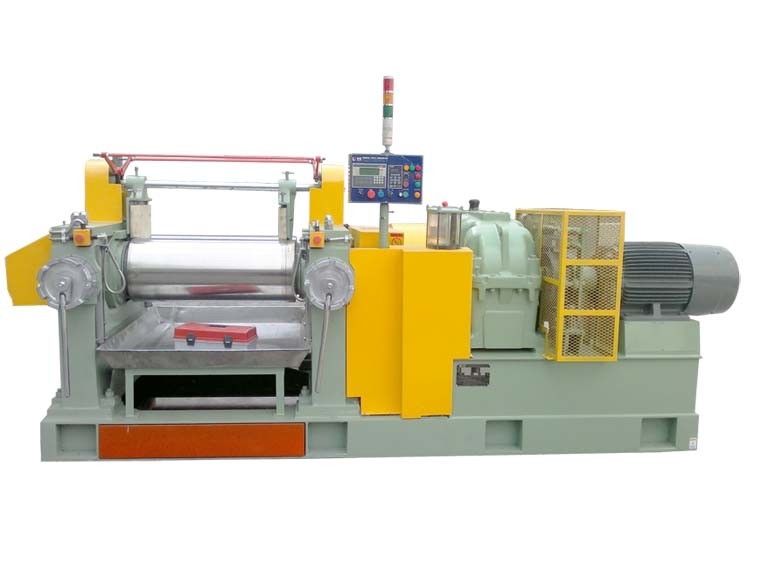

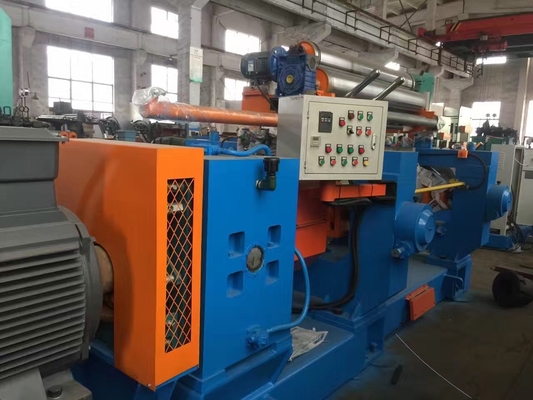

SGS Two Roll Rubber Mill machine in operation
Machine Specifications
Model Roller Size Speed Ratio Motor Power (kW) Dimensions (mm)
XK-160 φ160x320 1:1.37 5.5 1500x750x1500
XK-230(AZ) φ230x600 1:1.19 15 2800×1200×1120
XK-250(AZ) φ250x620 1:1.17 18.5 3400×1500×1650
XK-300 φ300x750 1:1.25 22 3500×1600×1700
XK-360 φ360x900 1:1.25 30 3780×1850×1750
XK-400 φ400x1000 1:1.27 37 4350×1850×1785
XK-450 φ450x1200 1:1.27 55 5200×2380×1840
XK-560(AZ) φ560x1530 φ510x1530 1:1.2 90 5845×2284×1978
XK-550B φ550x1500 1:1.22 110 5870×2475×2045
XK-610 φ610x2000 1:1.17 160 7070×2290×1840
XK-660 φ660x2130 1:1.24 245 7465×3662×2080
XK-710 φ710x2200 1:1.09 280 7500×3500×1800

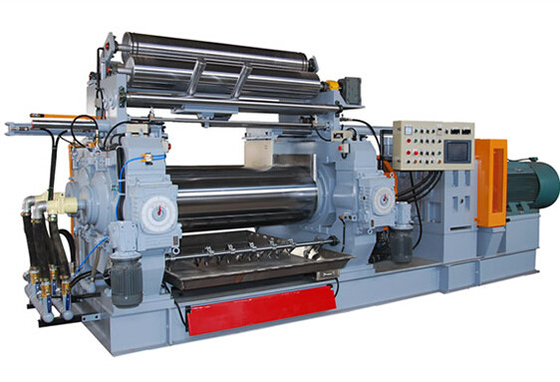

Close-up view of SGS Rubber Mixing Mill components
Key Features & Design Advantages
  • Friction gears positioned between roller and reducer prevent cooling water and condensate from entering lubricating oil trough
  • Equipped with stock blender typically found in rubber kneading machines, reducing labor intensity, mixing time, and improving working efficiency
  • Hydraulic gluing process ensures maximum operation stability
  • Rolling bearing adoption minimizes friction, while labyrinth seal eliminates inconvenience of framework oil seal replacement during maintenance
  • Welded structure construction for rack, gland, and base components
  • Integrated base design prevents severe vibration and eliminates foundation requirements, allowing free movement on foundation surfaces
  • Safety features include scram button and foot switch for maximum operator protection
  • Compliance with latest national safety standards GB20055-2006 (equivalent to European CE Standards) with roller braking length of 1/6 rotation
  • Convenient electronic control cabinet placement on base for easy adjustment and installation
  • Ready for operation once connected to dynamic power, cooling water, and reducer lubrication oil
Product Details
Highlight:

SGS Two Roll Rubber Mill Antifriction

,

SGS Two Roll Rubber Mill Antifriction Roller Bearing

,

SGS Rubber Compounding Machine XK-450
Use: Compounding Rubber And Plastics
Voltage: Customer Request
Number Of Bearings: 8
Roll Speed Ratio: 1:1 Or 1:1.27
Safety Device: Hydraulic Brake Or Emergency Button Or Foot Brake
Gap Adjustment: Manual Or Automatic
