SGS Two Roll Rubber Mill with Antifriction Roller Bearing Hydraulic Brake and Stock Blender for Rubber Compounding

Name: SGS Two Roll Rubber Mill with Antifriction Roller Bearing Hydraulic Brake and Stock Blender for Rubber Compounding
Brand: Qingdao Beishun Environmental Protection Technology Co.,Ltd
SKU: XK-450
Price: 120000.00 USD
Availability: InStock

Brand Name:	Beishun
Model Number:	XK-450
MOQ:	1set
Price:	Negotiable
Payment Terms:	T/T,L/C
Supply Ability:	30sets

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao

Certification:

ISO/CE

Use:

Compounding Rubber And Plastics

Voltage:

Customer Request

Number Of Bearings:

Roll Speed Ratio:

1:1 Or 1:1.27

Safety Device:

Hydraulic Brake Or Emergency Button Or Foot Brake

Gap Adjustment:

Manual Or Automatic

Packaging Details:

Wooden box/20GP/40GP

Highlight:

SGS Two Roll Rubber Mill Antifriction

SGS Two Roll Rubber Mill Antifriction Roller Bearing

SGS Rubber Compounding Machine XK-450

Product Description

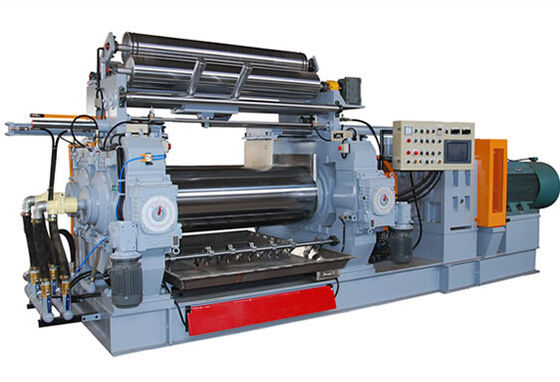

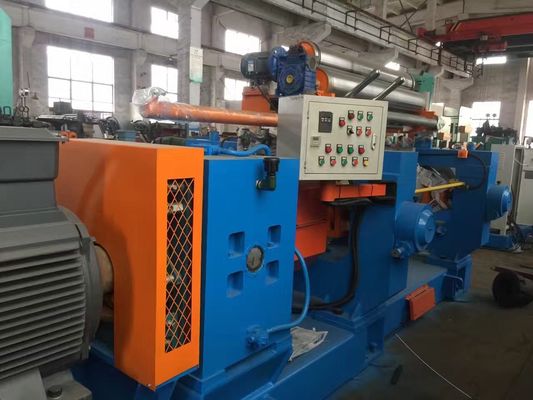

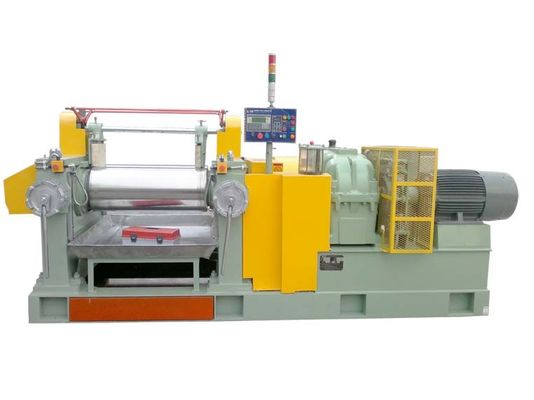

SGS Two Roll Rubber Mill Antifriction Roller Bearing Rubber Compounding Machine

Rubber Mixing Mill Machine With Antifriction Roller Bearing For Rubber Compounding

Applications

The rubber mixing mill machine is widely used in the milling process of rubbers and rubber products. This machine is primarily used for mixing raw rubber, rubber compounds, thermoplastic materials, or ethylene-vinyl acetate with chemicals, performing heating, pressing, breaking, plasticizing, and mixing operations. The processed material can then be transported to downstream equipment such as rubber calenders, batch off coolers, rubber extruders, rubber vulcanizing presses, or other processing machines for further manufacturing of rubber or plastic products.

Machine Specifications

Model	Roller Size	Speed Ratio	Motor Power (kW)	Dimensions (mm)
XK-160	φ160x320	1:1.37	5.5	1500x750x1500
XK-230(AZ)	φ230x600	1:1.19	15	2800×1200×1120
XK-250(AZ)	φ250x620	1:1.17	18.5	3400×1500×1650
XK-300	φ300x750	1:1.25	22	3500×1600×1700
XK-360	φ360x900	1:1.25	30	3780×1850×1750
XK-400	φ400x1000	1:1.27	37	4350×1850×1785
XK-450	φ450x1200	1:1.27	55	5200×2380×1840
XK-560(AZ)	φ560x1530 φ510x1530	1:1.2	90	5845×2284×1978
XK-550B	φ550x1500	1:1.22	110	5870×2475×2045
XK-610	φ610x2000	1:1.17	160	7070×2290×1840
XK-660	φ660x2130	1:1.24	245	7465×3662×2080
XK-710	φ710x2200	1:1.09	280	7500×3500×1800

Key Features & Design Advantages

Friction gears positioned between roller and reducer prevent cooling water and condensate from entering lubricating oil trough
Equipped with stock blender typically found in rubber kneading machines, reducing labor intensity, mixing time, and improving working efficiency
Hydraulic gluing process ensures maximum operation stability
Rolling bearing adoption minimizes friction, while labyrinth seal eliminates inconvenience of framework oil seal replacement during maintenance
Welded structure construction for rack, gland, and base components
Integrated base design prevents severe vibration and eliminates foundation requirements, allowing free movement on foundation surfaces
Safety features include scram button and foot switch for maximum operator protection
Compliance with latest national safety standards GB20055-2006 (equivalent to European CE Standards) with roller braking length of 1/6 rotation
Convenient electronic control cabinet placement on base for easy adjustment and installation
Ready for operation once connected to dynamic power, cooling water, and reducer lubrication oil
