Double Set Rubber Vulcanizing Press Machine PLC Control Rubber Vulcanizer

Brand Name:	Beishun
Model Number:	XLB-750X750X2/250T
MOQ:	1set
Price:	USD 10000-90000 Set
Payment Terms:	TT，L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao City

Certification:

ISO，CE

Type:

PLC Control

Heating Way:

Electrical / Oil System

Customized:

Customized

Voltage:

Customer Request

Application:

Vulcanizing To Be Final Product,Vulcanizing Rubber Products

After-sales Service Provided:

Engineers Available To Service Machinery Overseas,Video Technical Support

Supply Ability:

50 set/year

Highlight:

Double Set Rubber Vulcanizing Press Machine

Rubber Vulcanizing Press Machine PLC Control

PLC Control Rubber Vulcanizer

Product Description

Automatic Double Set Rubber Vulcanizing Press For Rubber Products

Applications
We provide a wide range of rubber vulcanizing hot press, ranging from 15 to 10,000 tons mostly made-to-order products. We provide turnkey solution and technical service, for complete machinery installation and production line planning. This rubber vulcanizing press machine is used for all kinds of vulcanizing mould, rubber and plastic mould products, and non-mould products.

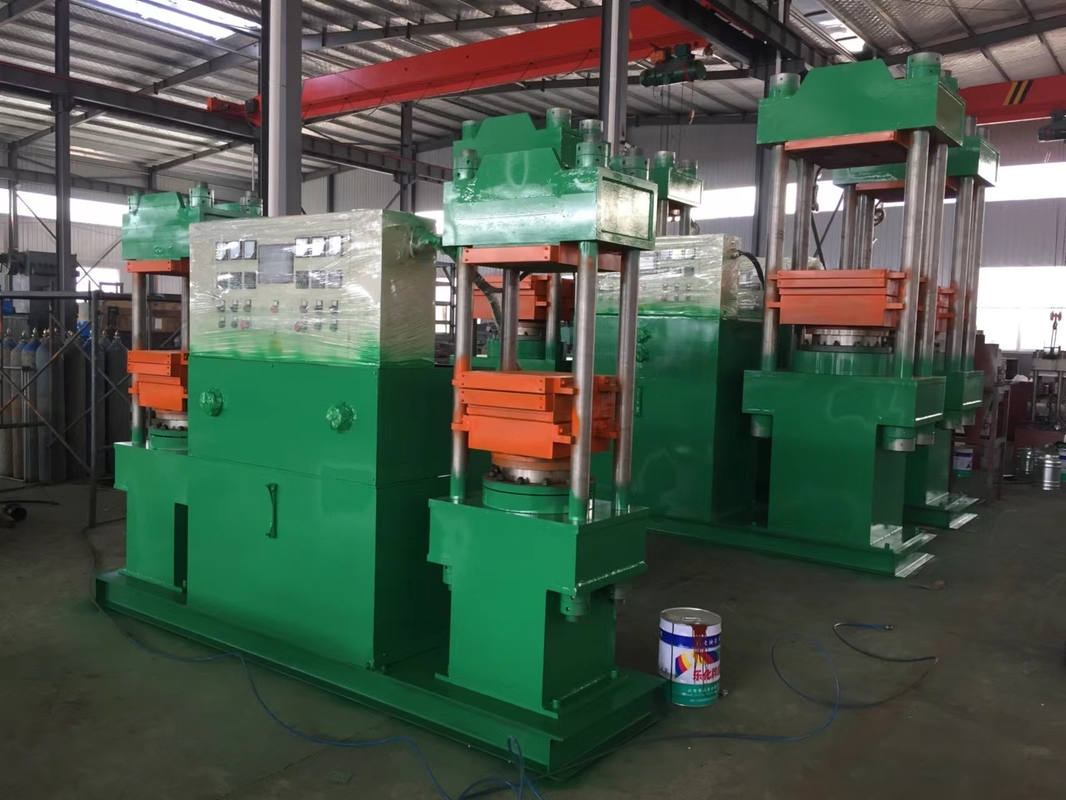

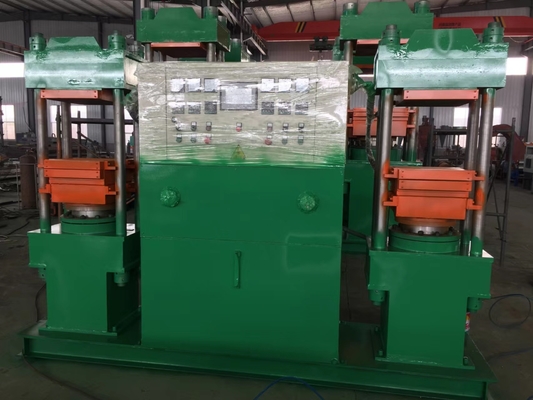

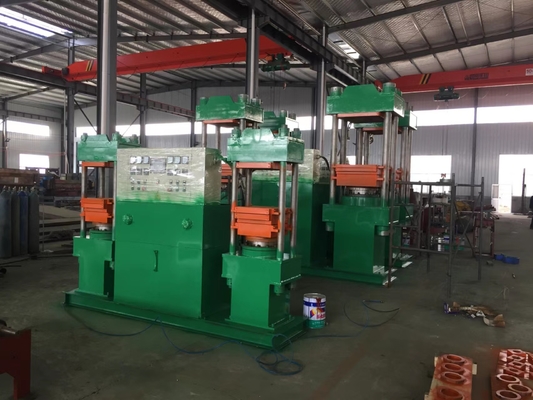

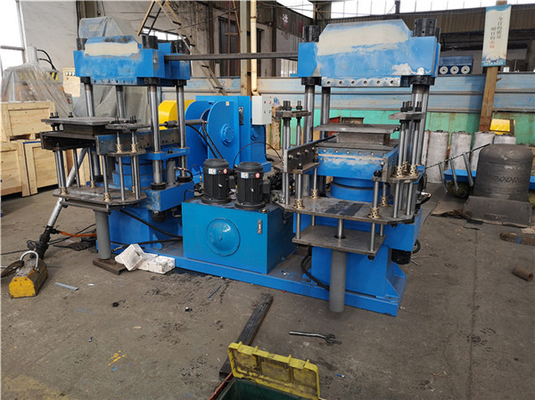

Double Set Rubber Vulcanizing Press Machine PLC Control Rubber Vulcanizer 0

Machine specification of Rubber Vulcanizing Press Machine

Model	Total Pressure (MN)	Daylight (mm)	Working Layer No.	Piston Stroke (mm)	Main Motor Power (KW)	Overall Diameter (L x W x H) (mm)
XLB-350×350×2	0.25	125	2	250	2.2	1200×580×1200
XLB-400×400×2	0.50	125	2	250	2.2	1400×500×1400
XLB-600×600×2	1.00	125	2	250	2.2	1880×820×1680
XLB-750×850×4	1.60	125	4	500	3	1730×930×2460
XLB-900×900×2	2.5	200	2	400	4	2345×960×1385
XLB-1200×1200×1	3.15	300	1	300	4	2800×1300×2300
XLB-1300×2000×1	5.60	400	1	400	8	2000×1860×2500
XLB-1500×1500×1	8.00	800	1	800	16.5	2200×2200×4300
XLB-1500×2500×1	15.00	400	1	400	11	3000×2500×3300
XLB-2000×2000×1	20.00	400	1	400	11	3600×3000×3300

Scope of application:

The rubber vulcanizing press machine can be used to make O ring, sealing parts, oil seal, auto parts, rubber crash pad, rubber air spring, key board, medical rubber parts, rubber bottle stopper, silicone wrist band, water-stop tape, bridge support/bridge bearings, rubber cable, electronics insulators etc.. This rubber vulcanizing press machine is a four-column bottom-top structure, and the main engine consists of an upper beam, a lower machine base, a movable platform, an automatic push-pull device, an oil cylinder group and a column. The plunger structure is installed in the lower base.

Features:

1. When the machine is working, the plunger moves from bottom to top to close the mold, press molding, automatic mold closing, automatic ejection, and automatic heat preservation, pressure preservation and exhaust functions to ensure product quality. This machine is equipped with hydraulic power source for single machine drive.

2. When the product is vulcanized and formed, the oil pump motor stops working, and has the automatic pressure compensation function and the oil pump shutdown delay, and the oil circuit configuration is more reasonable and reliable.

3. The deflation time, deflation times, heating temperature and vulcanization time can be set, and the operation is convenient.

4. The double-rubber vulcanizing press machine is a double-machine single-pump station structure. The oil pump is in the middle of the double machine, and the lower base is also used as an oil tank; the hydraulic and electrical systems have overload protection devices, which are safe and reliable to use.

5. The hydraulic cylinder adopts the technology imported from Germany, with reliable sealing and long service life.

6. The electrical box of this machine is fastened in the middle of the main machine, and there are double-sided operation buttons, which have functions such as curing time control, electric heating temperature control and hydraulic compensation.

7. The double vulcanizing press machine is equipped with an automatic ejection device with automatic ejection function.

8. The whole computer PLC can touch programming, customize the program, flexible operation, one person can operate two machines, and the efficiency is high.
