PLC Automatic Batch Off Rubber Cooling Machine with 1000-2000m Hanging Height for 3-16mm Rubber Sheet Thickness
Product Summary
2000m Batch Off Machine Rubber SGS Automatic Batch Off Cooler Automatic Rubber Batch Off Cooling Machine For Cooling Rubber Sheet After Mixing Application Rubber Sheet Batch Off Cooling Machine is used for cooling rubber compound sheet from rubber mixing mill machine, serving as the downstream ...
Basic Properties
Place of Origin:
Qingdao
Brand Name:
Beishun
Certification:
ISO/CE
Model Number:
XPG-600
Trading Properties
Minimum Order Quantity:
1set
Price:
Negotiable
Payment Terms:
T/T,L/C
Supply Ability:
30sets
Product Description
2000m Batch Off Machine Rubber SGS Automatic Batch Off Cooler
Automatic Rubber Batch Off Cooling Machine For Cooling Rubber Sheet After Mixing
Application
Rubber Sheet Batch Off Cooling Machine is used for cooling rubber compound sheet from rubber mixing mill machine, serving as the downstream auxiliary to the mixer or dispersion mixer. This equipment performs continuous operations including rubber slab conveying, separate applying, air cooling, drying, cutting, and wig-wag stacking for rubber strips from open mills or twin screw extruders.
Machine Specifications
| Model | XPG-600 | XPG-600 | XPG-800 | XPG-900 |
|---|---|---|---|---|
| Type of Construction | Floor or Mesh-belt or Overhead Type | |||
| Max. Rubber Sheet Width (mm) | 600 | 600 | 800 | 900 |
| Rubber Thickness (mm) | 4-10 | 2-12 | 4-10 | 6-12 |
| Temperature of Cooling Rubber Sheet Higher Than Room (℃) | 10 | 10 | 15 | 5 |
| Friction Ratio (m/min) | 3-24 | 3-24 | 3-35 | 4-40 |
| Cooling Fans Number (set) | Customer Request | |||
The Rubber Compound Film Air Cooling Batch Off Machine is an essential cooling device in rubber product manufacturing. This equipment significantly simplifies production processes for tires, cables, rubber hoses, and other rubber products by properly cooling and drying rubber sheets from mixing mills or sheet presses for optimal storage conditions.
After kneading and mixing processes, rubber material is pressed into hot rubber strips/sheets. The Rubber Batch Off Cooling Machine cools these hot rubber strips/sheets and applies release agent during the process.
Working Procedure
- Hot rubber strip/sheet intake with release agent coating
- Hanging rubber strips/sheets on festoons for cooling and drying with fans
- Stacking cooled rubber strips/sheets on pallets

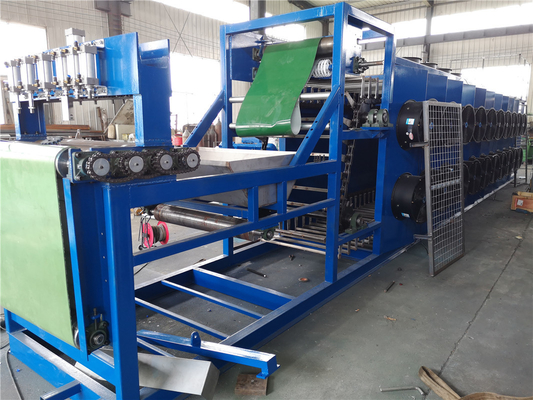

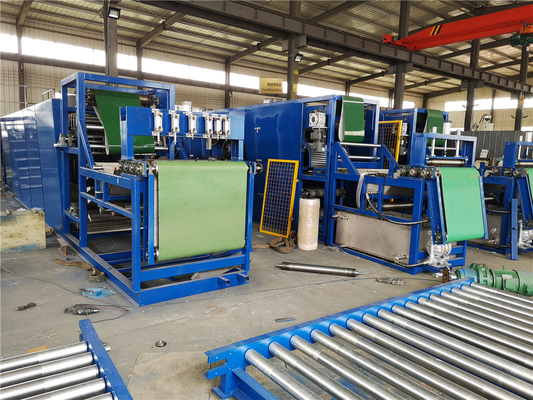

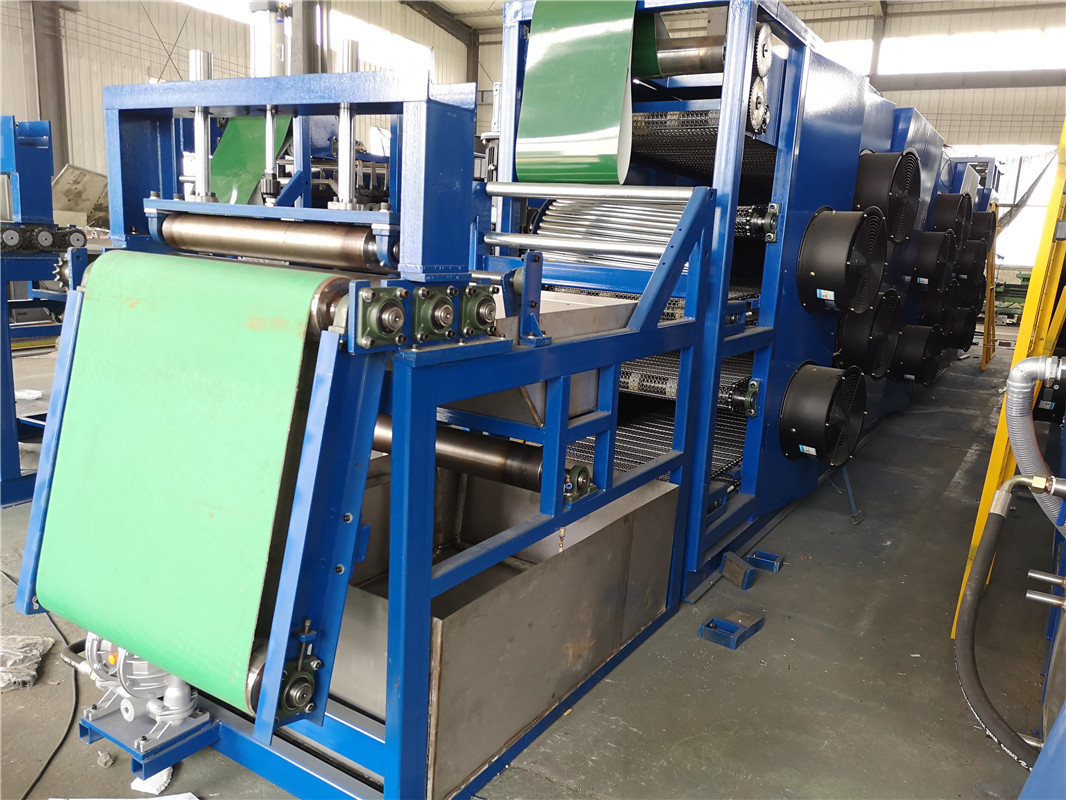

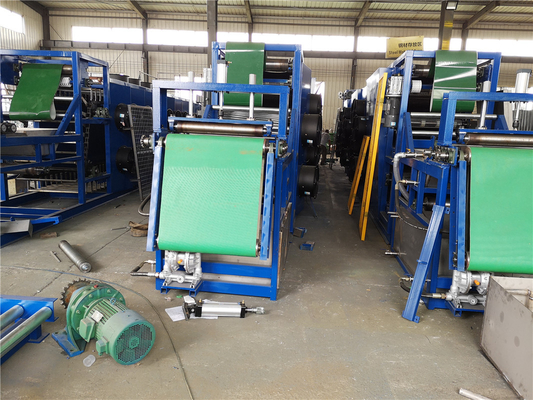

The machine body comprises inlet module, cooling device, lifting device, festoon module, down swing device, operating platform, and ladder. The electrical control system is housed in a control box with emergency control devices installed on the machine.
Key Features
- Available in three structure types: Mesh-belt, overhead, or floor-standing configurations
- Customizable high or low disposition options based on practical requirements
- High disposition batch-off line features hydraulic auto wig-wag section for neat rubber strip arrangement (strip tidy ratio ≤100mm)
- Three or five working positions for automatic material tray input/output
- Automatic rubber collecting and cutting devices
- High automation level enabling unattended operation
Frequently Asked Questions
Delivery time of the Batch Off Rubber Cooling Machine?
This is a custom-designed machine according to your specific requirements. From engineering design to production completion, delivery typically requires 35 to 45 days.
What does your factory do regarding quality control?
We implement comprehensive quality control throughout the entire production process. Every machine undergoes full assembly and rigorous testing before shipment.
What's the machine quality guarantee?
We provide a two-year quality guarantee. Our machines incorporate world-famous brand components to ensure optimal working condition and reliability.
Are you able to give installation and commissioning overseas? How long time will it take?
Yes, we provide overseas service and technical support. Customers cover installation costs. Small machines typically require 3-5 days, while larger plants may need approximately 30 days.
How can I trust you to deliver the right machine as I ordered?
We guarantee delivery of high-quality machines as discussed and confirmed in your order. We provide regular production schedule updates and machine photos throughout the manufacturing process. Our company culture emphasizes innovation, quality, integrity, and efficiency, with established partnerships with world-renowned rubber production manufacturers.
How can we go to your side?
We are located in Qingdao City, Shandong province, China, near Qingdao Liuting Airport. We provide airport pickup services for visiting clients.
Product Details
Highlight:
2000m Batch Off Machine Rubber
,Batch Off Machine Rubber SGS
,Automatic Batch Off Cooler SGS
Control Mode:
PLC Automatic
Voltage:
Customer Request
Rubber Sheet Thickness:
3-16mm
Hanging Height Of The Sheet Hanging Bar:
1000-2000m
Adapted Max. Rubber Sheet Width:
According To Customer Requirements
Application:
Used For Cooling, Folding And Depositing The Rubber Strip That Comes From The Open Mills Or Twin Screw Extruder Or Rubber Calendar.
