Automatic PLC Control Electric Driven Batch Off Rubber Cooling Machine for 16mm Rubber Sheet Thickness
Product Summary
PLC Batch Off Rubber Cooling Machine Compound Film Batch Off Cooler Air Drying Automatic PLC Rubber Compound Film Batch Off Cooler Water Cooling Air Drying Type Application Rubber Sheet Batch Off Cooling Machine is used for cooling rubber compound sheet from rubber mixing mill machine, serving as ...
Basic Properties
Place of Origin:
Qingdao
Brand Name:
Beishun
Certification:
ISO/CE
Model Number:
XPG-700
Trading Properties
Minimum Order Quantity:
1set
Price:
Negotiable
Payment Terms:
T/T,L/C
Supply Ability:
30sets
Product Description
PLC Batch Off Rubber Cooling Machine Compound Film Batch Off Cooler Air Drying
Automatic PLC Rubber Compound Film Batch Off Cooler Water Cooling Air Drying Type
Application
Rubber Sheet Batch Off Cooling Machine is used for cooling rubber compound sheet from rubber mixing mill machine, serving as the downstream auxiliary to the mixer or dispersion mixer. This equipment performs cooling, folding, and depositing of rubber strips from open mills or twin screw extruders. It is designed for continuous operations including rubber slab conveying, separate applying, air cooling, drying, cutting, and wig-wag stacking.
Machine Specifications
| Model | XPG-600 | XPG-600 | XPG-800 | XPG-900 |
|---|---|---|---|---|
| Type of Construction | Floor or Mesh-belt or Overhead Type | |||
| Max. Rubber Sheet Width (mm) | 600 | 600 | 800 | 900 |
| Rubber Thickness (mm) | 4-10 | 2-12 | 4-10 | 6-12 |
| Temperature of Cooling Rubber Sheet Higher Than Room (℃) | 10 | 10 | 15 | 5 |
| Friction Ratio (m/min) | 3-24 | 3-24 | 3-35 | 4-40 |
| Cooling Fans Number (set) | Customer Request | |||
Component Description

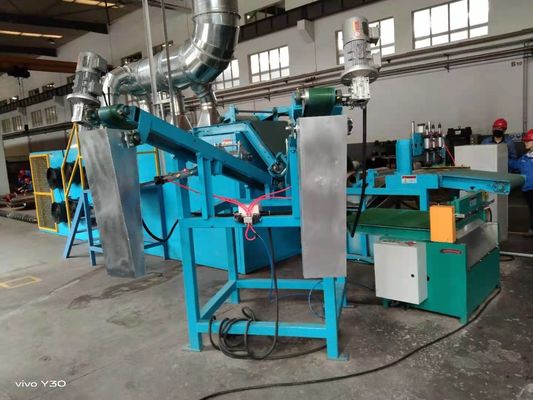

1. Take In Device
Used to apply pressure to the film, controlled by cylinder with fluctuation for convenient operation. Taking speed can be manually controlled and adjusted for ascension. The device uses conveyor technology with a frequency governor-controlled transmission system.
2. Soak Device
Equipped with triplet, manual rotary valve and pressure cylinder. Adjusts pressed roll through cylinder control via manual rotary valve to compress discontinuous film into continuous sheets.
3. Leaching Plasma Device
Functions as film conveying equipment for immersing and applying isolation agent. Equipped with cooling water pipe for continuous cooling liquid isolation to control temperature.
4. Take Up Device
This device uses conveyor belt to transport isolation liquid film to the air cooling section for gripping.

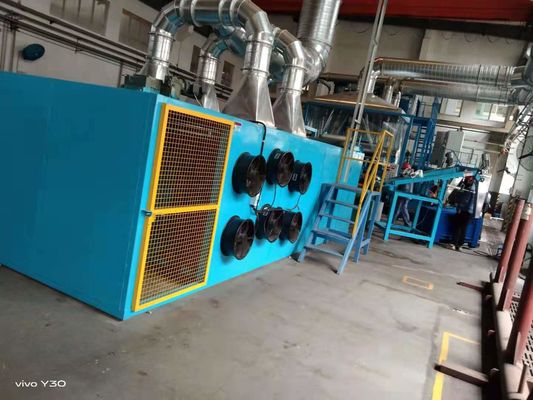

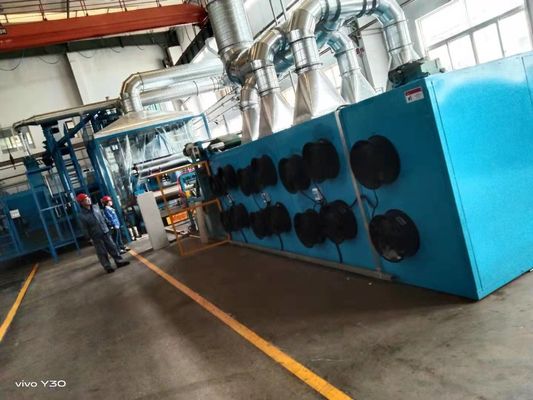

5. Wind Cooling Device
Constructed from frame, cooling fans, hook rail and hang lever conveyor. Utilizes 20 axial fans to meet film cooling requirements. Hang levers installed on taper pins hold the film securely.
6. Conveying Laminated Device
Processes film into laminated measures with continuous folding in film seat.
7. Electrical Control System
- All wires controlled by PLC for easy operation and reliable quality
- Production line speed adjustable via inverter to match film cooling line speed with host
- Fan control through group control with over-current protection circuit breaker for each motor
Frequently Asked Questions
1. Delivery time of the Batch Off Rubber Cooling Machine?
This is a specially designed machine according to your specific requirements. From engineering design to production completion, it requires approximately 35 to 45 days.
2. What does your factory do regarding quality control?
We prioritize quality control from beginning to end of production. Every machine undergoes full assembly and careful testing before shipment.
3. What's the machine quality guarantee?
Quality guarantee period is two years. We use world-famous brand components to maintain optimal machine working condition.
4. Are you able to give installation and commissioning overseas? How long time will it take?
Yes, we provide overseas service and technical support (customer covers installation costs). Small machines typically take 3-5 days, while larger plants require about 30 days.
5. How can I trust you to deliver the right machine as I ordered?
We guarantee delivery of quality machines as discussed and confirmed in orders. We provide regular production schedules and machine photos during manufacturing. Our company culture emphasizes innovation, quality, integrity and efficiency, with established cooperation with world-renowned rubber manufacturers.
6. How can we go to your side?
We are located in Qingdao City, Shandong province, China, near Qingdao Liuting Airport. We provide airport pickup services.
Product Details
Highlight:
PLC Batch Off Rubber Cooling Machine SGS
,ISO Batch Off Rubber Cooling Machine SGS
,SGS rubber Compound Film Batch Off Cooler
Type:
Batch Off Cooling Machine
Key Selling Points:
Automatic
Driven Type:
Electric
Voltage:
Customer Request
Rubber Sheet Thickness:
3-16mm
Adapted Max. Rubber Sheet Width:
According To Customer Requirements
