Electric Nip Adjustment Four Roll Calender with Chilled Cast Iron Rollers and Automatic Lubrication System

Brand Name:	Beishun
Model Number:	XY-3-1400
MOQ:	1set
Price:	Negotiable
Packaging Details:	Wooden box/20GP/40GP
Payment Terms:	T/T,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao

Certification:

ISO/CE

Rolls:

2 Or 3 Or 4

Roller Type:

I Type, F Type (Reverse L), S Type

Nip Adjustment:

Electric Or Manual

Roll Material:

Chilled Cast Iron

Gear Box:

Hard Gear Reducer

Lubrication Way:

Automatic

Supply Ability:

30sets

Highlight:

Electric Rubber Calender Machine SGS

SGS Electric Rubber Calender Machine

ISO Rubber Calendering Machine Fabric Printing Blanket

Product Description

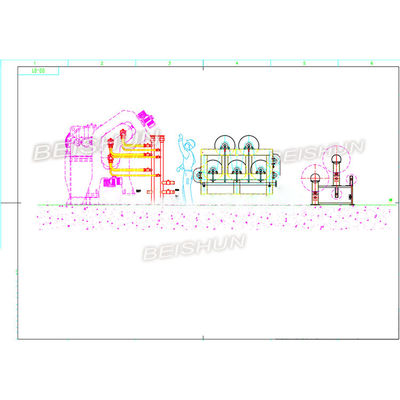

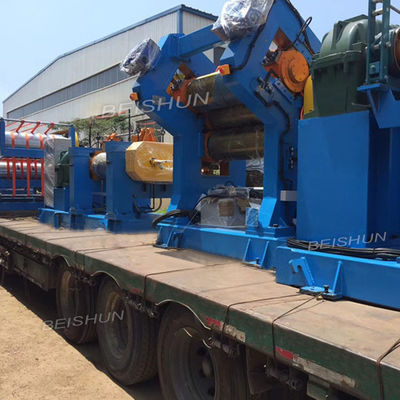

Electric Rubber Calender Machine - Four Roll Calender for Fabric Printing Blanket

The XY-3-1400 Rubber Fabric Printing Blanket Three Four Roll Calender is designed for precision calendering operations in rubber and plastics manufacturing, offering superior fabric fraction, coating, sheeting, and composite capabilities.

Applications

Two, Three, and Four roll rubber calenders are engineered for calendering rubber or plastics, fabric fraction and coating, sheeting, and composite manufacturing of rubber or plastic materials.

Machine Specifications

Model	XY-3-630	XY-3-900	XY-3-1120	XY-3-1400	XY-3-1500	XY-3-1730	XY-3-2130	XY-3-2430
Roller Diameter x Length (mm)	230x630	360x900	360x1120	400x1400	450x1500	610x1730	710x2130	810x2430
Friction Ratio	1:1:1 1:1.42:1	1:1:1 0.733:1:1 0.733:1:0.733	1:1:1	1:1:1 1:1.383:1.383 1:1.383:1	1:1:1 1:1.5:1	1:1:1 1:1.4:1	1:1:1	1:1:1 1:1.5:1
Middle Roller Linear Speed (r/min)	0.8-8	3-21.06	1.5~15	3-26.39	2.62-26.2	5.4-54	8-50	2-20
Nip Adjustment Range (mm)	0-7	0-10	0-10	0-10	0-6	0-20	0-20	0.5-25
Min. Thickness of Product (mm)	0.2	0.2	0.2	0.2	0.2	0.15	0.15	0.5
Products Width (mm)	100-500	700	920	1200	1400	1530	1900	2150
Motor Power (KW)	7.5	30	45	55	75	132	185	220
Weight (t)	~2.6	~11		~22	~26	~52	~67	~94

Working Conditions

Equipment operates optimally at temperatures between 7-40°C with maximum relative humidity of 95%.

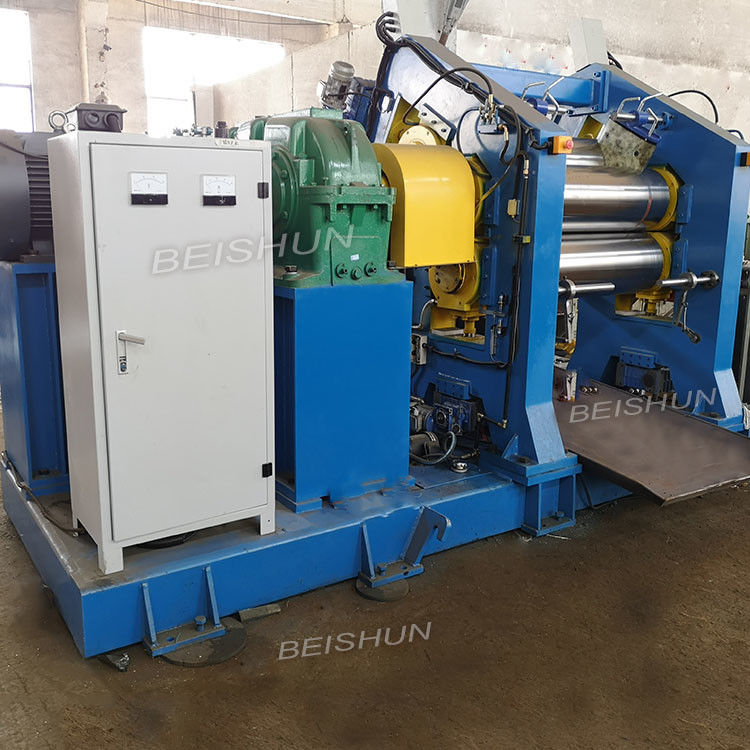

Structural Features

Rack

Fabricated through welding with comprehensive annealing treatment and precision machine tool processing. Features strong rigidity, minimal deformation, and smooth, wear-resistant sliding surfaces.

Bedplate

Welded construction with annealing treatment and subsequent machine processing for high strength and dimensional stability.

Rollers

Material: Chilled Alloy Cast Iron LTH-H
Hardness: 68-72HSD
Chilling Layer: 10-25mm

Host Bearing

Equipped with Swedish SKF bearings to ensure superior calendering accuracy and long-term reliability.

Bearing Bedplate

Cast construction with tempering processing and integrated lubricating oil holes. Features aluminum sealing shells with maze ring oil sealing to prevent leakage.

Nip Adjustment Device

Utilizes upper and down roller adjustment capabilities. Supports simultaneous adjustment at both ends as well as individual end adjustment for precise control.

Transmission Type

Motor-driven speed reducer system using stick pin couplings and friction ratio to drive roller rotation.

Speed Reducer

Type: One motor input with single shaft output
Gear: Hard-tooth type with airlight immersing oil speed reducer
Noise Level: ≤78dB
Safety Factor: SA≥2 times

Main Motor

Frequency motor system with variable-frequency governor for precise motor rotation speed adjustment.

Lubrication System

Complete bearing lubrication system includes oil tank with flow-adjustable oil temperature gauge, condenser, filter, and flow control. Maintains optimal lubrication oil temperature and cleanliness with integrated lubricating oil pipes.

Stock Guide

Axis Towards Moving Type construction with high-quality SS41 welding and MC Nylon material for durability.

Emergency Brake Device

Electric Hydraulic Block Braking Type with exceptional stopping capability (roller movement ≤1/4 cycle after braking). Emergency buttons located around body frame with front and back mushroom-style emergency buttons for quick access.

Electrical Controlling Device

Controller Box: Surface baking finishes with pillar type design
Operation Box: Operating controlling return circuit for reliable performance
