Electric Heating Rubber Vulcanizing Press Machine with 0-25MPa Pressure Range and Precise Temperature Control
Product Summary
Electric Heating Rubber Mold Press Machine Double-station flat plate vulcanizing machine with pressure range of 0-25MPa and precise temperature control for rubber gasket manufacturing. Product Overview This advanced double-station flat plate vulcanizing machine features innovative heat retention ...
Basic Properties
Place of Origin:
Qingdao
Brand Name:
Beishun
Certification:
ISO/CE
Model Number:
XLB-1500×1500×2
Trading Properties
Minimum Order Quantity:
1set
Price:
Negotiable
Payment Terms:
T/T,L/C
Supply Ability:
30sets
Product Description

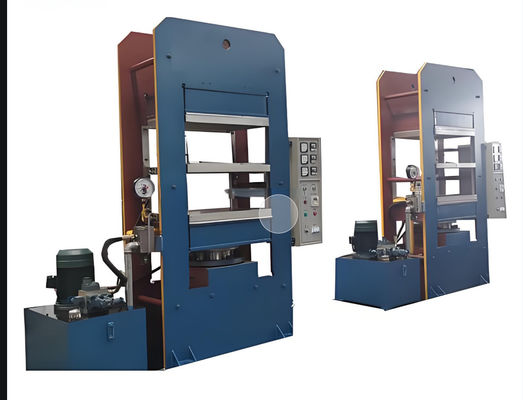

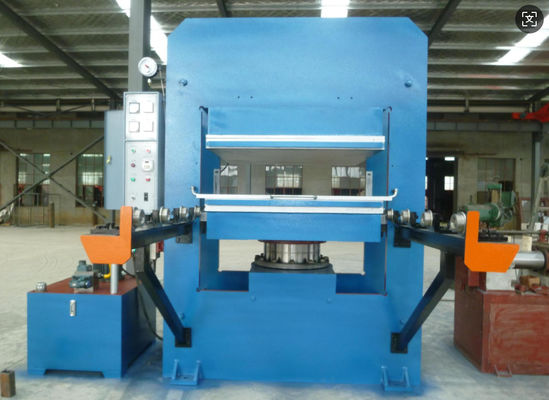

Electric Heating Rubber Mold Press Machine
Double-station flat plate vulcanizing machine with pressure range of 0-25MPa and precise temperature control for rubber gasket manufacturing.
Product Overview
This advanced double-station flat plate vulcanizing machine features innovative heat retention technology and precision engineering for efficient rubber product manufacturing. The machine comprises a fixed platform, power cabinet, heating platform, and hydraulic system with advanced limiting mechanisms for enhanced operational precision.
Key Features
- Composed of hot plates, platforms, hydro-cylinder, hydraulic station and PLC electrical control system
- Optional push-pull mold device for easy mold movement
- Hot plates made from 35# steel with double scale rolling and automatic steam temperature control
- Frame constructed from Q235 steel plates with mechanical ball blast rust removal and stress relief treatment
- Hydro-cylinder uses ZG270-500 material with double sealing ring and dustproof ring for extended service life
- PLC automatic control system with manual operation option
- Rigorous 24-hour pressure testing before shipment
- Custom non-standard designs available according to specific requirements
Technical Specifications
| Type | Total Pressure (MN) | Plate Size (mm) | Daylight (mm) | Layer No. | Piston Stroke (mm) | Plate Unit Area Pressure | Main Motor Power (kw) | Overall Dimension (L×W×H mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| XLB-DQ1200×1200×2 | 315t | 1200×1200 | 200 | 2 | 400 | 22 | 3 | 1685×1320×2450 | 9500 |
| XLB-DQ1300×2000×1 | 560t | 1300×2000 | 400 | 1 | 400 | 21.5 | 8 | 2000×1860×2500 | 17000 |
| XLB-Q1200×2500×1 | 750t | 1200×2500 | 400 | 1 | 400 | 25 | 9.5 | 2560×1700×2780 | 20000 |
| XLB-Q1500×2000×1 | 1000t | 1500×2500 | 400 | 1 | 400 | 33.5 | 11 | 2810×1550×3325 | 24000 |
| XLB-Q2000×3000×1 | 1800t | 2000×3000 | 400 | 1 | 400 | 30 | 26 | 2900×3200×2860 | 66000 |
| XLB-Q1400×5700×1 | 2800t | 1400×5700 | 400 | 1 | 400 | 35 | 43.5 | 2400×5800×3600 | 110000 |
Applications & Capabilities
This high-quality rubber vulcanizing press machine is designed to withstand demanding industrial applications while handling temperatures from 0-300℃ and pressure ranges of 0-25MPa. Ideal for vulcanizing rubber belts, mats, and various industrial rubber products with consistent results through advanced PLC control systems.
Quality Assurance: Manufactured in Qingdao, China with CE and ISO certification. Features 45-day delivery, T/T or L/C payment options, and minimum order quantity of one piece. Annual production capacity of 30 sets.
Frequently Asked Questions
- Factory Location: Qingdao city with airport pickup service available for visiting clients
- Quality Control: CE, ISO, SGS certified with 1-year guarantee and lifetime maintenance
- Payment Terms: 30% deposit by T/T, balance against shipping documents or L/C at sight
- Custom Design: Professional development team available for custom product requirements
- Delivery Time: 25-35 days for specially designed machines
- Quality Assurance: Comprehensive quality control with full assembly and testing before shipment
- Warranty: 1-year warranty using world-famous brand components
- Overseas Service: Installation and commissioning available with cost coverage by customer
Packaging & Shipping
The rubber vulcanizing press machine is securely packed in strong wooden crates with protective cushioning. Includes user manual and certifications. Shipped via reliable carriers with tracking provided. Processing takes 3-5 business days with international customers subject to applicable customs fees.
Product Details
Highlight:
Electric Heating Rubber Mold Press Machine
,25MPa Rubber Mold Press Machine
,Rubber Gasket Manufacturing Mold Press Machine
Temperature Range:
0-300℃
Heating Mode:
Electric Heating
Material:
Steel
Cylinder Stroke:
200mm
Name:
Rubber Vulcanizing Press Machine
Control System:
PLC
Certificate:
CE
Pressure Range:
0-25MPa
