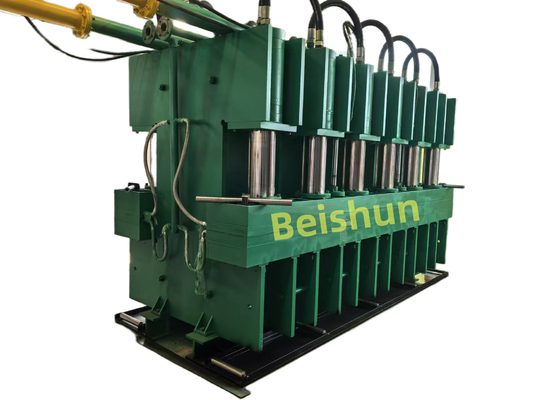

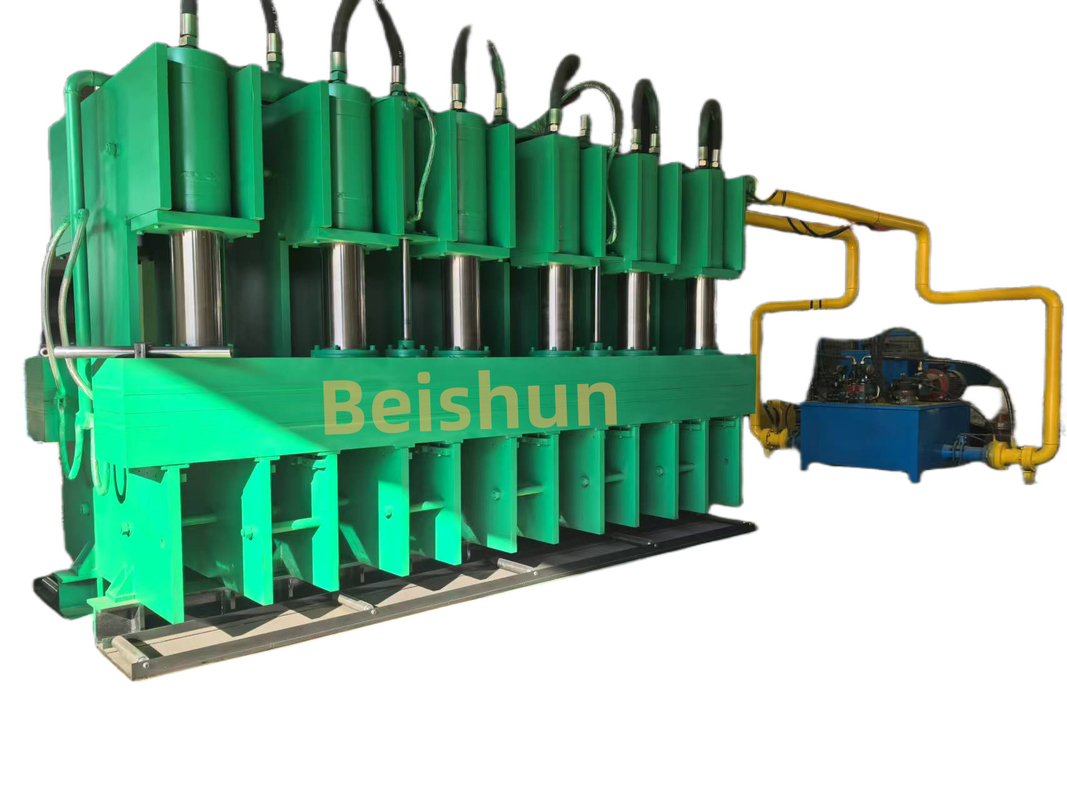

Double Jaw Rubber Elevator Handrail Manufacturing Machine / Tire Tread Vulcanizing Molding Machine

Double Jaw Rubber Elevator Handrail Manufacturing Machine / Tire Tread Vulcanizing Molding Machine

Vulcanizing press machine introduction:

1. • A Rubber Elevator Handrail Vulcanizing press is a specialized machine used in the manufacturing process of elevator handrails. The vulcanization process involves the application of heat and pressure to rubber materials. Vulcanization causes a chemical reaction in the rubber, cross - linking the polymer chains. This cross - linking significantly improves the physical and mechanical properties of the rubber, such as its strength, elasticity, and resistance to wear and tear.
   • In the case of elevator handrail production, the rubber is molded into the desired shape of the handrail and then subjected to the vulcanizing process. The press provides the necessary pressure to ensure proper shaping and curing of the rubber handrail.
2. Components of the Press
   • Heating System:
     • It usually consists of heating elements such as electric heaters. These heaters are designed to evenly distribute heat throughout the mold cavity where the rubber handrail is placed. The temperature control is crucial, and modern vulcanizing presses often have precise temperature - control mechanisms. For example, the temperature can be adjusted within a range of 140 - 180 degrees Celsius, depending on the type of rubber and the specific requirements of the handrail.
   • Pressure System:
     • The pressure system includes hydraulic or mechanical components. Hydraulic systems are more common due to their ability to provide a high and consistent level of pressure. The pressure can range from a few tons to tens of tons, depending on the size and complexity of the handrail. For instance, a typical pressure for a medium - sized elevator handrail vulcanizing press might be around 10 - 15 tons.
   • Mold and Platen:
     • The mold is designed according to the specific shape and dimensions of the elevator handrail. It is usually made of high - quality steel to withstand the high temperature and pressure during vulcanization. The platens are the surfaces that apply pressure to the mold and the rubber inside. They need to be flat and parallel to ensure even pressure distribution.
3. Benefits of Using a Vulcanizing Press for Elevator Handrail Production
   • Enhanced Durability:
     • Vulcanized rubber handrails have better resistance to abrasion, ozone, and UV radiation. This means that they can withstand the daily wear and tear caused by passengers using the elevator over a long period. For example, in a high - traffic commercial building, a vulcanized handrail can maintain its integrity and appearance for years without significant degradation.
   • Improved Safety:
     • The vulcanization process ensures that the rubber handrail has the right elasticity and grip. This provides a secure hold for passengers, reducing the risk of slips and falls. The smooth and consistent surface of the vulcanized handrail also eliminates sharp edges or irregularities that could cause harm.
   • Customizable Shapes and Designs:
     • With the use of different molds, the vulcanizing press allows for the production of elevator handrails in a variety of shapes and designs. This enables manufacturers to meet the specific aesthetic and functional requirements of different elevator installations, such as curved handrails for escalators or custom - shaped handrails for high - end architectural elevators.
4. Operation and Maintenance
   • Operation:
     • Before starting the vulcanizing process, the rubber material is prepared and placed into the mold. The operator then sets the appropriate temperature and pressure parameters according to the rubber type and handrail design. The vulcanization cycle typically lasts from a few minutes to half an hour, depending on factors such as the thickness of the rubber and the desired degree of cross - linking.
   • Maintenance:
     • Regular maintenance is essential to ensure the proper functioning of the vulcanizing press. This includes checking and cleaning the heating elements to prevent overheating due to dirt or debris accumulation. The pressure system should be inspected for any leaks in the hydraulic lines or mechanical components. The molds also need to be cleaned and maintained to ensure accurate shaping of the handrails. Lubrication of moving parts is another important aspect of maintenance to reduce friction and wear.
