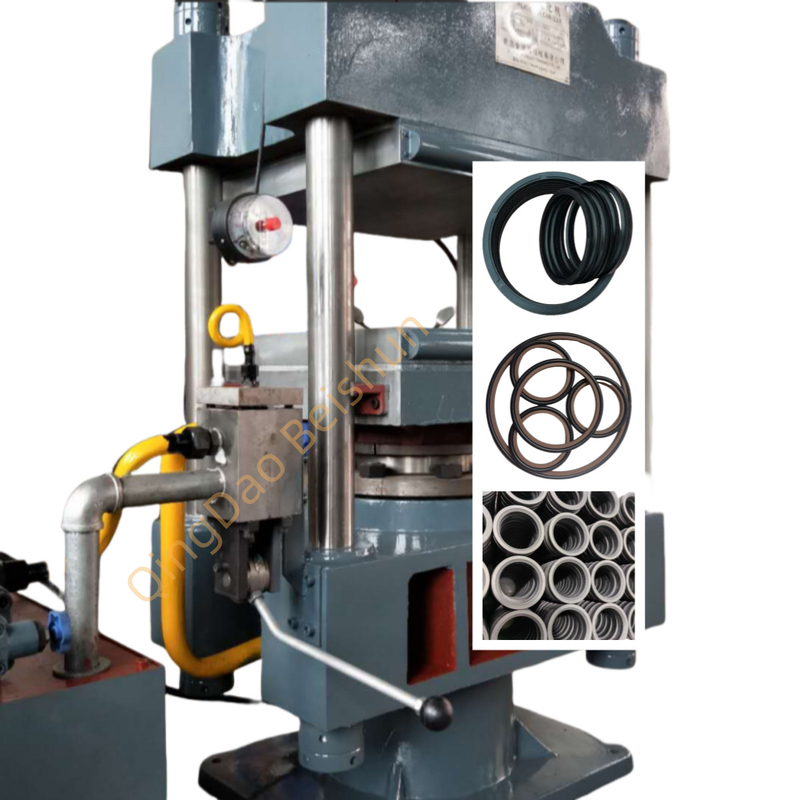

Steam Heated Rubber Plate Vulcanizer with High Pressure O-Ring Seal Making Machine

1. Material Preparation and Loading
   • The raw material, usually a rubber compound, is first prepared. The rubber compound is carefully formulated to have the necessary properties such as elasticity, chemical resistance, and temperature stability. The prepared material is then loaded into the machine's hopper or feeding system.
2. Molding Process
   • The machine uses a high - pressure molding system. The pressure is applied through a hydraulic or pneumatic mechanism. The rubber material is forced into a precisely - shaped mold cavity that determines the cross - sectional shape and diameter of the O - ring. The high - pressure molding ensures that the rubber fills the mold completely and precisely, resulting in a consistent shape and size.
3. Curing and Vulcanization
   • During the molding process, heat is also applied to the mold. The combination of heat and pressure causes the rubber to undergo vulcanization. Vulcanization is a chemical process that cross - links the rubber molecules, enhancing the seal's durability, elasticity, and resistance to high - pressure conditions. The temperature and pressure are carefully controlled and maintained for a specific period, depending on the type of rubber and the desired properties of the O - ring.

1. Frame and Body
   • The machine's frame provides a stable and rigid structure. It is usually made of heavy - duty steel to withstand the high - pressure forces during operation. The body houses the various components such as the molding unit, pressure system, and heating elements.
2. Molding Unit
   • The molding unit consists of upper and lower molds. The molds are precision - machined to ensure accurate shaping of the O - ring. They have a circular groove with the desired cross - sectional dimensions of the O - ring. The molds may also have channels for the circulation of heating or cooling media to control the temperature during the vulcanization process.
3. Pressure System
   • A high - pressure pressure system is a crucial part of the machine. In a hydraulic system, it includes a hydraulic pump, high - pressure cylinders, and a system of valves. The hydraulic pump pressurizes the hydraulic fluid, which is then used to drive the cylinders and apply the necessary force to the molds. In a pneumatic system, a high - pressure air compressor and pneumatic cylinders are used. The pressure can be adjusted according to the specific requirements of the O - ring manufacturing process.
4. Heating System
   • The heating system is responsible for providing the heat required for vulcanization. It typically includes electrical heating elements, temperature sensors, and a temperature - control unit. The heating elements are usually located in or around the molds. The temperature sensors monitor the temperature inside the molds and send feedback to the temperature - control unit, which adjusts the power to the heating elements to maintain a consistent temperature throughout the vulcanization process.
5. Control System
   • A modern high - pressure O - ring seal making machine is equipped with an advanced control system. The control system allows operators to set and monitor parameters such as pressure, temperature, and curing time. It often has a touch - screen interface for easy operation. The control system also includes safety features such as emergency stop buttons, over - temperature alarms, and over - pressure protection to ensure the safety of the machine and operators.

1. High - Quality Seals
   • The high - pressure molding and precise temperature - pressure control during vulcanization result in O - ring seals with excellent dimensional accuracy and high - quality physical properties. These seals can withstand high - pressure environments without deformation or leakage.
2. Consistency and Reproducibility
   • The machine's precise control system enables the production of O - rings with consistent quality. The ability to accurately replicate the manufacturing process ensures that each O - ring has the same properties and performance characteristics, which is crucial for applications where reliability and uniformity are essential.
3. Efficient Production
   • It allows for high - volume production of O - rings. The automated control and high - speed molding process can significantly reduce the production time per unit, increasing the overall efficiency of the manufacturing process.

1. Oil and Gas Industry
   • In the oil and gas industry, high - pressure O - ring seals are used in pipelines, wellheads, and various downhole tools. These seals must withstand extremely high - pressure conditions and harsh chemical environments. The high - pressure O - ring seal making machine is used to produce seals that can meet these demanding requirements.
2. Aerospace Applications
   • In aerospace, O - ring seals are used in fuel systems, hydraulic systems, and environmental control systems. The seals need to perform under high - pressure and extreme temperature conditions. The machine - produced high - quality O - ring seals are essential for the safety and reliability of aerospace components.
3. Automotive High - Pressure Systems
   • In automotive high - pressure systems such as turbochargers, fuel injection systems, and high - performance braking systems, O - ring seals are used to prevent leakage. The high - pressure O - ring seal making machine produces seals that can handle the elevated pressures and temperatures in these systems.
