ISO Standard 55L Rubber Mixing Chamber Rubber Mixer For Butyl Rubber / Natural Rubber / Styrene Butadiene Rubber Mixing

Brand Name:	BeiShun
Model Number:	X(S)N-55×30
MOQ:	1 set
Price:	Negotiable
Packaging Details:	Wooden box /Container
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao City

Certification:

CE/ISO

Heating Method:

Electric Heating

Motor Power:

Tilting Angle:

Mixing Time:

8-10 Minutes

Word Volume:

Mixing Volume:

Discharge Method:

Hydraulic Tilt

Mixing Method:

Banbury Type

Machine Type:

Rubber Kneader

Capacity:

Rotor Type:

Two Wing Rotor/four Wing Rotor

Top Bolt Type:

Double Cylinder Hydraulic Drive

Cutting System:

Hot Air Cutting System

Supply Ability:

20 sets per month

Highlight:

Butyl Rubber Mixer

Natural Rubber Mixer

Styrene Butadiene Rubber Mixer

Product Description

ISO Standard 55L Rubber Mixing Chamber Rubber Mixer For Butyl Rubber/Natural Rubber/Styrene Butadiene Rubber Mixing

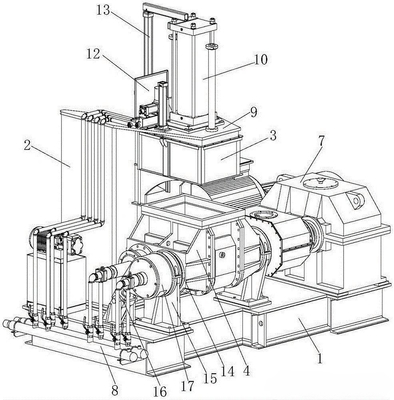

Rubber Internal mixer - basic structure

The closed rubber mixer is called internal mixer for short, which is mainly used for rubber plasticizing and mixing. Internal mixer is a machine with a pair of rotors of specific shape and relative rotation, which plasticizes and mixes polymer materials intermittently in a closed state with adjustable temperature and pressure. It is mainly composed of internal mixer, rotor, rotor sealing device, feeding and pressing device, unloading device, transmission device and machine base.

Basic structure

Internal mixer generally consists of internal mixer, two relatively rotating rotors, upper and lower push bolts, temperature measurement system, heating and cooling system, exhaust system, safety device, discharge device and recording device. The surface of the rotor has spiral ridges, and the number of ridges is two, four, six, etc. The cross-sectional geometric shapes of the rotor are triangular, cylindrical or elliptical, and there are two types: tangential type and meshing type. The temperature measurement system is composed of thermocouples, which are mainly used to measure the temperature change in the internal mixer during mixing; the heating and cooling system is mainly to control the temperature of the rotor and the inner wall surface of the mixing chamber.

Technical Parameters:

Model	X(S)N - 10×32	X(S)N - 20×32	X(S)N - 35×30	X(S)N - 55×30	X(S)N - 75×30	X(S)N - 110×	X(S)N - 150
Total Volume	25L	45L	75L	125L	180L	250L	325L
Working Volume	10L	20L	55L	75L	110L	150L	35L
Driving Motor	15KW	30KW	55KW	75KW	110KW	185KW	220KW
Tilting Angle	140°	140°	140°	140°	140°	140°	140°
Rotor Speed (Front/Rear)	32/23.5 r/min	32/25 r/min	30/24.5 r/min	30/24.5 r/min	30/24.5 r/min	30/24.5 r/min	30/24.5 r/min
Dimension (LWH) (mm)	258013002280	263015202550	320019002950	328019303070	333026203340	393030003660	420033003900
Weight (KG)	3300	4500	6500	7800	10500	14500	19500

Function of rubber internal mixer:

The purpose of rubber plasticization is to shorten the macromolecular chain of rubber under mechanical, thermal, chemical and other effects, so that the rubber temporarily loses its elasticity and increases its plasticity to meet the process requirements in the manufacturing process.

For example: to make the compounding agent easy to mix, easy to calender and press out, the molded pattern is clear, the shape is stable, increase the fluidity of the pressed and injected rubber, make the rubber easy to penetrate into the fiber, and improve the solubility and adhesion of the rubber.

Of course, some low-viscosity and constant-viscosity rubbers are sometimes not necessarily plasticized, domestic standard granular rubber, standard Malaysian rubber (SMR).

The plasticization of raw rubber by internal mixer belongs to high-temperature plasticization, with the lowest temperature above 120℃, generally between 155℃-165℃.

Raw rubber is subjected to high temperature and strong mechanical action in the internal mixer cavity, which causes severe oxidation and can obtain ideal plasticity in a short time. Therefore, the main factors affecting the internal mixer for raw rubber plasticization are:

1. Equipment technical performance, such as rotation speed, etc.,

2. Process conditions, such as time, temperature, wind pressure and capacity, etc.

The plasticization of rubber is closely related to its chemical composition, molecular structure, molecular weight and molecular weight distribution. Due to the different characteristics of natural rubber and synthetic rubber in structure and performance, it is generally easier to plasticize natural rubber, while it is more difficult to plasticize synthetic rubber. As for synthetic rubber, isoprene rubber and chloroprene rubber are close to natural rubber, followed by styrene-butadiene rubber and butyl rubber, and nitrile rubber is the most difficult.

The plasticity of raw rubber is related to the difficulty of the entire manufacturing process of the product, and directly affects the physical and mechanical properties of the vulcanized rubber and the performance of the product.

If the plasticity of raw rubber is too high, the physical and mechanical properties of the vulcanized rubber will be reduced. If the plasticity of the raw rubber is too low, it will cause difficulties in the subsequent processing, making it difficult to mix the rubber evenly, and the semi-finished product surface is not smooth when calendering and extruding, and the shrinkage rate is large. It is difficult to control the size of the semi-finished product. During calendering, the rubber is also difficult to rub into the fabric, causing the rubber curtain fabric to peel off, which greatly reduces the adhesion between the fabric layers.

Uneven plasticity will cause inconsistency in the process performance and physical and mechanical properties of the rubber, and even affect the inconsistent performance of the product. Therefore, correctly mastering the plasticity of raw rubber is an issue that cannot be ignored.

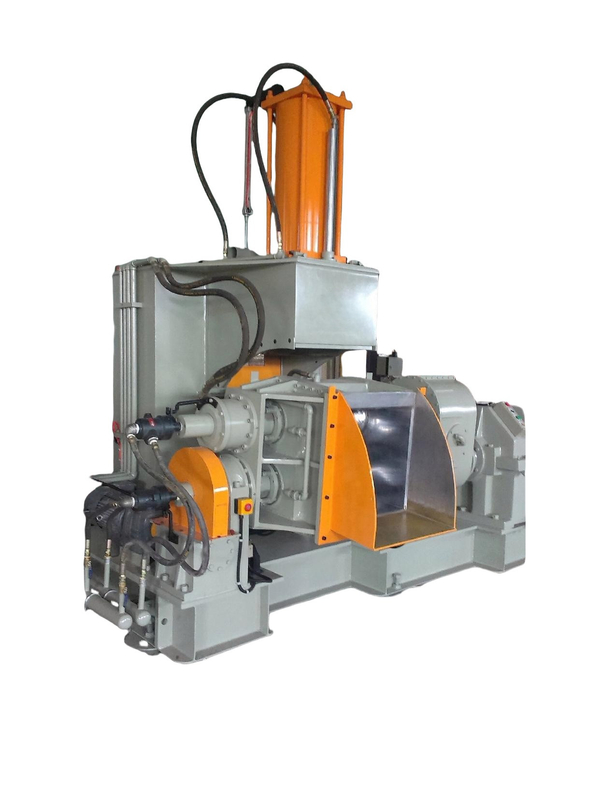

ISO Standard 55L Rubber Mixing Chamber Rubber Mixer For Butyl Rubber / Natural Rubber / Styrene Butadiene Rubber Mixing 0

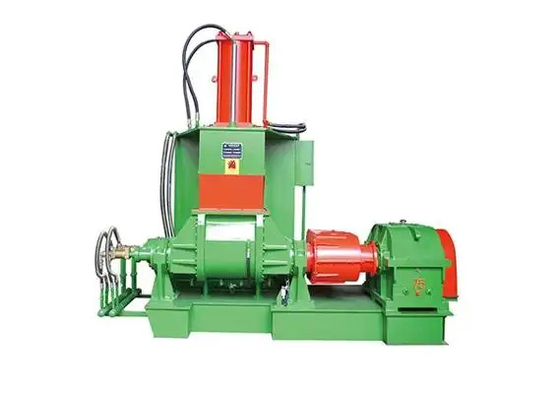

ISO Standard 55L Rubber Mixing Chamber Rubber Mixer For Butyl Rubber / Natural Rubber / Styrene Butadiene Rubber Mixing 1
