Double Working Layer Heat Exchanger Rubber Sealing Strip Vulcanizing Machine with Manual Mold Entry And Exit and 600*2000mm Heating Plate Size
Product Summary
Heat Exchanger Rubber Sealing Strip Flat Vulcanizing Machine Double Working Layer - Manual Mold Entry And Exit Hot Press Advanced vulcanizing machine designed for producing high-quality rubber sealing strips used in plate and shell & tube heat exchangers. Features precision control and material ...
Basic Properties
Place of Origin:
Qingdao
Brand Name:
Beishun
Certification:
ISO/CE
Model Number:
XLB-500x900x2/1.20MN
Trading Properties
Minimum Order Quantity:
1set
Price:
Negotiable
Payment Terms:
T/T,L/C
Supply Ability:
30sets
Product Description
Heat Exchanger Rubber Sealing Strip Flat Vulcanizing Machine
Double Working Layer - Manual Mold Entry And Exit Hot Press
Advanced vulcanizing machine designed for producing high-quality rubber sealing strips used in plate and shell & tube heat exchangers. Features precision control and material adaptability for various industrial applications.
Technical Specifications
| Parameter | Specification | Notes |
|---|---|---|
| Model | HX-VS300 | Customizable for strip profiles |
| Vulcanization Method | Hot Air/Electric Plate/Steam | Choice depends on material (EPDM/silicone) |
| Max. Strip Width | 10~300 mm | Adjustable mold inserts |
| Strip Thickness Range | 1~15 mm | Tolerance: ±0.2 mm |
| Working Temperature | 150°C~200°C | PID-controlled (±1°C) |
| Heating Power | 20~30 kW (Electric) / 0.7~1.0 MPa (Steam) | Energy-efficient insulation |
| Pressure System | Hydraulic (10~15 MPa) or Pneumatic (0.6~0.8 MPa) | Ensures uniform compression |
| Conveyor Speed | 0.5~5 m/min | For continuous vulcanization lines |
| Cooling Method | Water-cooled rollers or air jets | Post-vulcanization stabilization |
| Control System | PLC + HMI (Recipe Storage, Real-time Monitoring) | Supports JIS/ISO 9001 standards |
| Power Supply | 380V, 50Hz, 3-phase | CE/UL certification options |
| Production Capacity | 500~1,200 meters/shift (8 hours) | Depends on profile complexity |
Key Features
- Precision Profile Control: Interchangeable molds for T-shaped, U-shaped, hollow seals with laser-guided alignment for multi-layer strips
- Material Adaptability: Compatible with EPDM (high temp resistance), Silicone (food-grade), NBR (oil-resistant)
- Energy Efficiency: Recirculating hot air systems reduce energy consumption by 20% vs. traditional heaters
- Quality Assurance: In-line thickness gauges and automatic defect detection for bubbles and undercure
Common Applications
- Plate Heat Exchanger Gaskets: Vulcanizing EPDM strips for Alfa Laval/SWEP plates
- Shell & Tube Seals: Silicone/NBR seals for condenser/evaporator tubes
- Automotive Radiators: Continuous vulcanization of reinforced rubber strips
Optional Upgrades
- Vacuum Pre-treatment for aerospace-grade seals
- Tandem Systems combining extrusion and vulcanization
- Automated Cutting with CNC cutters for fixed-length segments
Quotation Requirements
For accurate pricing and CAD drawings, please provide:
- Seal cross-section diagram
- Annual output requirement
- Material specifications (e.g., EPDM 70 Shore A)
Available upon request: Stress-strain data and compliance certifications (FDA, REACH)

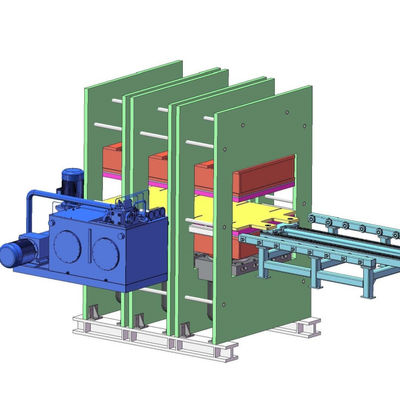

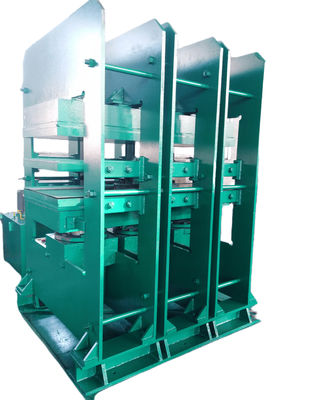

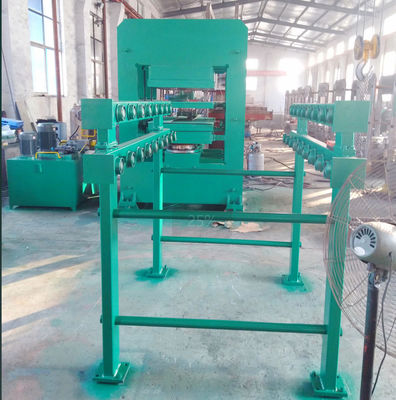

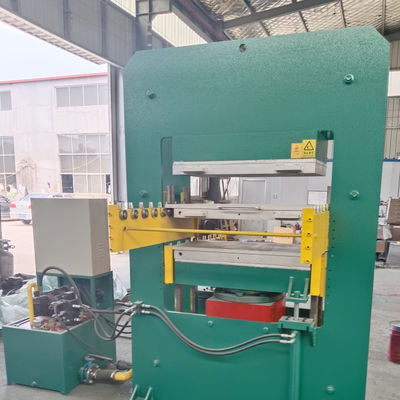

Product Images
Product Details
Highlight:
Double Working Layer Rubber Vulcanizing Press Machine
,Manual Mold Entry And Exit Heat Exchanger Rubber Sealing Strip Vulcanizing Machine
,600*2000mm Heating Plate Size Hydraulic Vulcanizing Press
Driving Motor Power:
7.5kw*2
Safety Device:
Safety Curtain
Weight:
According To Size
Cylinder Diameter:
φ360mm*6
Plate Size:
600*2000mm ( Can Be Customized)
Packing:
FCL/LCL
Working Layers:
Customized
Customized:
Yes
Type:
Hydraulic Press
Mold Open Type:
Automatic Mold Opening
Plunger Dia:
300mm
Layer No:
4
Heating Plate Size:
600*2000mm Or Customized
Hs Code:
8477.8000
Column:
Polishing Treatment
