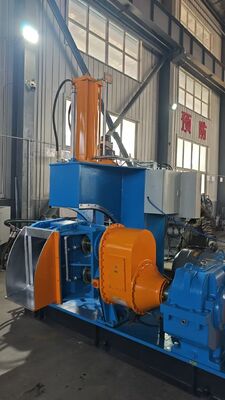

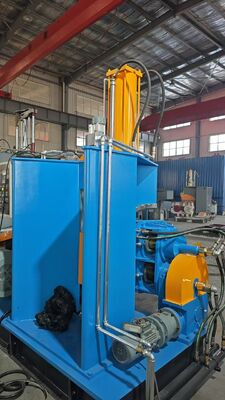

Non-leakage 35L Wear-resistant Copper Alloy Sealing Ring for Rubber Internal Mixers and Rotary Kneaders
Product Summary
Non-leakage Sealing Ring for 35L Rubber Internal Mixers High-quality wear-resistant copper alloy sealing structure designed specifically for rotary kneaders in rubber compounding applications. Working Principle of Plasticizing Machine The plasticizing machine is essential equipment in the rubber ...
Basic Properties
Place of Origin:
Qingdao
Brand Name:
Beishun
Certification:
ISO9001/CE
Model Number:
X(S)N-35×30
Trading Properties
Minimum Order Quantity:
1set
Price:
$18000-23000
Supply Ability:
20sets/month
Product Description
Non-leakage Sealing Ring for 35L Rubber Internal Mixers
High-quality wear-resistant copper alloy sealing structure designed specifically for rotary kneaders in rubber compounding applications.
Working Principle of Plasticizing Machine
The plasticizing machine is essential equipment in the rubber industry, functioning as the core component for rubber compounding through an efficient mechanical process:
- Utilizes relative rotation of two rotors to feed materials into the gap between rollers
- Subjects materials to intensive squeezing and shearing actions from the rotors
- Divides materials using sharp edges of lower stoppers after passing through roller gaps
- Enables continuous circulation where materials return to upper gap areas through front and rear chamber spaces
- Generates heat through shear and friction, reducing rubber viscosity and enhancing filler wetting properties
- Breaks down filler lumps through multiple gap passages while rubber stretches and deforms around them
- Uses rotor protrusions to create axial movement for thorough stirring and mixing
- Ensures uniform additive dispersion through repeated shearing and deformation cycles
Customizable Specifications
Available in multiple configurations to meet specific production requirements:
| Type | X(S)N-3*32 | X(S)N-10*32 | X(S)N-20*32 | X(S)N-35*30 | X(S)N-55*30 | X(S)N-75*30 | X(S)N-110*30 | X(S)N-150*30 |
|---|---|---|---|---|---|---|---|---|
| Total Volume of Mixing Chamber (L) | 8 | 25 | 45 | 75 | 125 | 180 | 250 | 325 |
| Working Volume of Mixing Chamber (L) | 3 | 10 | 20 | 35 | 55 | 75 | 110 | 150 |
| Driving Motor Power | 5.5KW | 15KW | 30KW | 55KW | 75KW | 110KW | 185KW | 220KW |
| Tipping Motor Power | 0.55KW | 1.1KW | 1.5KW | 2.2KW | 2.2KW | 4.0KW | 4.0KW | 5.5KW |
| Tipping Angle (°) | 135 | 140 | 140 | 140 | 140 | 140 | 140 | 140 |
| Working Pressure of Compressed Air (Mpa) | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 |
| Flow Rate of Compressed Air (m³/m) | ≥0.3 | ≥0.5 | ≥0.7 | ≥0.9 | ≥1.0 | ≥1.0 | ≥1.5 | ≥1.5 |
| Pressure of Heating Steam (Mpa) | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 |
| Overall Size (mm) | 1660*960*1750 | 2580*1300*2280 | 2630*1520*2550 | 3200*1900*2945 | 3360*1950*3050 | 3760*2143*3155 | 4075*2712*3580 | 4200*3200*4000 |
| Weight (KG) | 2000 | 3300 | 4000 | 6300 | 7500 | 10300 | 14500 | 19500 |
Frequently Asked Questions
Q: Are you a factory or trading company?
A: We are a manufacturing factory.
Q: Where is your factory located? How can I visit?
A: Our factory is located in Qingdao city. You can fly to Qingdao Airport, and we will arrange transportation to our facility. We warmly welcome your visit.
Q: How does your factory control quality and provide after-sales service?
A: Our machines are certified with CE, ISO, and SGS standards. We have a dedicated quality control team that performs strict inspections before delivery. All machines include a 1-year guarantee.
Q: What are your payment terms?
A: 30% TT in advance, 70% TT before shipment, or L/C at sight.
Q: Can you design new products for us?
A: Yes, we have a professional development team that can create new products according to your specific requirements.
Product Details
Highlight:
Non-leakage Sealing Ring
,Wear-resistant Copper Alloy Sealing Ring
,35L Rubber Internal Mixer
Condition:
New, New
Rotor:
Chromeplate Or Hard-Alloy Welding
Rotor Structure:
Two/Four-Wing
Main Motor Power:
55 KW
Word Volume:
35L
Speed Control:
Inverter
Rotating Speed:
1-20r/min
Rotary Method:
Front
Feeding Mode:
Front/Back
Color:
Orange,Blue Or Green,customized
Motor Type:
Hard Alloy Welding
Machinetype:
Internal Mixer
