80-ton Column-type Precision PLC Fully Automatic Flat Vulcanizing Machine
Product Summary
80-ton Column-type Precision PLC Fully Automatic Flat Vulcanizing Machine Applications & Capabilities This advanced 80-ton column-type precision PLC fully automatic flat vulcanizing machine is engineered for high-performance rubber hydraulic molding across diverse industrial applications: Silicone ...
Basic Properties
Place of Origin:
Qingdao
Brand Name:
Beishun
Certification:
ISO/CE
Model Number:
XLB-500×500/0.8MN
Trading Properties
Minimum Order Quantity:
1set
Price:
Negotiable
Payment Terms:
L/C,T/T
Supply Ability:
30sets/40day
Product Description

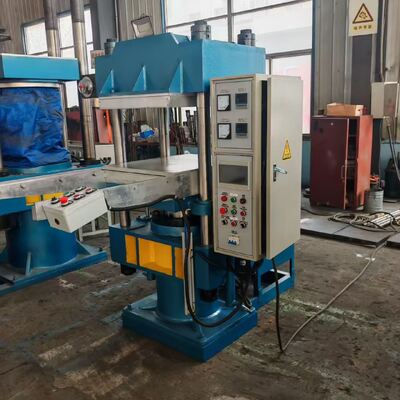

80-ton Column-type Precision PLC Fully Automatic Flat Vulcanizing Machine
Applications & Capabilities
This advanced 80-ton column-type precision PLC fully automatic flat vulcanizing machine is engineered for high-performance rubber hydraulic molding across diverse industrial applications:
- Silicone Rubber Products: O-rings, mobile phone keyboards, computer keyboards, remote control buttons, pressure cooker and rice cooker sealing gaskets, household appliance components, food and medical device parts, nipples, medical supplies, handicrafts, toy seals, conductive rubber, automotive rubber parts, industrial rubber components, medical silicone products, sports equipment, various utensils, multi-layer molded products, plywood, epoxy resin boards, carbon fiber boards, PI films, and various composite materials and rubber-plastic products for hot pressing, shaping, manufacturing, and processing.
- Flat Tapes and Sheets: Precision molding of flat tapes, sheets, and polymer flat products.
- Seals and O-rings: Production of various rubber molded and non-molded products including seals, O-rings, oil seals, gaskets, thermosetting plastics, foams, resins, building materials, and diverse rubber-plastic products.
These machines are essential equipment in the rubber products industry, delivering precision, reliability, and automation for demanding manufacturing environments.
Technical Specifications
| Model | XLB-D350X350 | XLB-D400X400 | XLB-D600X600 | XLB-D750X850 | XLB-D900X900 |
|---|---|---|---|---|---|
| Total Pressure | 0.25mn | 0.50mn | 1.00mn | 1.60mn | 2.50mn |
| Platen Size | 350x350mm | 400x400mm | 600x600mm | 750x850mm | 900x900mm |
| Daylight | 125mm | 125mm | 125mm | 125mm | 125mm |
| Working Layer | 2 | 2 | 2 | 2 | 2 |
| Piston Stroke | 250mm | 250mm | 250mm | 250mm | 250mm |
| Heating Method | Electric | Electric | Electric | Electric | Electric |
| Platen Unit Area Pressure | 20kg/cm² | 31kg/cm² | 28kg/cm² | 31kg/cm² | 31kg/cm² |
Product Images
Product Details
Highlight:
80-ton PLC vulcanizing machine
,column-type flat vulcanizing press
,automatic rubber vulcanizing machine
Heating:
Electricity / Oil / Steam
Structure Style:
Horizontal
Cylinder Stroke:
500mm
Control:
PLC Automatic
Vulcanizing Time:
0-999s
Machinetype:
Hydraulic/Mechanical Vulcanizing Press
Other Name:
Flat Vulcanizing Press
Temperature Range:
0-400℃
Operating Temperature:
Up To 300°C
Mold Compatibility:
Custom Molds Supported
Heating Mode:
Electric Heating
Key Selling Points:
Good Quality And Price
Mr. Alexey Pan
General Manager
- Email: info@beishunchina.com
- Tel: +86 15154222850
- WhatsApp: 8615154222850
-
WeChat:
Beishunrubbermachine
