Plate Vulcanizing Machine / Rubber Mat Manufacturing Machine
Product Summary
Plate Vulcanizing Machine / Rubber Mat Manufacturing Machine The Plate Vulcanizing Machine, also known as Rubber Mat Manufacturing Machine, is a core hydraulic equipment in the rubber industry designed for vulcanization molding of rubber mats, rubber sheets, sealing gaskets, and other products under ...
Basic Properties
Place of Origin:
Qingdao
Brand Name:
Beishun
Certification:
ISO/CE
Model Number:
XLB-800*800
Trading Properties
Minimum Order Quantity:
1set
Price:
Negotiable
Payment Terms:
T/T
Supply Ability:
30sets/60day
Product Description
Plate Vulcanizing Machine / Rubber Mat Manufacturing Machine

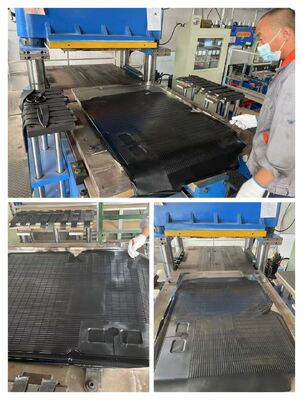

The Plate Vulcanizing Machine, also known as Rubber Mat Manufacturing Machine, is a core hydraulic equipment in the rubber industry designed for vulcanization molding of rubber mats, rubber sheets, sealing gaskets, and other products under high temperature and pressure conditions.
Working Principle
Vulcanization involves rubber materials undergoing a cross-linking reaction under controlled conditions of temperature (140-180°C), pressure (50-2000 tons), and time (5-30 minutes) to form an elastic, durable three-dimensional network structure.
- Feed rubber material into the machine
- Close the mold under hydraulic pressure
- Heat and maintain pressure for vulcanization
- Cool and demold to obtain finished rubber mat products
Main Structure
- Rack: High-strength steel plate welding, including upper/lower beams and columns, designed to withstand high pressure
- Hot Plates: Made of high-quality steel with electric heating tubes or oil heating channels; temperature uniformity of ±1-2°C
- Hydraulic System: Provides clamping force with oil pump, motor, cylinder and control valve; stepless pressure adjustment
- Control System: PLC + intelligent temperature controller with automatic temperature control, timing, pressure maintenance and deflation functions
Common Types & Parameters
- Column Type: Small and medium-sized (50-500 tons), suitable for small rubber mats and gaskets
- Frame Type: Large-scale (1000-2000 tons), designed for large rubber floor mats, car mats, and similar products
Example Parameters (XLB Series):
| Specification | Range |
|---|---|
| Hot Plate Size | 500*500mm ~ 1400*1500mm |
| Clamping Force | 1000KN (100 tons) ~ 20000KN (2000 tons) |
| Heating Method | Electric heating (standard) / oil heating / steam heating |
| Number of Layers | 1-6 layers (multi-layer for high efficiency) |
Applications
Rubber Products:
- Car floor mats
- Anti-slip mats
- Industrial rubber sheets
- Sealing gaskets
- Shock-absorbing pads
Other Materials: Thermosetting plastics, foam materials, resin products
Key Advantages
- High Precision: Precise control of temperature, pressure and time ensures consistent product quality
- High Efficiency: Multi-layer design and automatic control improve production capacity
- Durability: Stress-relieved frame ensures long-term stable operation
Price Range (FOB Qingdao, China)
Small (100-300 tons): USD 5,000 - 15,000
Medium (500-1000 tons): USD 20,000 - 50,000
Large (1500-2000 tons): USD 125,000 - 150,000
Product Details
Highlight:
rubber vulcanizing press machine with warranty
,plate vulcanizing machine for rubber mats
,industrial rubber mat manufacturing machine
Voltage:
220V/380V/400V/440/
Control:
Automatic
Vulcanizing Time:
0-999s
Service Overseas:
Provision
Cooling System:
Water Cooling / Air Cooling
Plunger Stroke:
300mm
Warranty:
3years
Loading Port:
Qingdao, China
Operating Voltage:
380V 50HZ 3Phase Or Customized
Plate Size:
500mm X 500mm To 1500mm X 1500mm
Plunger Material:
Chilled Cast Iron
Cycle Time:
30-300 Seconds
Export Markets:
Global
Customized Services:
Support Customization
Main Motor Power:
22 Kw
