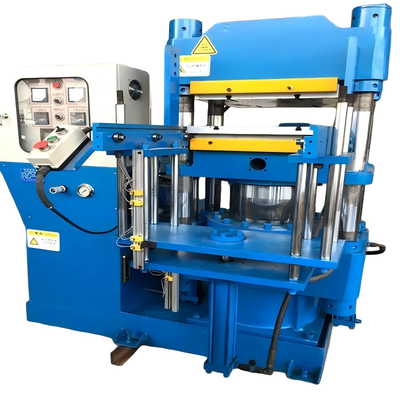

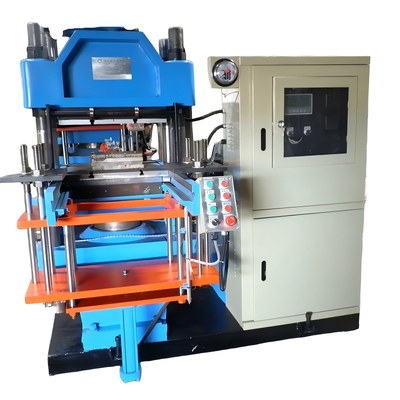

Customized Servo 250T 2TR Four-column Automatic Mold-moving Electric Heating Flat Vulcanizing Machine With R Function
Product Summary
Customized Servo 250T 2TR Four-column Automatic Mold-moving Electric Heating Flat Vulcanizing Machine With R Function Rubber flat vulcanizing machines are engineered to induce chemical reactions in rubber materials, resulting in hardening and shaping to achieve desired physical properties and ...
Basic Properties
Place of Origin:
Qingdao
Brand Name:
Beishun
Certification:
ISO/CE
Model Number:
XLB-800*800
Trading Properties
Minimum Order Quantity:
1set
Price:
Negotiable
Payment Terms:
T/T,L/C
Supply Ability:
30sets/60day
Product Description
Customized Servo 250T 2TR Four-column Automatic Mold-moving Electric Heating Flat Vulcanizing Machine With R Function
Rubber flat vulcanizing machines are engineered to induce chemical reactions in rubber materials, resulting in hardening and shaping to achieve desired physical properties and performance characteristics.
Primary Applications
- Vulcanizing flat rubber belts including conveyor belts and transmission belts
- Processing rubber sheets and other flat polymer products
- Pressing various rubber molded components such as seals, O-rings, oil seals, and rubber gaskets
- Processing thermosetting and thermoplastic plastic molded products, foams, resins, and building materials
- Specialized explosion-proof models for methane or coal dust environments in underground coal mines
Operating Principle
This equipment utilizes integrated hydraulic and heating systems to facilitate rubber vulcanization under precisely controlled conditions.
Pressure Application: Hydraulic cylinders generate precise pressure to ensure complete mold cavity filling, minimize air bubble formation, and produce dense product structures.
Temperature Control: Heating platens utilize steam, heat transfer oil, or electric heating to elevate rubber compound temperature, promoting molecular cross-linking and transformation from linear to network structures.
Automated Operation: Modern systems feature PLC and touchscreen controls for automatic degassing, pre-compression, vulcanization timing, and mold opening sequences.
Operational Sequence
- Place unvulcanized semi-finished product into the mold between heating plates
- Introduce hydraulic medium into cylinders, activating plunger to push movable platform and compress mold
- Introduce heating medium into heating plates
- After achieving set temperature and time parameters, discharge hydraulic medium, open mold, and remove finished product
Technical Specifications
| Type | XLB-600 | XLB-1000 | XLB-1200 | XLB-1400 | XLB-2000 |
|---|---|---|---|---|---|
| Total Pressure | 60t | 100t | 120t | 140t | 200t |
| Working Layer Number | 2 | 2 | 2 | 2 | 2 |
| Steam Chamber Internal Dia. (mm) | 820 | 830 | 840 | 1050 | 1450 |
| Piston (mm) | 250 | 300 | 360 | 360 | 400 |
| High Pressure (Mpa) | 13 | 14 | 14 | 14 | 14 |
| Low Pressure (Mpa) | 5 | 5 | 5 | 5 | 5 |
| Pressure in Bladder (Mpa) | 1.5 | 2.1 | 2.1 | 2.1 | 2.1 |
| Overall Dimension (mm) | 1200×900×2400 | 1200×900×2358 | 1200×900×2500 | 1360×1050×3820 | 1500×1500×3200 |
| Weight (kg) | 3200 | 4500 | 5500 | 7000 | 8000 |
Product Details
Highlight:
Four-column electric heating vulcanizing machine
,Automatic mold-moving servo press
,250T rubber vulcanizing machine with R function
Voltage:
220V/380V/400V/440/
Power(W):
1.5KW - 75 KW,4KW,2.2,2.2KW,36Kw
Condition:
New
Weight:
658kg,800kgs,3.5ton,810kg,according To Size
Warranty:
1 Year,one Year,2 Years,12 Months,1 Year For Single Vulcanizing Press Machine
Type:
Vulcanizer,Column,tablet Press,PLC Control,Plate Vulcanizing Press
After-Sales Service Provided:
Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service,Video Technical Support,Overseas Third-party Support Available,Field Installation
Dimension(L*W*H):
None,1000x800x1200,1500*2000*1900mm,1680x1220x630,DEPEND ON THE MACHINE SIZE
Color:
Blue,Yellow,White And Others Accepted,customization,orange
Application:
Vulcanizing To Be Final Product,conveyor Belt Hot Vulcanizing Joint,Steel Cord And Multi-ply Conveyor Belt Joint,Vulcanizing Rubber Products,Splicing And Repairing Conveyor Belts
Working Layer:
1,4-6 Molds,2,2-4 Layers
Product Name:
Rubber Hot Plate Vulcanizing Machine,1400x5700mm Platen Size Rubber Conveyor Belt Vulcanizing Press,Rubber Conveyor Belt Jointing Vulcanizing Press Machine,Rubber Vulcanizing Press
Name:
Lab Rubber Heating Plat Vulcanizing Press Machine,Vacuum Rubber Vulcanizer Press Machine,Rubber Compression Molding Machine,Single Vulcanizing Press Machine / PLC Control
Material:
Aluminum Alloy
Year:
Custom,2018
Cooling Time:
About 5 Mins,5 Minutes
Plunger Diameter:
180-290mm,200 Mm
Vulcanizing Temperature:
Adjustable,145 °C
Heating Way:
Steam Or Oil,electrical / Oil System
