4RT Automatic Demolding Flat Plate Vulcanizing Machine - Hot Press Machine - Rapid Heating with Uniform Temperature - Temperature Controlled by Electrical Control Box - Customizable Processing Availab

4RT Automatic Demolding Flat Plate Vulcanizing Machine - Hot Press Machine - Rapid Heating with Uniform Temperature - Temperature Controlled by Electrical Control Box - Customizable Processing Availab

Brand Name:	Beishun
Model Number:	XLB-600×600
MOQ:	1set
Price:	Negotiable
Supply Ability:	10sets/45day

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao

Certification:

ISO9001/CE

Production Products:

Rubber Gasket

Plunger Stroke:

300mm

Material:

Carbon Steel/Stainless Steel

Quality Guarantee:

1 Year

Cycletime:

30-300 Seconds

Customize:

Customized

Electric Parts:

Schneider

Plate Daylight:

200mm

Heating Mode:

Electric Or Steam Heating

Control System:

PLC

Frequency:

50Hz

Safety Device:

Safety Curtain

Safety Features:

Overload Protection, Emergency Stop

Press:

Hydraulic Pressure

Dimensions:

Depends On Model, Typically 2m X 1.5m X 2m

Packaging Details:

wooden box

Highlight:

automatic demolding flat plate vulcanizing machine

hot press machine with rapid heating

temperature controlled rubber vulcanizing press

Product Description

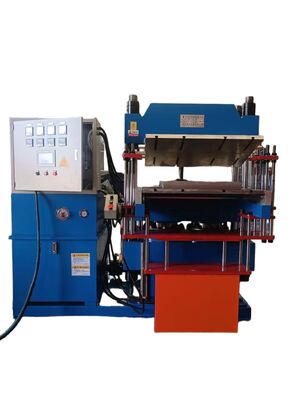

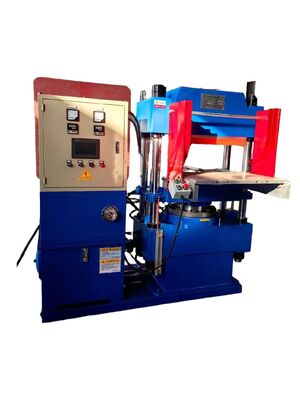

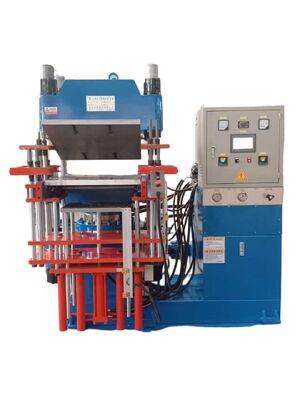

4RT Automatic Demolding Flat Plate Vulcanizing Machine

This advanced hot press machine features rapid heating with uniform temperature distribution and complete PLC control system for precise rubber and plastic molding processes.

Key Features & Specifications

4RT Structure: Four-layer independent push-out demolding mechanism for multi-layer composite molds
Automatic Demolding: Hydraulic pins automatically eject vulcanized products, eliminating manual mold removal
Rapid Uniform Heating: Fast heating with minimal temperature variation across the entire hot plate surface
Precision Control: Integrated electrical control box with complete PLC system for temperature, pressure, and timing
Customizable Design: Available in various tonnage, table size, layer configurations, and automation options

This specialized equipment is ideal for rubber and plastic hot pressing molding applications, ensuring stable product quality through precise temperature and pressure control.

Frequently Asked Questions

How to choose the tonnage of a vulcanizing machine?

Calculate based on product's projected area and required material pressure. Conventional rubber: 12-20 MPa; silicone rubber: 10-15 MPa. Small sealing rings: 50-200T; conventional products: 200-400T; large sheets/linings: 500T and above.

What is the difference between four-column and frame-type machines?

Four-column machines are versatile with large stroke and cost-effective for conventional molds. Frame-type machines offer superior rigidity, minimal table deformation, and high precision for high-pressure, high-precision applications.

How to choose between single-layer and multi-layer machines?

Single-layer provides uniform temperature control ideal for thick precision products. Multi-layer offers high capacity in compact footprint for mass production of thin small parts, though slight inter-layer temperature differences may occur.
