Energy Saving Environmentally Friendly Twin Screw Rubber Strainer Extruder Machine with Customization Support
Product Summary
Twin Screw Rubber Strainer Extruder ISO energy-saving and environmentally friendly twin-screw rubber strainer/extruder is suitable for MC tyre factories and rubber compounding plants Rubber Strainer Technology Overview Advanced research demonstrates significant performance improvements in solution ...
Basic Properties
Place of Origin:
Qingdao
Brand Name:
Beishun
Certification:
ISO/CE
Model Number:
XJ-200
Trading Properties
Minimum Order Quantity:
1set
Price:
Negotiable
Payment Terms:
T/T,L/C
Supply Ability:
30sets
Product Description

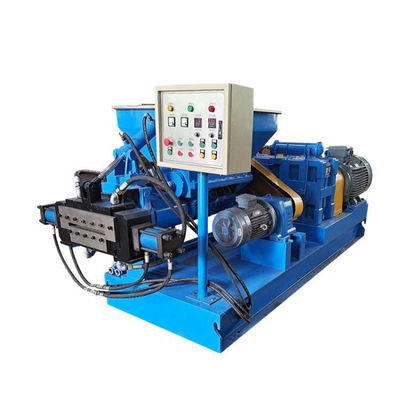

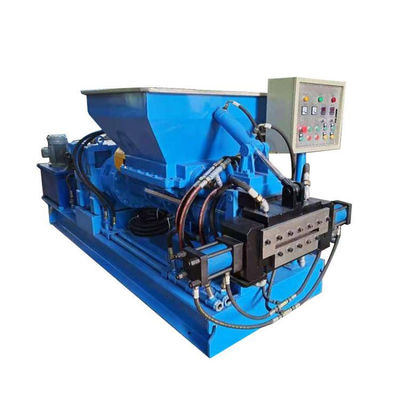

Twin Screw Rubber Strainer Extruder
ISO energy-saving and environmentally friendly twin-screw rubber strainer/extruder is suitable for MC tyre factories and rubber compounding plants
Rubber Strainer Technology Overview
Advanced research demonstrates significant performance improvements in solution styrene butadiene rubber (SSBR)/butadiene rubber (BR) blended rubber when filtered through our dual-drive synchronous gear pump rubber filter system. The filtration process enhances vulcanization characteristics and physical properties while optimizing key performance metrics.
Technical Performance Benefits
- Shore A hardness, tensile stress, and strength parameters show optimized performance curves
- Reduced Payne effect with decreasing filter mesh aperture
- Maximum tensile strength and tear strength achieved at 75μm filter mesh
- 27.5% increase in tensile strength and 33.3% improvement in tear strength compared to unfiltered rubber
- Enhanced flexural resistance and optimized loss factor (tanδ)
- Highest glass transition temperature and lowest rolling resistance
Equipment Capabilities
Our rubber strainer utilizes mechanical pressure to filter rubber solutions through precision filter screens, effectively removing impurities and bubbles. Engineered for high efficiency and precision operation, this equipment is ideal for tire manufacturing, rubber product production, and specialized rubber applications.
- Filtration accuracy up to 200 mesh, with select models capable of 500 mesh filtration
- Automated control systems reduce labor requirements and operational costs
- Enhanced production efficiency and extended equipment durability
- Superior rubber quality and purity assurance
Technical Specifications
| Item | XJL-150 | XJL-200 | XJL-250 |
|---|---|---|---|
| Model | XJL-150 | XJL-200 | XJL-250 |
| Screw Diameter | Ф150 | Ф200 | Ф250 |
| Screw Length-Diameter Ratio | 6:1 | 6:1 | 5.5:1 |
| Screw Rotation Speed | 45 r/min | 49 r/min | 49 r/min |
| Main Machine Power (KW) | 90 (110KW) | 7.5 | 7.5 |
| Feeding Motor Power (KW) | 0.3 | 0.3 | 0.3 |
| Cooling Water Pressure (MPA) | 0.2 | 0.2 | 0.2 |
| Output (kg/h) | 450 | 800 | 1200 |
| Overall Dimensions (mm) | 3200*1150*1600 | 4000*1300*1600 | 4200*1500*1600 |
| Weight (KG) | 3500 | 4500 | 6500 |
Primary Functions
The twin screw rubber strainer efficiently removes impurities from rubber and reclaimed rubber through advanced screw propulsion and conveying mechanisms. This system ensures thorough filtration of rubber solutions, eliminating microscopic contaminants and air bubbles to guarantee superior product quality.
- Advanced impurity removal through screw-driven filtration
- Efficient bubble elimination for enhanced product integrity
- Automated control systems for simplified operation
- Ideal for tire manufacturing and specialized rubber products
Product Details
Highlight:
Environmentally Friendly Rubber Strainer
,Rubber Compounding Plants Rubber Strainer
,Twin Screw Rubber Strainer
Warranty:
1.5 Years
Process Material:
EPDM, NBR, Nature Rubber
Showroom Location:
None
Frequency:
50Hz
Mode Of Production:
Support Customization
Model No:
XJ-200
Guarantee Period:
12 Months
Hs Code:
84778000
Speed Control:
Inverter
Energy Type:
Electricity
Screw Material:
38CrMoALA
Barrel Material:
Nitrided Steel
