| Brand Name: | Beishun |
| Model Number: | XPW-600 |
| MOQ: | 1set |
| Price: | USD 15000-70000 Set |
| Payment Terms: | TT，L/C |

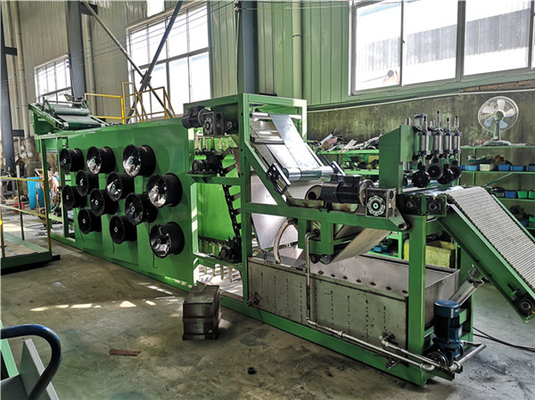

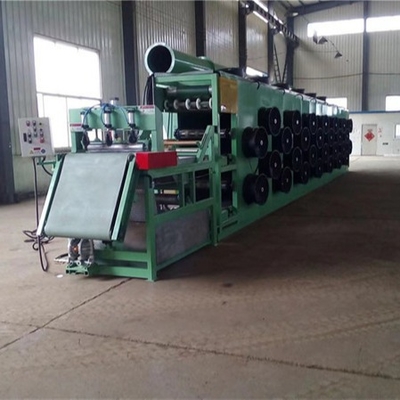

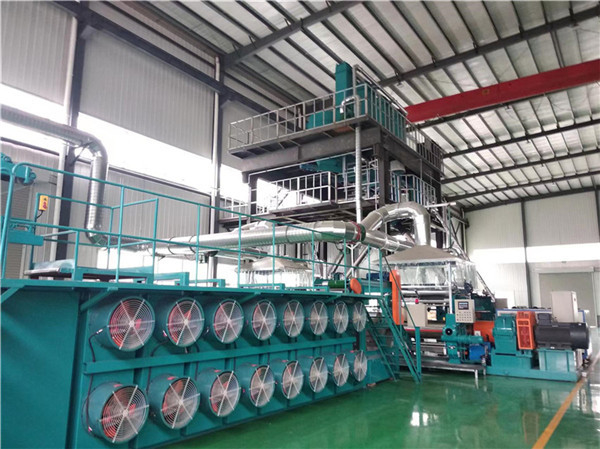

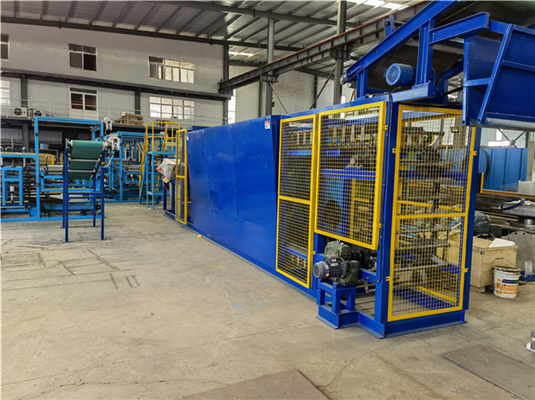

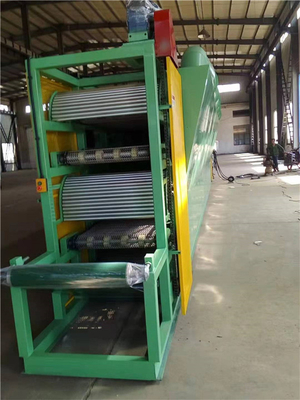

Stainless Steel Mesh Belt Rubber Batch Off Cooling Machine
Introduction:
Rubber batch off cooling machine is the downstream auxiliary to the mixer or the dispersion mixer. It is used for cooling, folding and depositing the rubber strip that comes from the internal mixer and open mixer in the internal mixing workshop.
The rubber batch off cooling machine is designed to perform continuous operations of rubber slab conveying, separate applying, air cooling, drying, cutting and wig-wag stacking.
Detailed description:
The main process equipment is composed of isolation agent coating device, clamping lifting conveyor belt, glue hanging cooling conveyor, cutter lamination device, transmission device and control system. The isolating agent coating device soaking and spraying methods, and the cutter lamination device has glue swing continuous folding and slice stacking forms. After the rubber material is pressed into film after plastic refining or mixing, the device can pick up the film with higher temperature, press the joint, cut and print longitudinally, soak and cool the spacer, lift and hang the film, air cooling and cooling and automatic rubber picking, etc.
The equipment is composed of receiving and conveying device, printing device, joint pressing device, longitudinal cutting device, spacer soaking device, clamping lifting device, glue hanging cooling conveying device, automatic glue picking device, pneumatic control system, automatic film swinging device on the first floor, maintenance platform, electrical control system, safety and alarm system. The equipment is complete, easy to operate, safe and reliable.
| Model | XPG-600 | XPW-600 | XPG-800 | XPG-900 |
| Type of Construction | Floor Type | Mesh-belt Type | Overhead Type | Overhead Type |
| Max. Rubber Sheet Width(mm) | 600 | 600 | 800 | 900 |
| Rubber Thickness (mm) | 4-10 | 2-12 | 4-10 | 6-12 |
| Temperature of Cooling Rubber Sheet Higher Than Room (℃) | 10 | 10 | 15 | 5 |
| Friction Ratio (m/min) | 3-24 | 3-24 | 3-35 | 4-40 |
| Cooling Fans Number(set) | 12 | 12 | 20 | 18-26 |
Applications:
1,Conveyor belt production line, including steel wire rope core conveyor belt, ordinary fabric core conveyor belt, edge conveyor belt and other production lines.
2,Inner and outer tire production lines for bicycles and motorcycles.
3,Inner and outer tire production lines for agricultural tires and engineering tires.
4, Retreaded tire production line.
Advantages:
1. The whole equipment operates safely and reliably. The design and manufacturing quality is at the leading level. All parts are safe and reliable. Emergency stop switches and protective nets are set in places prone to danger, which can ensure the safety requirements of industrialized continuous production and ensure that normal production cannot be affected by equipment problems.
2. Easy to operate. The equipment consists of main engine and electric control system. The electric control system is composed of the main control box, and the emergency control device is set at the key points, which is convenient for workers to operate and spacious in vision.
3. We can design and manufacture all kinds of mechanical accessories and machines according to customer requirements.
|
