XK-560 Rubber Mixing Mill Machine Automatic Stock Blender Thermoplastics Open

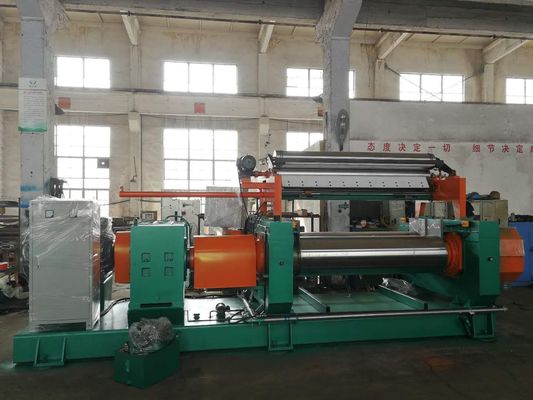

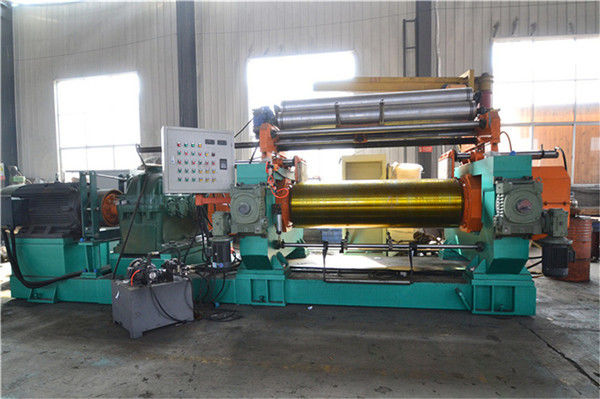

XK-560 Automatic Stock Blender Rubber Mixing Mill

Application :

The rubber mixing mill can be divided into open type and closed type. Automatic stock blender rubber mixing mill is used for mixing and kneading raw rubber, synthetic rubber, thermoplastics or E.V.A.with chemicals into final materials. The final material can be transported to rubber calender, batch off cooler, rubber extruder, rubber vulcanizing press or other processing machines for the heating, pressing, breaking, plasticizing and mixing of rubber or plastic products.

1 The construction of rolls: drilled, bored, grooved, corrugated. The roll adopts the vanadium titanium metal alloy chilled cast iron and its surface is hard and wear-proof. The internal cavity is processed to make temperature well proportioned on the roll surface.

2 The rubber mixing mill is equipped with an overload protection device to prevent the main components from being damaged.

3 The rubber mixing mill is also equipped with an emergency brake device. When an emergent arises, just draw the safety pull rod, and the machine will stop immediately. It is safe and reliable. The braking length of the roller is 1/6 rotation, maximizing safety.

4 The transmission system adopts a hardened tooth-surface reducer, which has a compact structure with higher transmission efficiency, lower noise and longer service life.

5 The base frame is a whole framework, which is convenient for installation.

6 Stock bender for direct rubber sheet and knife to cut as your need to assemble.

7 Auto-lubrication system for oil and match bearing bush.

Product Detail:

1. Rolls: chilled alloy cast iron rolls with surface hardness 68~72hs. the rolls are mirror finished & polished, duly grinding and are hollowed for cooling or heating.

2. Roll clearance adjusting unit: nip adjustment at two roller ends is done manually using two separate screws attached to the brass housing body.

3. Roll cooling: universal rotary joints with inner spray pipes with hoses and headers. piping is complete up to supply pipe terminal.

4. Journal bearing housing: heavy duty steel casting housing fitted with anti friction roller bearings.

5. Lubrication: Automatic circulated lubrication system for anti friction roller bearings fitted in dust sealed housing.

6. Stand frame & apron: heavy duty steel casting.

7. Gearbox: hard-tooth reduction gearbox.

8. Base frame: common base frame heavy duty, steel channel and ms plate fabricated accurately machined on which whole machine with gearbox and motor are fitted.

9. Electric panel: star delta electric operating panel with auto reversing, voltmeter, ampere, overload protection relay, 3 phase indicator and emergency stop switch.
