Automatic Control 650mm Width Tire Cooling Machine with 2 Year Warranty for Solid Tyre Building
Product Summary
Bicycle Rubber Motorcycle Tyre Making Machine Cooling 650mm Solid Tyre Building Machine Advanced production line for cooling, cutting, and collecting tire thread or sidewall components for bias and radial tires after extrusion processes. Application Used for cooling, cutting and collecting tire ...
Basic Properties
Place of Origin:
Qingdao
Brand Name:
Beishun
Certification:
ISO/CE
Trading Properties
Minimum Order Quantity:
1set
Price:
Negotiable
Payment Terms:
T/T,L/C
Supply Ability:
30sets
Product Description
Bicycle Rubber Motorcycle Tyre Making Machine Cooling 650mm Solid Tyre Building Machine
Advanced production line for cooling, cutting, and collecting tire thread or sidewall components for bias and radial tires after extrusion processes.
Application
Used for cooling, cutting and collecting tire thread or sidewall components for both bias tires and radial tires after extrusion.
Structural Features
- Complete system including take-off, contraction, continuous weighing, marking, calendaring and sticking base
- Integrated cooling, speed set point setting, cut-off, accelerated separation, and water blow-off systems
- Comprehensive inspection, spreading and spraying rubber cement capabilities
- Advanced take-up device with AC frequency conversion speed regulation
- PLC control system ensuring entire line synchronization
- No stretching for products during processing
- Designed according to domestic and international advanced technologies
Technical Specifications
| Line Speed | 5-25 m/min |
| Width of Production Roll | 650mm |
| Extraction Height | 900mm |
| Pick-up Temperature | <=40° |
| Cutter Maximum Thickness | 20mm |
| Maximum Cutting Width | 450mm |
| Range of Cutting Angle Adjustment | 35°±5° |
| Length Tolerance | < ±3 |
| Cutting Frequency | 10-15 cuts/min |
| Pressure of Compressed Air | 0.6-0.8 Mpa |
| Total Motor Power | 23.3 kw |
| Cooling Water Consumption | 50-60 m³/h |
| Overall Size | 28000x2000x2800 mm |
| Weight | 20000 kg |

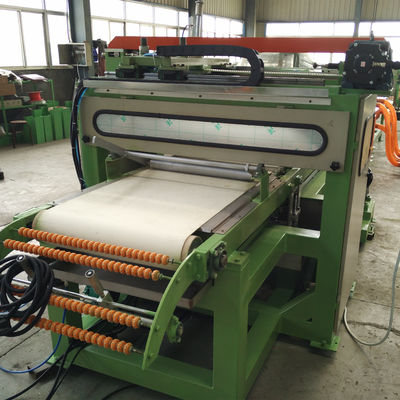

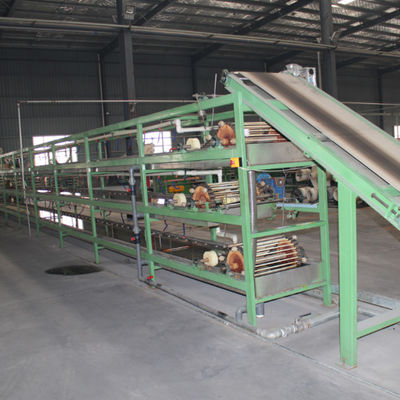

Machine Details
Manufacturer Information
Qingdao Beishun Environmental Protection Technology Co., Ltd. specializes in environmental protection machinery and rubber machinery research, development, and manufacturing. Located in Jiaonan city on the west coast of Qingdao, adjacent to Qingdao Economic and Technological Development Zone, the company benefits from excellent geographical positioning near Qingdao Port and Liuting International Airport.
The company employs outstanding technical and management personnel and utilizes advanced machining, heat treatment equipment, and sophisticated detection systems. Through continuous innovation and development, Beishun Environmental Protection Technology has established stable business relationships with numerous domestic and international customers, building a strong brand reputation within the industry.
The company adheres to a business philosophy focused on first-class quality to gain market confidence, quality service to win customer satisfaction, and continuous improvement to achieve strategic development goals. Qingdao Beishun Environmental Protection Technology maintains a business style characterized by realism, innovation, rigor, and efficiency, committed to integrity and high-quality customer service.
Packaging and Loading
Product Details
Highlight:
Tire Making Machine Cooling 650mm
,ISO9001 Bicycle Rubber Tire Making Machine
,650mm Solid Tyre Building Machine
Condition:
New
Color:
Green Or Blue
Voltage:
Customer Request
Application:
For Motorcycle Bicycle Tire Cooling, Cutting Process
Warranty:
2 Year
After-Sales Service Provided:
Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service,Video Technical Support,Overseas Third-party Support Available,Field Installation
Control Way:
Automatic
Name:
Rubber Batch Off Cooler Machine For Tire Tread Film Cooling Production Line
