| Brand Name: | Beishun |
| MOQ: | 1set |
| Price: | USD47600 |
| Packaging Details: | wooden box |
| Payment Terms: | TT，L/C |
Bicycle Rubber Tyre Thread Cooling Production Line/Tyre Thread Cooling Production Line Line/Solid Tyre Building Machine
Applicant
Used for cooling, cutting and collecting tire thread or sidewall of bias tire and radial tire after extrusion.
Structure features:
Consisting of take-off, contraction, continuous weighing, marking, calendaring and sticking base system, cooling, speed set point setting, cut-off, accelerated separation, water blow-off, inspection, spreading and spraying rubber cement. Take-up device etc. And designed according to the domestic and foreign advanced technologies, with speed regulation by A. C. frequency conversion, PLC control, entire line synchronization, no stretching for products.
Main parameter
| Line speed | 5-25 m/min |
| Width of production roll | 650mm |
| Extraction height | 900mm |
| Pick-up temperature | <=40° |
| cutter | Max. Thickness of the thread cutting:20mm |
| Max. Cutting width | 450mm |
| Range of cutting angle adjustment | 35°±5° |
| Length tolerance of the cutting component less than | ±3 |
| Cutting frequency | 10-15cuts/min |
| Pressure of comp0ressed air | 0.6-0.8Mpa |
| Total motor power | 23.3kw |
| Cooling water consumption | 50-60m³/h |
| Overall size | 28000x2000x2800 |
| Weight | 20000kg |

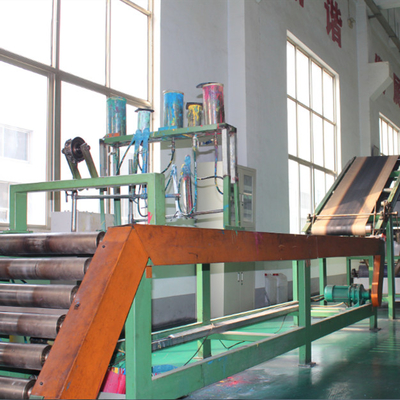

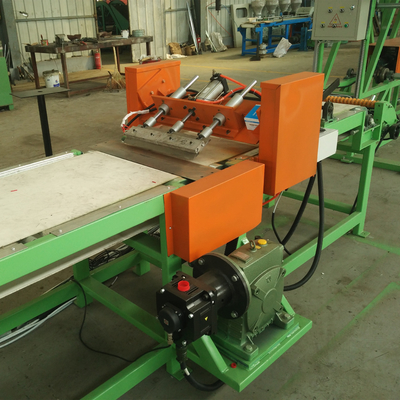

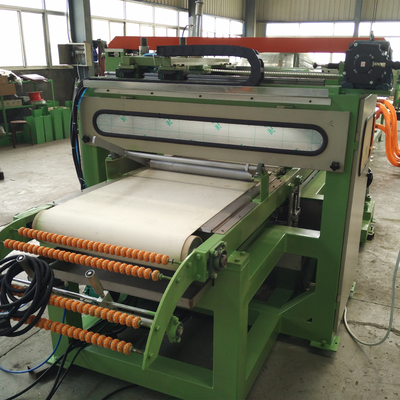

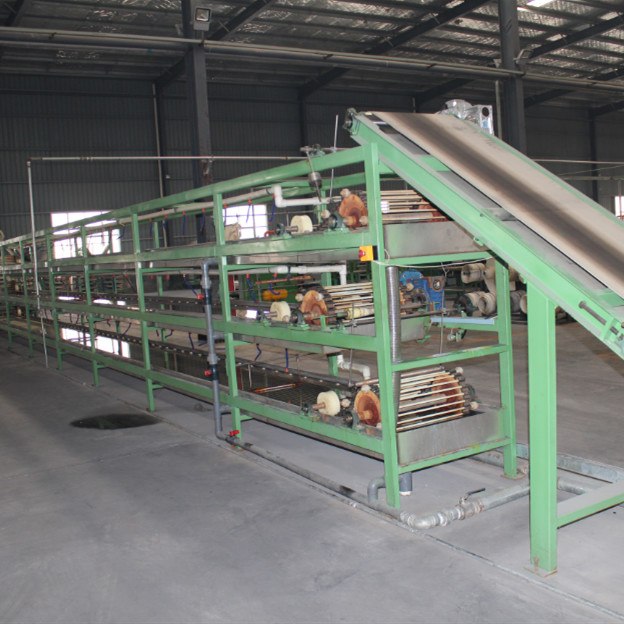

Machine details
About my company
Qingdao Beishun Environmental Protection Technology Co., Ltd. is engaged in Environmental protection machinery, rubber machinery R & D and manufacturing enterprises, located in the west coast of Qingdao ---- Jiaonan city, Qingdao Economic and Technological Development Zone, adjacent to the former Bay near Qingdao Port and International Airport Liuting airport, excellent geographical location.
The company gathered a large number of the industry's outstanding technical and management personnel, advanced machining, heat treatment equipment and sophisticated detection equipment. With high-quality service, advanced equipment and strong technical force as the basis, through constant innovation and development, Beishun Environmental Protection Technology machinery has many customers at home and abroad to establish a stable business relationship, and gradually establish a brand in the same enterprise.
Companies adhere to the "first-class quality to gain market confidence, quality service to win customer satisfaction, continuous improvement of enterprise development seek to establish a corporate brand management excellence" business philosophy, in terms of quality, brand and work hard to achieve the strategic goals of common development.
Qingdao Beishun Environmental Protection Technology Co., Ltd. will carry forward the "realistic, innovative, rigorous and efficient" business style, good governance, integrity first, with a high sense of responsibility "in customer service, service to the community", with industry colleagues mutual benefit, for a better tomorrow.
Our packing and loading
|
