| Brand Name: | Beishun |
| Model Number: | XK-560 |
| MOQ: | 1set |
| Price: | USD 10000-90000 Set |
| Payment Terms: | TT，L/C |

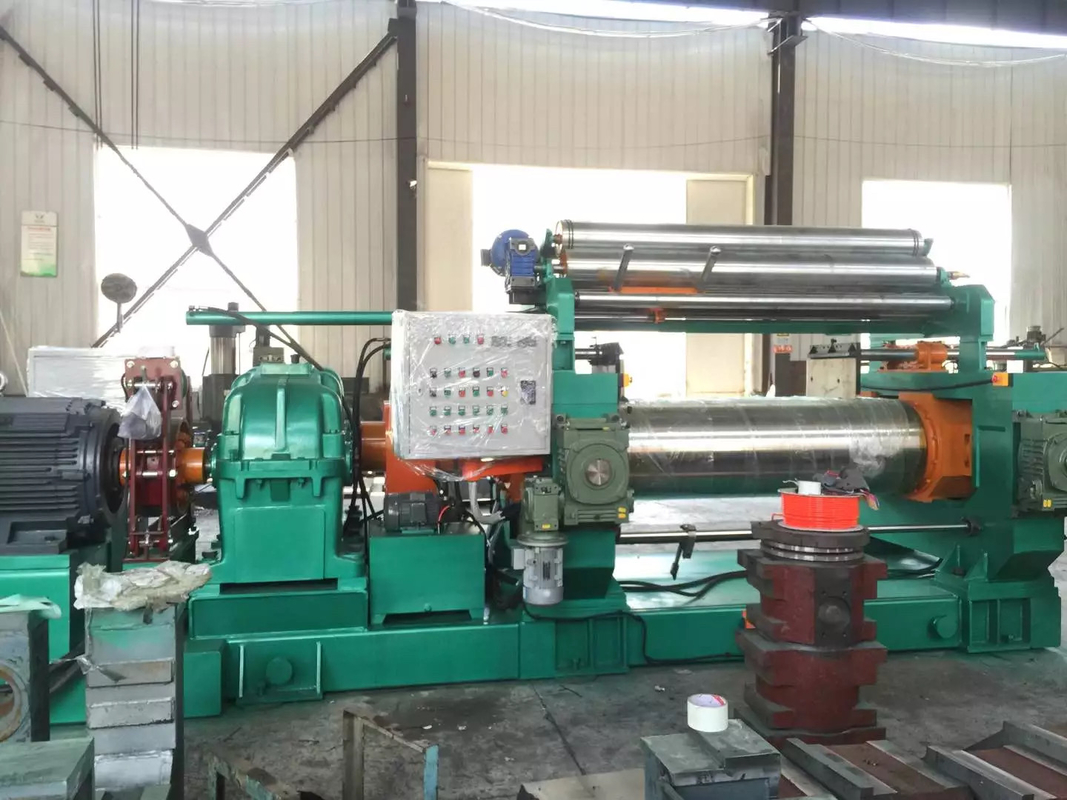

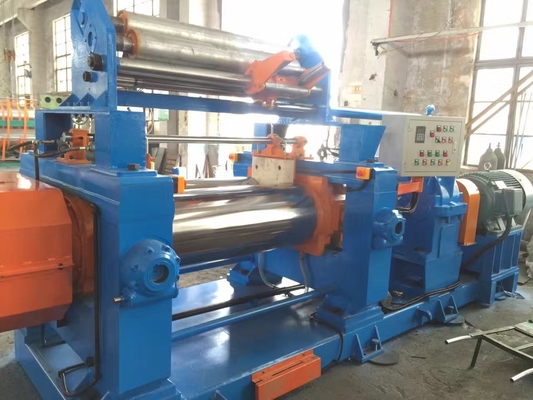

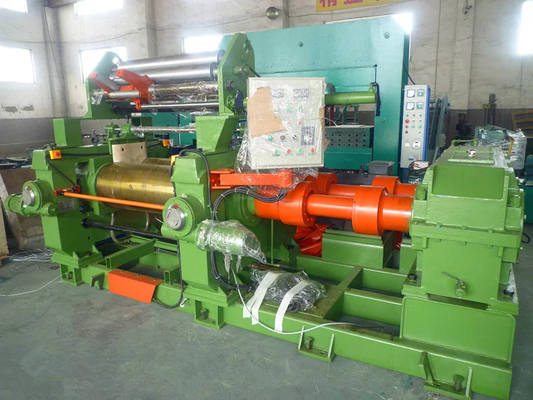

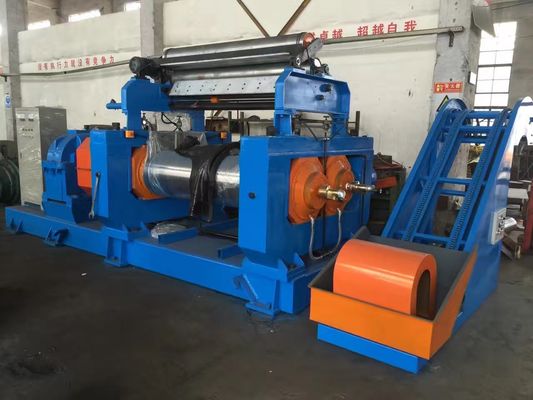

Automatic 22" Rubber Compound Mixing Mill Machine With Stock Blender
What is Rubber Mixing Mill Machine?
The Rubber Mixing Mill Machine is a machine used to process natural rubber into various compounds. Two horizontally opposed stainless steel rolls rotate in opposite directions towards each other at different speeds to mix the rubber and ingredients used to create the rubber compounds.
Machine specification of Rubber Mixing Mill Machine
| XK-160 | φ160x320 | 8.95 | 1:1.37 | 5.5 | 1500x750x1500 |
| XK-230(AZ) | φ230x600 | 10.21 | 1:1.19 | 15 | 2800×1200×1120 |
| XK-250(AZ) | φ250x620 | 14.1 | 1:1.17 | 18.5 | 3400×1500×1650 |
| XK-300 | φ300x750 | 15.1 | 1:1.25 | 22 | 3500×1600×1700 |
| XK-360 | φ360x900 | 16.25 | 1:1.25 | 30 | 3780×1850×1750 |
| XK-400 | φ400x1000 | 18.65 | 1:1.27 | 37 | 4350×1850×1785 |
| XK-450 | φ450x1200 | 24.26 | 1:1.27 | 55 | 5200×2380×1840 |
| XK-560(AZ) |
φ560x1530 φ510x1530 |
27.72 | 1:1.2 | 90 | 5845×2284×1978 |
| XK-550B | φ550x1500 | 27.94 | 1:1.22 | 110 | 5870×2475×2045 |
| XK-610 | φ610x2000 | 28.42 | 1:1.17 | 160 | 7070×2290×1840 |
| XK-660 | φ660x2130 | 28.6 | 1:1.24 | 245 | 7465×3662×2080 |
| XK-710 | φ710x2200 | 30 | 1:1.09 | 280 | 7500×3500×1800 |
Application scope of open two roll rubber mixing mill
Mainly used in rubber and its products, plastics, and its products, polyolefin, PVC, film, coil, profile production, polymer blending, pigments, color masterbatch, stabilizers, stabilizers, and other industries, its main purpose is to test raw materials After mixing, its physical properties change and contrast. For example, color dispersibility, light transmittance, the gloss of the material surface, and its strength, plasticity, hardness, etc. after adding auxiliary materials.
Product description
1. The Two Roll Mixing Mill For Compounding Rubber occupies a small area and the overall length is only 3/4 that of normal rubber mixing mills.
2. The rubber blending mixing mill is equipped with a hardened gear reducer. Gears are all treated by carburizing and quenching techniques. The gear surface is carefully grinded as well. Such processes increase machining accuracy, wear-resistance and reduce noise.
3. The friction gears of the rubber mixing mil sit between the roller and reducer to avoid cooling water and condensate water from entering into lubricating oil trough.
4. The rubber mixing mill is equipped with a stock blender that is usually only used in rubber kneading machines.The advantages of this include a decrease in machine labor intensity and it reduces the mixing time and working efficiency. The hydraulic gluing process also maximizes operation stability.
5. Adoption of a rolling bearing for the roller helps to minimize friction. A labyrinth seal, instead of an oil seal is used to prevent the inconvenience of replacing the framework oil seal while maintaining.
|
