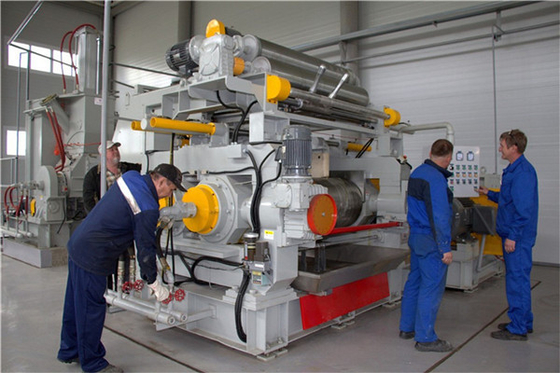

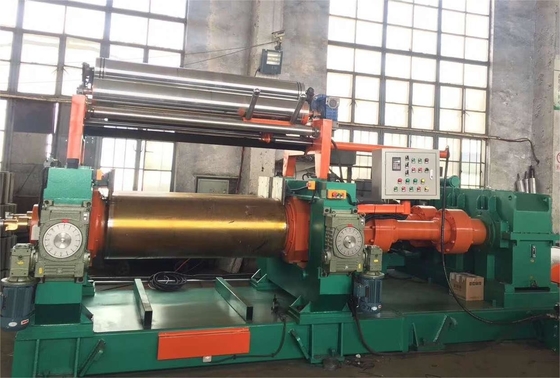

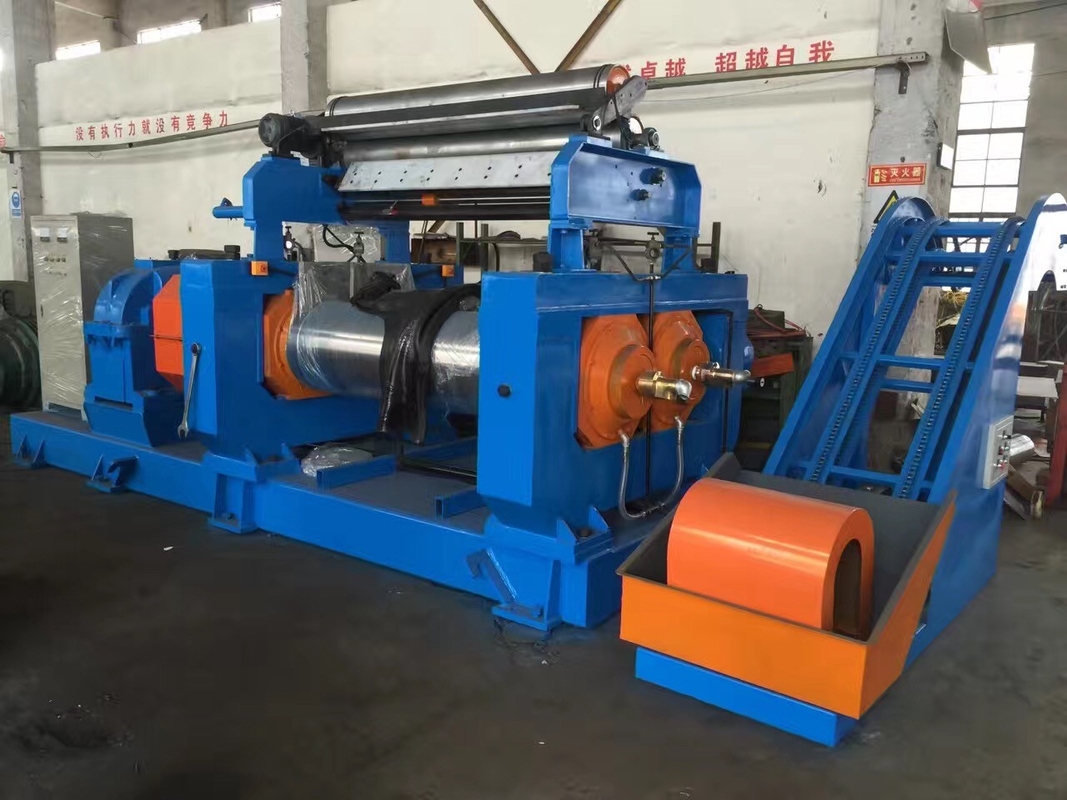

24" Rubber Mixing Mill Machine 8.95 Stock Blender Rubber Mixing Mill

24" Stock Blender Two Roll Mixing Mill For Rubber Compounding

Applications

The rubber mixing mill machine is widely used in the milling process of rubbers and rubber products. The rubber mixing mill machine is mainly used for mixing raw rubber, rubber, thermoplastic or ethylene-vinyl acetate with chemicals, heating, pressing, breaking, plasticizing and mixing. The final material can be transported to rubber calender, batch off cooler, rubber extruder, rubber vulcanizing press or other processing machines for the heating, pressing, breaking, plasticizing and mixing of rubber or plastic products.

Machine specification of Rubber Mixing Mill Machine

The Main Features of This Rubber Mixing Mill:

1.Machine frame, gland and base are all welded through steel plates, after annealing, completely processed by precise machine tools. The whole machine frame, gland and base are all of strong rigidity, won’t deform in future heavy duty working process and the surface is smooth and anti-wear.

2.Rollers: the rolls’ surface is made of chilled cast iron, hard and anti-wear with the hardness of 68 ~ 72HSD. The rollers’ structure is hollow style.

3.The rubber mixing mill is equipped with a hardened gear reducer. Gears are all treated by carburizing and quenching techniques. The gear surface is carefully grinded as well. Such processes increase machining accuracy, wear-resistance and reduce noise.

4. The friction gears of the rubber mixing mil sit between the roller and reducer to avoid cooling water and condensate water from entering into lubricating oil trough.

5.Machine Safety Protection Device: In order to protect the safety of main parts of the mixing mill, we configure this rubber mixing mill with safety pad protecting device. When the mill works overload, the safety pad will break to avoid producing damage to main parts of the machine.

6.Brake Equipment: this rubber mixing mill adopts magnetic plug brake. Once the magnetic plug works, the rollers won’t rotate 1/5 circumference of roller.

7.Emergency Brake Equipment: in front and rear of the machine are equipped with 4 emergency stopping buttons and also in the mill base is equipped a Kick-style stop switch paying great attention to a full range of user security.

8.Rollers’ cooling method: Rollers’ internal is with spray cooling, the external connected to rotary joint.

9.Electrical Connection: Our electric control device is mainly composed of electric motor, brake solenoid, limit switches and electrical controlling. This device is installed on the mill base (including electric controlling system) along with the mill packed and transported together. Before the machine leaving the factory, the wire from the motor to electric control cabinet is connected. The customer only needs to connect the control cabinet wire to the power supply before using the machine.
