Column Type Hydraulic Vulcanizing Press Vulcanizing Press Machine For Rubber Plug / Seal / Seal Strip Products

Brand Name:	Beishun
Model Number:	XLB-750X750X2/200T
MOQ:	1set
Price:	Negotiable
Packaging Details:	Wooden box/container
Payment Terms:	T/T,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao，China

Certification:

ISO/CE/SGS

Heating System:

Oil Or Steam Or Electrical

Structure:

Column Or Frame

Control Method:

PLC Control

Heaing Plates:

#45 Steel

Cylinder Material:

Cast Steel

Application:

Vulcanizing To Be Final Product,Vulcanizing Rubber Products

Supply Ability:

30sets/month

Highlight:

Column Type Hydraulic Vulcanizing Press

PLC Hydraulic Vulcanizing Press

Vulcanizing Press Machine For Rubber Products

Product Description

Column Type Hydraulic Vulcanizing Press For Making Rubber Products

Applications
We provide a wide range of rubber vulcanizing hot press, ranging from 15 to 10,000 tons mostly made-to-order products. We provide turnkey solution and technical service, for complete machinery installation and production line planning. The Rubber Plate Vulcanizing Press for rubber is the main molding equipments for various of rubber molding products and non-molding products, The Rubber Plate Vulcanizing Press is also suitable for molding to thermosetting plastic, bubble, resins, Bakelite, sheet metal, building materials and other molding products, with simple structure, high pressure, wide applicability, and high efficiency. It is also named Rubber mat vulcanizing press, rubber molding machine, rubber vulcanizing machine, rubber vulcanizer, rubber vulcanizing press, rubber moding press, hydraulic press, hot press, etc.

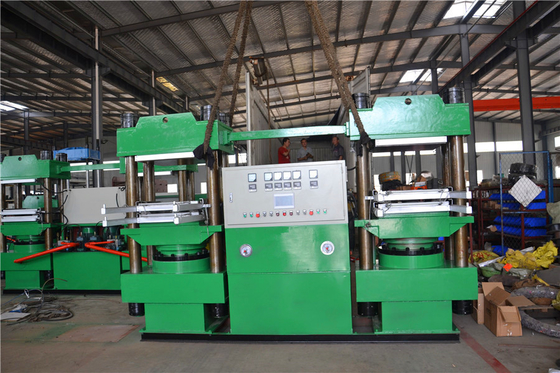

Column Type Hydraulic Vulcanizing Press Vulcanizing Press Machine For Rubber Plug / Seal / Seal Strip Products 0

Features of Automatic PLC Rubber Vulcanizing Press Machine, Hydraulic Vulcanizer Press Machine, floor Mat/rings gasket Moulding Curing Press
1.This rubber vulcanizing press machine with PLC control, high production efficiency.

2. The presses heating method with steam heating or electrical heating we can as our clients required to design.

3. Press with automatic warning device, high safety and convenient.

4. The rubber machines used for rubber vulcanization are known as rubber vulcanizing machines.

5. This rubber vulcanizing press machine strengthens raw rubber by chemically treating it and make rubber harder and stronger.

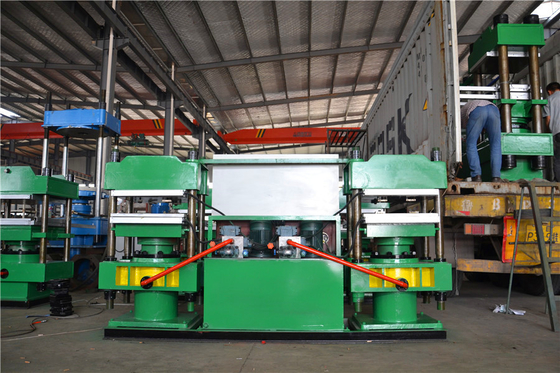

Column Type Hydraulic Vulcanizing Press Vulcanizing Press Machine For Rubber Plug / Seal / Seal Strip Products 1

Machine specification of Rubber Vulcanizing Press Machine

Model	Total Pressure (MN)	Daylight (mm)	Working Layer No.	Piston Stroke (mm)	Main Motor Power (KW)	Overall Diameter (L x W x H) (mm)
XLB-350×350×2	0.25	125	2	250	2.2	1200×580×1200
XLB-400×400×2	0.50	125	2	250	2.2	1400×500×1400
XLB-600×600×2	1.00	125	2	250	2.2	1880×820×1680
XLB-750×850×4	1.60	125	4	500	3	1730×930×2460
XLB-900×900×2	2.5	200	2	400	4	2345×960×1385
XLB-1200×1200×1	3.15	300	1	300	4	2800×1300×2300
XLB-1300×2000×1	5.60	400	1	400	8	2000×1860×2500
XLB-1500×1500×1	8.00	800	1	800	16.5	2200×2200×4300
XLB-1500×2500×1	15.00	400	1	400	11	3000×2500×3300
XLB-2000×2000×1	20.00	400	1	400	11	3600×3000×3300

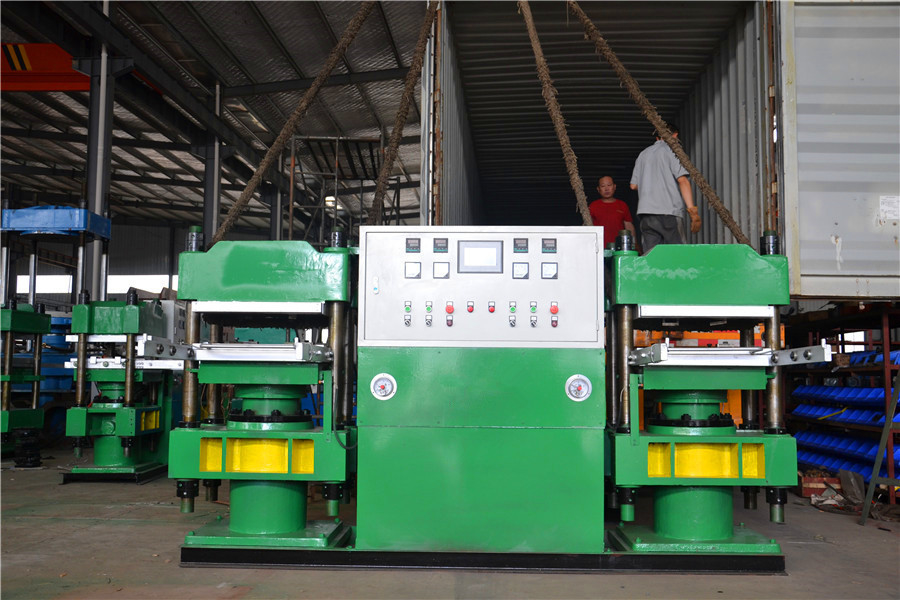

Column Type Hydraulic Vulcanizing Press Vulcanizing Press Machine For Rubber Plug / Seal / Seal Strip Products 2

Flow of machine motions:
Initial state →Put the material into the mould, reposit the ejector cylinder →Load the mould →Close the mould quickly→ Clamp the mould slowly, increase pressure →Exhaust→Vulcanization start →Vulcanization finish→Open mould quickly→ Pushing out the mould →Ejector cylinder works, and separate mould and product→Take out the product
