Column Type Hydraulic Vulcanizing Press with PLC Control and Multiple Heating Systems for Rubber Products
Product Summary
Column Type Hydraulic Vulcanizing Press Machine For Rubber Plug / Seal / Seal Strip Products Product Overview Our column type hydraulic vulcanizing press is designed for manufacturing various rubber products including plugs, seals, and seal strips. We offer custom solutions ranging from 15 to 10,000 ...
Basic Properties
Place of Origin:
Qingdao
Brand Name:
Beishun
Certification:
ISO/CE
Model Number:
XLB-750X750X2/200T
Trading Properties
Minimum Order Quantity:
1set
Price:
Negotiable
Payment Terms:
T/T,L/C
Supply Ability:
30sets
Product Description

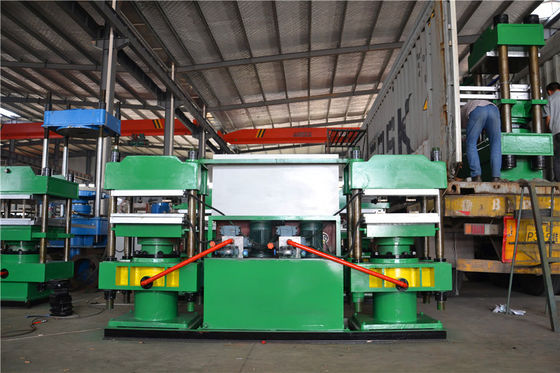

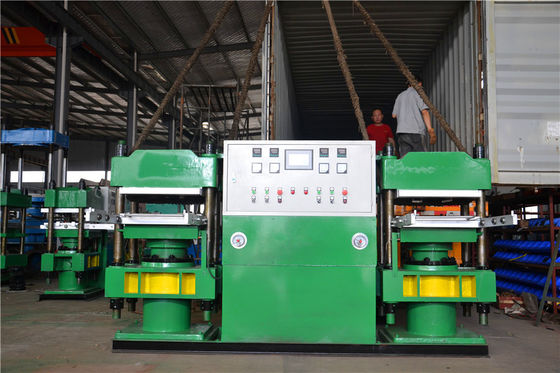

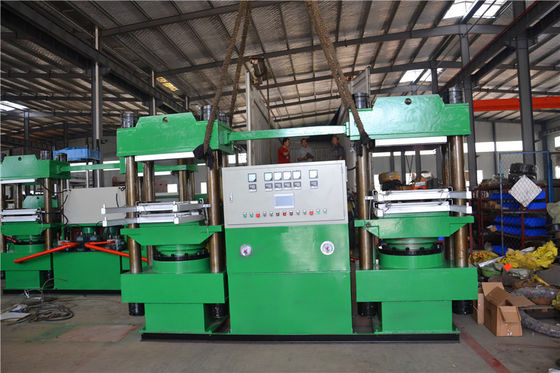

Column Type Hydraulic Vulcanizing Press Machine For Rubber Plug / Seal / Seal Strip Products
Product Overview
Our column type hydraulic vulcanizing press is designed for manufacturing various rubber products including plugs, seals, and seal strips. We offer custom solutions ranging from 15 to 10,000 tons with comprehensive technical support and production line planning services.
Applications
This versatile vulcanizing press serves as the primary molding equipment for rubber products and is equally suitable for thermosetting plastics, resins, sheet metal, building materials, and other molding applications. Known for its simple structure, high pressure capability, and wide applicability.
Key Features
- PLC control system for high production efficiency
- Flexible heating options: steam or electrical heating available
- Automatic warning device for enhanced safety and convenience
- Specialized for rubber vulcanization processes
- Chemically treats raw rubber to increase hardness and strength
Technical Specifications
| Model | Total Pressure (MN) | Daylight (mm) | Working Layer No. | Piston Stroke (mm) | Main Motor Power (KW) | Overall Dimensions (L x W x H) (mm) |
|---|---|---|---|---|---|---|
| XLB-350*350*2 | 0.25 | 125 | 2 | 250 | 2.2 | 1200*580*1200 |
| XLB-400*400*2 | 0.50 | 125 | 2 | 250 | 2.2 | 1400*500*1400 |
| XLB-600*600*2 | 1.00 | 125 | 2 | 250 | 2.2 | 1880*820*1680 |
| XLB-750*850*4 | 1.60 | 125 | 4 | 500 | 3 | 1730*930*2460 |
| XLB-900*900*2 | 2.5 | 200 | 2 | 400 | 4 | 2345*960*1385 |
| XLB-1200*1200*1 | 3.15 | 300 | 1 | 300 | 4 | 2800*1300*2300 |
| XLB-1300*2000*1 | 5.60 | 400 | 1 | 400 | 8 | 2000*1860*2500 |
| XLB-1500*1500*1 | 8.00 | 800 | 1 | 800 | 16.5 | 2200*2200*4300 |
| XLB-1500*2500*1 | 15.00 | 400 | 1 | 400 | 11 | 3000*2500*3300 |
| XLB-2000*2000*1 | 20.00 | 400 | 1 | 400 | 11 | 3600*3000*3300 |
Operation Process
Initial state
→ Put material into mould, reposition ejector cylinder
→ Load the mould
→ Close mould quickly
→ Clamp mould slowly, increase pressure
→ Exhaust
→ Vulcanization start
→ Vulcanization finish
→ Open mould quickly
→ Push out the mould
→ Ejector cylinder separates mould and product
→ Take out the product
Product Details
Highlight:
Column Type Hydraulic Vulcanizing Press
,PLC Hydraulic Vulcanizing Press
,Vulcanizing Press Machine For Rubber Products
Heating System:
Oil Or Steam Or Electrical
Structure:
Column Or Frame
Control Method:
PLC Control
Heaing Plates:
#45 Steel
Cylinder Material:
Cast Steel
Application:
Vulcanizing To Be Final Product,Vulcanizing Rubber Products
