22 Inches Rubber Mixing Mill Machine With Automatic Bearing Lubrication And Stock Blender
Product Summary
22 Inches Bearing Rubber Mixing Mill Machine with Stock Blender This advanced two-roll open compound mixing mill with integrated stock blender is engineered for precision rubber compounding and mixing applications. Machine Construction The rubber mixing mill machine features a robust construction ...
Basic Properties
Place of Origin:
Qingdao
Brand Name:
Beishun
Certification:
ISO/CE
Model Number:
XK-560
Trading Properties
Minimum Order Quantity:
1set
Price:
Negotiable
Payment Terms:
T/T,L/C
Supply Ability:
30sets
Product Description

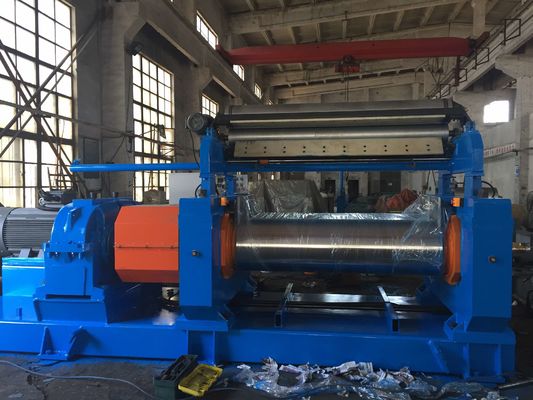

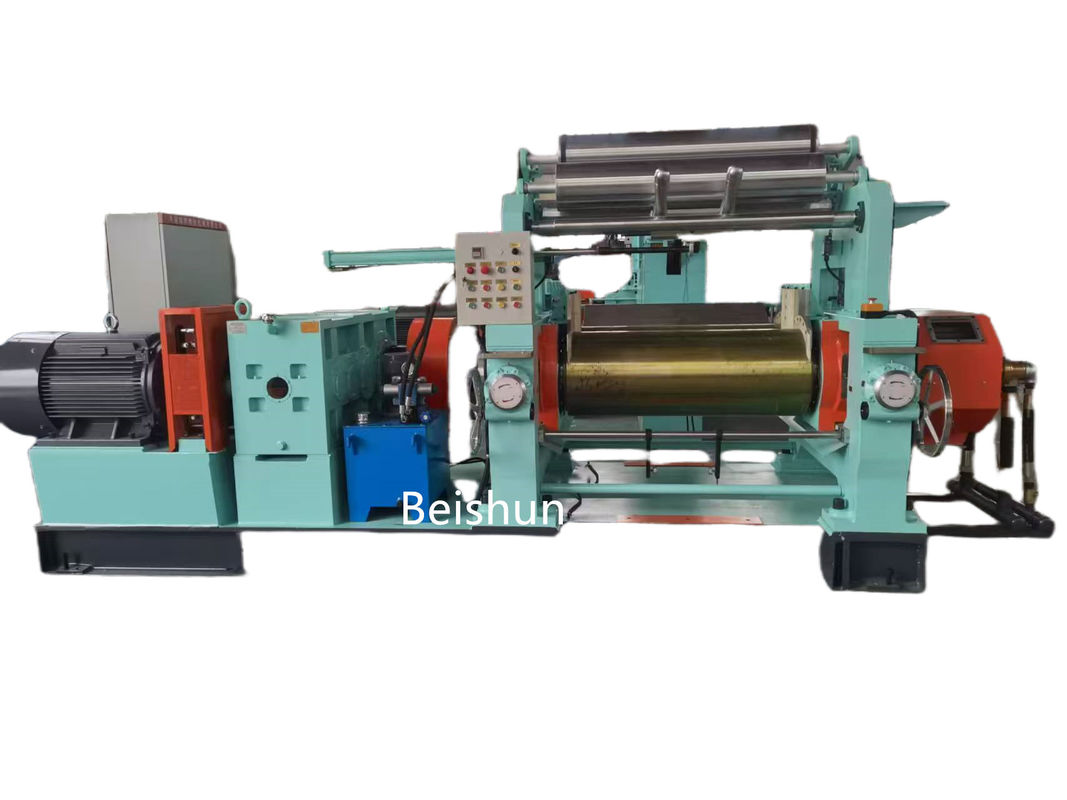

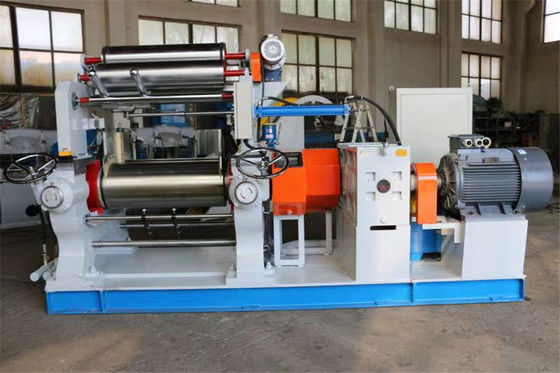

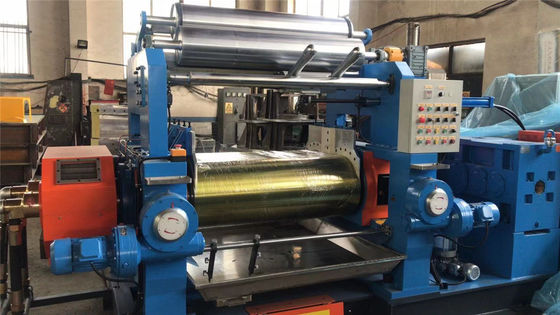

22 Inches Bearing Rubber Mixing Mill Machine with Stock Blender
This advanced two-roll open compound mixing mill with integrated stock blender is engineered for precision rubber compounding and mixing applications.
Machine Construction
The rubber mixing mill machine features a robust construction including base, rack, gland, rollers, bearings, transmission device, lubrication system, decelerator, roller temperature adjustment, emergency shutdown, and brake rigging.
Applications
Widely used in rubber milling processes for mixing raw rubber, rubber compounds, thermoplastic materials, and ethylene-vinyl acetate with chemicals. Performs heating, pressing, breaking, plasticizing, and mixing operations. Final materials can be transported to calenders, batch off coolers, extruders, vulcanizing presses, and other processing equipment.
Technical Specifications
| Model | Roller Size | Speed Ratio | Power (kW) | Dimensions (mm) |
|---|---|---|---|---|
| XK-160 | φ160x320 | 1:1.37 | 5.5 | 1500x750x1500 |
| XK-230(AZ) | φ230x600 | 1:1.19 | 15 | 2800*1200*1120 |
| XK-250(AZ) | φ250x620 | 1:1.17 | 18.5 | 3400*1500*1650 |
| XK-300 | φ300x750 | 1:1.25 | 22 | 3500*1600*1700 |
| XK-360 | φ360x900 | 1:1.25 | 30 | 3780*1850*1750 |
| XK-400 | φ400x1000 | 1:1.27 | 37 | 4350*1850*1785 |
| XK-450 | φ450x1200 | 1:1.27 | 55 | 5200*2380*1840 |
| XK-560(AZ) | φ560x1530 φ510x1530 | 1:1.2 | 90 | 5845*2284*1978 |
| XK-550B | φ550x1500 | 1:1.22 | 110 | 5870*2475*2045 |
| XK-610 | φ610x2000 | 1:1.17 | 160 | 7070*2290*1840 |
| XK-660 | φ660x2130 | 1:1.24 | 245 | 7465*3662*2080 |
| XK-710 | φ710x2200 | 1:1.09 | 280 | 7500*3500*1800 |
Key Features
- Hardened gear reducer with carburizing and quenching treatment for enhanced machining accuracy, wear-resistance, and reduced noise
- Friction gears positioned between roller and reducer to prevent water contamination of lubricating oil
- Integrated stock blender reduces labor intensity, mixing time, and improves working efficiency with hydraulic gluing for maximum stability
- Rolling bearings minimize friction while labyrinth seals eliminate the need for frequent framework oil seal replacement
Frequently Asked Questions
What is the delivery time for the Batch Off Rubber Cooling Machine?
Custom-designed machines require 35-45 days from engineering design to production completion.
How does your factory handle quality control?
We implement comprehensive quality control throughout production. Every machine undergoes full assembly and thorough testing before shipment.
What is the machine quality guarantee?
Two-year quality guarantee using world-renowned brand components to ensure optimal performance.
Do you provide overseas installation and commissioning services?
Yes, we offer overseas service and technical support. Small machines typically require 3-5 days installation, while larger plants may need approximately 30 days.
How can I trust you to deliver the right machine as ordered?
We maintain regular communication with production updates and photos throughout the manufacturing process. Our company culture prioritizes innovation, quality, integrity, and efficiency with proven collaborations with world-renowned rubber manufacturers.
How can we visit your facility?
We are located in Qingdao City, Shandong province, China, near Qingdao Liuting Airport. We provide airport pickup services for visiting clients.
Product Details
Highlight:
22 Inches Bearing Rubber Mixing Mill Machine
,Calender Rubber Mixing Mill Machine SGS
,Two Roll Mixing Mill With Stock Blender Beishun
Product Name:
Rubber Mixing Mill
Roller:
Hardness 72 Chilled Cast Iron
Rubber Strip Cutter:
Pneumatic/Motorized
Bearing Lubrication:
Automatic
Gap Adjustment:
Manual Or Automatic Or Hydraulic
Safety Device:
Hydraulic Disc-Brake / Safety Button / Foot Brake
