Tyre Bead Waste Tyre Recycling Machine Single Hook Tire Debeader Machine

Brand Name:	Beishun
Model Number:	LSJ-1200
MOQ:	1set
Price:	Negotiable
Packaging Details:	Wooden box/container
Payment Terms:	T/T,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao，China

Certification:

ISO/CE/SGS

Type:

Tire Steel Wire Drawing Machine

Voltage:

Customer Request

Core Components:

Bearing, Motor

Tire Machine Type:

Tire Recycling Machine

Key Selling Points:

Automatic

Power (kW):

Supply Ability:

30sets/month

Highlight:

SGS Waste Tyre Recycling Machine Beishun

Tyre Bead Waste Tyre Recycling Machine SGS

Single Hook Tire Debeader Machine SGS

Product Description

Tyre Bead Wire Separating Recycling Machine Single Hook Tire Debeader Machine

Machine specification of Tire Shredder Machine

Single hook tyre debeader machine		Double hook tyre debeader machine
Capacity (tires/h)	40-60	Capacity (tires/h)	60-120
Adapt tire size (mm)	≤ 1200	Adapt tire size (mm)	≤ 1200
Powder (kw)	15	Powder (kw)	30
Pulling force (T)	15	Pulling force (T)	30
Size (mm)	3890×1850×3640	Size (mm)	2250×1650×1500
Weight (T)	1.8	Weight (T)	2.5

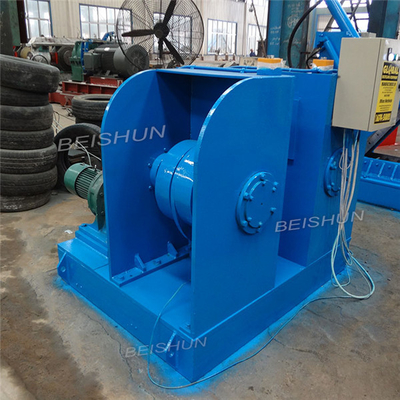

Tyre Bead Waste Tyre Recycling Machine Single Hook Tire Debeader Machine 0

Technical parameters of Single Hook Tyre Wire debeader machine/ Full Automatic tyre recycling machine

Tire debeader	The first step in tire recycling procession
	Heavy duty body
	Hooks and cross pulling die made of 45# steel, tempered and quenched
	Equipped with protection frame avoiding the dangers during working
	Two series: hydraulic one and mechanic one
	Easy to operate and change spare parts (hooks and cross pulling die)
Whole tire cutter	Cutting tires into pieces before shredding
	Small tire pieces are easier to process in shredder
	Knives made of high quality YG-20 steel, long using time
	Hydraulic control
	One clamping cylinder and one cutting cylinder
	Equipped with a roller platform to process big tires
Wholetireshredder	The high-capacity shredder was specially developed for direct size reduction of tires into cleanly cut tire chips, size 50x50 mm. cutting shafts for the production of larger tire chips are available high torque at low speed cut even the strongest tires into pieces.
	All construction characteristics are designed for continuous operation in order to achieve highest throughput rates at lowest costs.
	Extremely precise tolerances between the cutting knives produce cleanly cut tire chips at low energy consumption.
	The cutting knives made of high quality alloy steel can be re-sharpened and reused which increases the service life and reduces the operating costs.
	The complete cutting chamber is lined with hard wear plates.
	Large doors allow for easy access into the cutting chamber.
	The shear between the two rollers will make tire chips into powders as well loosen rubbers, steels and textiles
Rubber Crusher	Roller body made of cast steel
	Surface of roller made of alloy steel, welded when worn out
	One flat surface roller and one teethed roller, high throughput of powders
	Bottom made of cast iron
	Emergency stop when overload
	Distance between the two rollers can be adjusted.
	Hard gear gearbox
	Equipped with screening machine, magnetic separator and fiber separator, 99% purified rubbers will be got.
Magneticseparator	Muti-stage belt style magnetic separator can reach more purified rubbers
	Separated steels will be in one place, easy to collect
	Permanent magnet, no more power consumption
Fiber separator	After the grinder, the nylon wires will be grinded into fluff; According to centrifugal force, density difference, the fluff will be separated. The spin fans inside the cyclone barrel driven by the motor throw the compounds to the wall, at this time, light fluff will be upwards and fall down into the inside barrel.

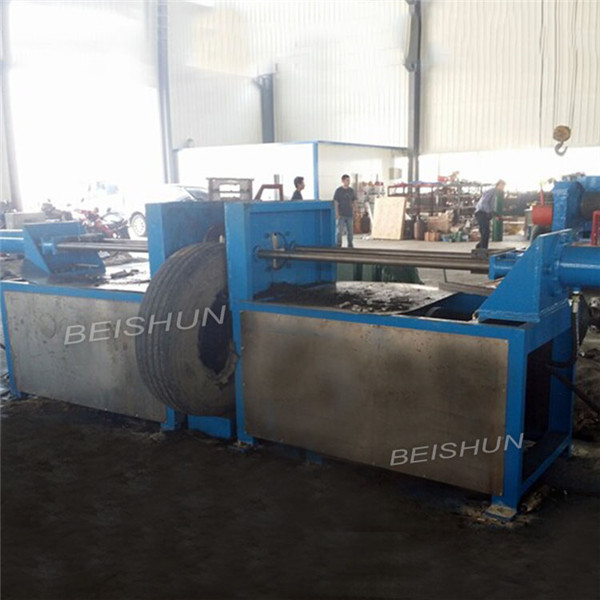

Tyre Bead Waste Tyre Recycling Machine Single Hook Tire Debeader Machine 1
