Rubber Cutting Machine

Hydraulic Rubber Cutting Machine XQL Series with Single Piston and Automatic Control for Rubber Bale Cutting

All Category

Rubber Vulcanizing Press Machine

Batch Off Rubber Cooling Machine

Motorcycle Tyre Making Machine

Conveyor Belt Vulcanizing Machine

Rubber Machine Parts

Mr. Alexey Pan

info@beishunchina.com

0086 15154222850

Contact Now

Hydraulic Rubber Cutting Machine XQL Series with Single Piston and Automatic Control for Rubber Bale Cutting

Brand Name:	Beishun
Model Number:	XQL-160
MOQ:	1set
Price:	Negotiable
Packaging Details:	Wooden box/20GP/40GP
Payment Terms:	T/T,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao

Certification:

ISO/CE

Power Source:

Hydraulic

Material Of Blade:

9Crsi

Speed:

Can Be Adjusted

Motor:

Frequency Control

Applicable Industries:

Manufacturing Plant, Rubber Machinery

Cutting Stroke(mm):

Customer Request

Supply Ability:

30sets

Highlight:

1000mm Hydraulic Rubber Cutting Machine SGS

1000mm automatic rubber cutting machine Beishun

SGS Single Piston Rubber Bale Cutter

Product Description

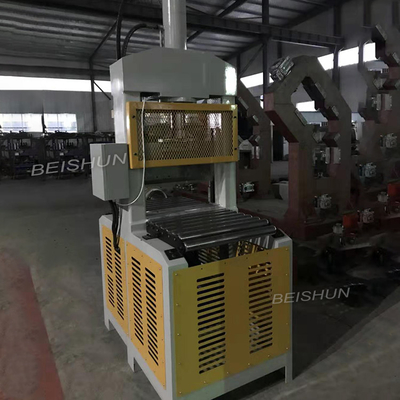

Hydraulic Rubber Cutting Machine Single Piston Rubber Bale Cutter Automatic

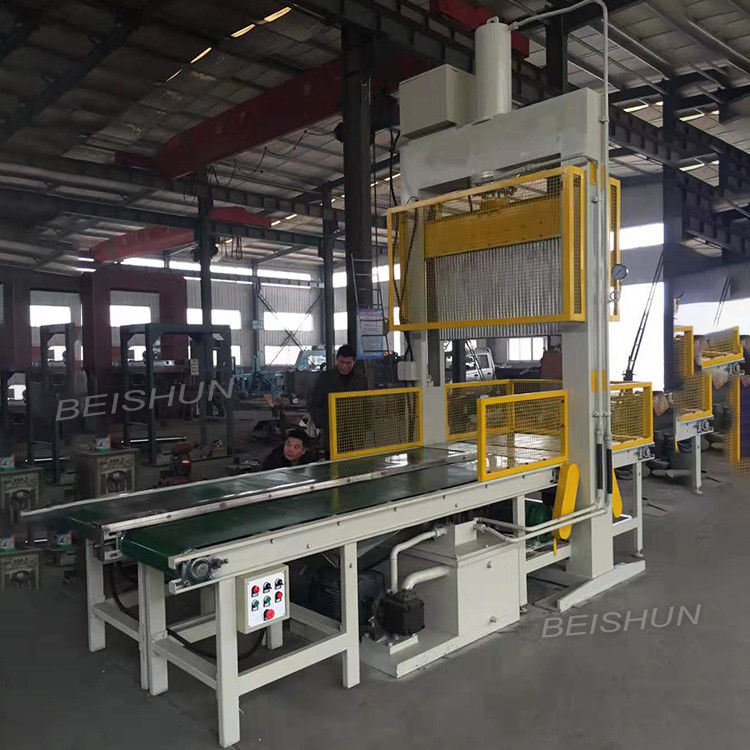

Vertical Hydraulic Single Piston Rubber Bale Cutter Rubber Cutting Machine

Application

This rubber cutter is mainly used to cut natural rubber, synthetic rubber and other plastic materials. It is especially suitable for installation near rubber mixers to cut small pieces of rubber.

Single Knife Vertical Rubber Cutter Features

High hardness and high precision circular knife cutting with pneumatic feed and pneumatic tailstock (with over pressure protection device)
Replaceable cutting spindle steering to accommodate different cutting methods
Optional feeding diameter increase to ø300mm with additional drive motor and reducer for circular knife parts
Precision linear guide bearing installed in knife seat for stable cutting and beautiful finished edges
Optional sword-type flat knife slitting structure for manual cutting functionality
PE hose protection on cutting spindle to prevent blade bruising
Hexagon positioning shaft allows setting six basic slitting widths with accurate multiple cutting width locations

Machine Specifications

Model	XQL-80	XQL-160	XQL-200
Knife Width (mm)	660	1000	1500
Knife Stroke (mm)	680	680	1200
Diameter of the Piston (mm)	150	150	600
Time Taken by the Stroke (s)	16-25	16-25	16-25
Motor Power (KW)	5.5	7.5	11
Overall Dimension (mm) (LWH)	19007202580	22407202580	286015003560
Machine Weight (Kgs)	1000	1600	2600
Remarks	Can be equipped with working table according to customers' requirements

Frequently Asked Questions

1. Delivery time of the Batch Off Rubber Cooling Machine?

This is specially designed machine according to your specific requirement. From engineer designing to production completion, it needs about 35 to 45 days.

2. What does your factory do regarding quality control?

We pay much more importance to quality control from the very beginning to the end of production. Every machine will be fully assembled and carefully tested before shipment.

3. What's the machine quality guarantee?

Quality guarantee time is two years. We choose world famous brand components to keep our machine in perfect working condition.

4. Are you able to give installation and commissioning overseas? How long time will it take?

Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation. Small machine usually takes within 3~5 days. Big plant usually takes about 30 days.

5. How can I trust you to deliver the right machine as I ordered?

We will absolutely deliver a good quality machine as we discussed and confirmed in the order. At the same time, we regularly send the production schedule and machine photos during the production process. The core of our company culture is innovation, quality, integrity and efficiency. Also we have had many good cooperation with world famous rubber production manufacturers. If you come to our factory, we can show you the users around us.

6. How can we go to your side?

We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao liuting airport. We will pick up you at the airport.

Tags:
