DC53 Mould Steel Rubber Cutting Machine Has Low Noise And Clean Cutting
Product Summary
Product Description Our Advantages: 1. More than 30 years experience in designing & manufacturing of rubber machines. 2. Jerry-build & inferior quality are never allowed. 3. Powerful technical team for customized service & professional oversea technical guide. 4. Strong processing capability for the ...
Basic Properties
Place of Origin:
Qingdao
Brand Name:
Beishun
Certification:
ISO/CE
Model Number:
XQL-180
Trading Properties
Minimum Order Quantity:
1set
Price:
Negotiable
Payment Terms:
T/T,L/C
Supply Ability:
30sets
Product Description
Product Description
Our Advantages:
1. More than 30 years experience in designing & manufacturing of rubber machines.
2. Jerry-build & inferior quality are never allowed.
3. Powerful technical team for customized service & professional oversea technical guide.
4. Strong processing capability for the most efficient machine delivery.
XQL-80 Rubber Bale Cutter, Rubber Bale Cutting Machine, Rubber Cutting Machine
Machine Usage:
Rubber bale cutter is one of the raw material processing machines of rubber factory. It's mainly used in cutting the natural rubber or synthetic rubber into easy mixing small blocks to conform the requirements.
Machine Introduction:

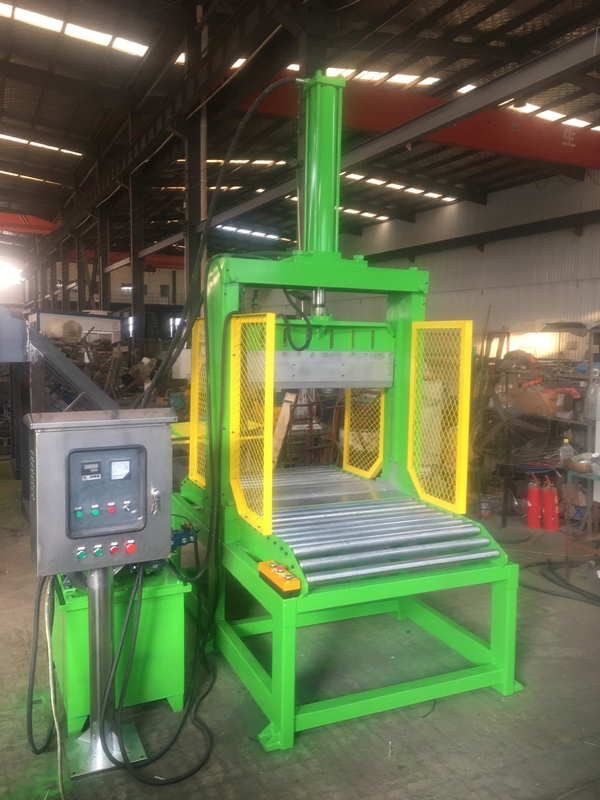

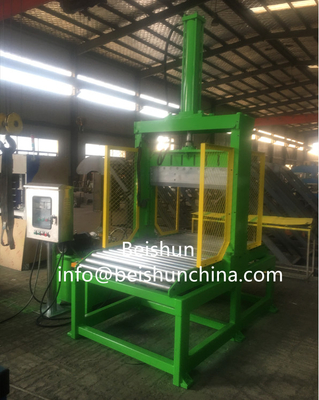

XQL-80 single knife rubber bale cutter mainly consists of motor, vane pump, magnetic exchange valve, overflow valve, slave ram, oil pressure gauge pipe, hydro-cylinder support, rubber cutting knife, rack, conveying groove etc. Oil cylinder uses standard hydro-cylinder; Rack use high quality welded steel frame; the rubber cutting knife is made of 9CrSi or T8A, through heat treatment its hardness reaches HRC60. Below the cutting knife is nylon board to protect the knife edge.
When cutting rubber, raw rubber bag (cold and raw rubber should be preheated before thawing) put in the conveying groove, pushing it to the below of the cutting knife, then hands off the rubber blocks, press the button to start cutting rubber.
Machine Features:
1. Durable machine body with sufficient raw material applied.
2. Reliable machine quality with superior accessories chosen.
3. Latest machine design.
4. Less maintenance needed.
5. Easy installation.
6. Environment protection.
7. High safety configuration & humanization design.
8. High automation.
9. High efficiency and superior cutting performance.
10. Low power consumption & labor saving.
11. Low noise & long service life.
Technical Parameters:
Our Service:
1. Our engineer team can design customized machines for you and send the drawings for confirmation.
2. The wires' connection from control box to operation box is finished before delivery. The user only needs to connect the outside wire to the controlling box.
3. Each machine is tested running with load at our factory before delivery to guarantee each parts working well.
4. Foundation drawings, detailed machine assembly drawings & parts drawing, user guide and maintenance manual will be supplied before the delivery.
5. Custom clear documents required in destination port, such as B/L, commercial invoice, packing list, insurance policy, C/O will be supplied once upon the delivery.
6. Oversea technical support can be offered as per request.
Our Package & Delivery:
FAQ:
1. Delivery time of the rubber machines?
Normally it needs about 25 days to 3 months according to the ordered machines' size and quantity.
2. What does your factory do regarding quality control?
We have the most professional engineer team to design the correct machines at the beginning, equip with the most advanced processing device to process the machine parts during the production period and finally arrange the most experienced assembly workers to assemble and check the final machines to 100% guarantee the superior quality and stable performance of each machine.
3. How long is your machines' warranty period?
The warranty period for our machines is one year from the day of normal working at the user plant.
4. Are you able to give installation and commissioning overseas? How long time will it take?
Yes, we can supply overseas service and technical support at the user plant with the charge of the required cost.
Small machines normally takes within 1~3 days.
Large machines normally takes about 30 days.
5. How can we go to your side for a factory visit?
We are located in Qingdao City, Shandong province, China. The nearest airport is Qingdao liuting airport.
Please advise us your time schedule in advance for us to pick up you at the airport.
1. More than 30 years experience in designing & manufacturing of rubber machines.
2. Jerry-build & inferior quality are never allowed.
3. Powerful technical team for customized service & professional oversea technical guide.
4. Strong processing capability for the most efficient machine delivery.
XQL-80 Rubber Bale Cutter, Rubber Bale Cutting Machine, Rubber Cutting Machine
Machine Usage:
Rubber bale cutter is one of the raw material processing machines of rubber factory. It's mainly used in cutting the natural rubber or synthetic rubber into easy mixing small blocks to conform the requirements.
Machine Introduction:
XQL-80 single knife rubber bale cutter mainly consists of motor, vane pump, magnetic exchange valve, overflow valve, slave ram, oil pressure gauge pipe, hydro-cylinder support, rubber cutting knife, rack, conveying groove etc. Oil cylinder uses standard hydro-cylinder; Rack use high quality welded steel frame; the rubber cutting knife is made of 9CrSi or T8A, through heat treatment its hardness reaches HRC60. Below the cutting knife is nylon board to protect the knife edge.
When cutting rubber, raw rubber bag (cold and raw rubber should be preheated before thawing) put in the conveying groove, pushing it to the below of the cutting knife, then hands off the rubber blocks, press the button to start cutting rubber.
Machine Features:
1. Durable machine body with sufficient raw material applied.
2. Reliable machine quality with superior accessories chosen.
3. Latest machine design.
4. Less maintenance needed.
5. Easy installation.
6. Environment protection.
7. High safety configuration & humanization design.
8. High automation.
9. High efficiency and superior cutting performance.
10. Low power consumption & labor saving.
11. Low noise & long service life.
Technical Parameters:
| Model | XQL-80 | XQL-120 | XQL-125 |
| Cutting Knife Width(mm) | 660 | 760 | 760 |
| Cutting Knife Stroke(mm) | 680 | 680 | 780 |
| Total Pressure of Oil Cylinder(KN) | 80 | 120 | 125 |
| Time Taken of One Stroke | 14-16 | 13-16 | 14-16 |
| Motor Power(KW) | 5.5 | 5.5 | 5.5 |
| Overall Dimension (LxWxH) (mm) | 1800x600x2450 | 2300x1500x2530 | 2400x1500x2530 |
Our Service:
1. Our engineer team can design customized machines for you and send the drawings for confirmation.
2. The wires' connection from control box to operation box is finished before delivery. The user only needs to connect the outside wire to the controlling box.
3. Each machine is tested running with load at our factory before delivery to guarantee each parts working well.
4. Foundation drawings, detailed machine assembly drawings & parts drawing, user guide and maintenance manual will be supplied before the delivery.
5. Custom clear documents required in destination port, such as B/L, commercial invoice, packing list, insurance policy, C/O will be supplied once upon the delivery.
6. Oversea technical support can be offered as per request.
Our Package & Delivery:
FAQ:
1. Delivery time of the rubber machines?
Normally it needs about 25 days to 3 months according to the ordered machines' size and quantity.
2. What does your factory do regarding quality control?
We have the most professional engineer team to design the correct machines at the beginning, equip with the most advanced processing device to process the machine parts during the production period and finally arrange the most experienced assembly workers to assemble and check the final machines to 100% guarantee the superior quality and stable performance of each machine.
3. How long is your machines' warranty period?
The warranty period for our machines is one year from the day of normal working at the user plant.
4. Are you able to give installation and commissioning overseas? How long time will it take?
Yes, we can supply overseas service and technical support at the user plant with the charge of the required cost.
Small machines normally takes within 1~3 days.
Large machines normally takes about 30 days.
5. How can we go to your side for a factory visit?
We are located in Qingdao City, Shandong province, China. The nearest airport is Qingdao liuting airport.
Please advise us your time schedule in advance for us to pick up you at the airport.
Product Details
Highlight:
Low Noise Rubber Cutting equipment
,Clean Cutting Rubber Cutting Machine
,DC53 Mould Steel Rubber Cutting Machine
Cylinder Stroke:
Customized
Stroke Time:
14-16s
Applicable Industries:
Rubber
Port:
QINGDAO
Hs Code:
8477800000
Height Of Blade:
128mm
Size:
Customized
Rubber Compound:
Rubber Sheet Cutting Machine
Showroom Location:
India, Sri Lanka
Cutting Scope:
5-200mm Adjustable
Dia Piston:
150mm
Control System:
PLC
Waranty:
One Year Life
Cutting Thickness:
0.1-10mm
Operation Mode:
Manual/Semi-automatic/Automatic
