PLC Batch Off Rubber Cooling Machine Unit For Fans Cooling SGS

Brand Name:	Beishun
Model Number:	XPG-800
MOQ:	1set
Price:	Negotiable
Packaging Details:	Wooden box/container
Payment Terms:	T/T,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao，China

Certification:

ISO/CE/SGS

Type:

Batch Off Cooling Machine

Key Selling Points:

Automatic

Driven Type:

Electric

Rubber Sheet Thickness:

3-16mm

Voltage:

Customer Request

Adapted Max. Rubber Sheet Width:

According To Customer Requirements

Supply Ability:

30sets/month

Highlight:

Batch Off Rubber Cooling Machine PLC ISO

Batch Off Rubber Cooling Machine SGS CE

SGS Batch Off Machine Fans Cooling

Product Description

PLC Rubber Compound Sheet Batch Off Rubber Machine Unit For Fans Cooling

Application:

Rubber Sheet Batch Off Cooling Machine is used for cooling rubber compound sheet from rubber mixing mill machine, it is the downstream auxiliary to the mixer or the dispersion mixer. It is used for cooling, folding and depositing the rubber strip that comes from the open mills or twin screw extruder. It is designed to perform continuous operations of rubber slab conveying, separate applying, air cooling, drying, cutting and wig-wag stacking.

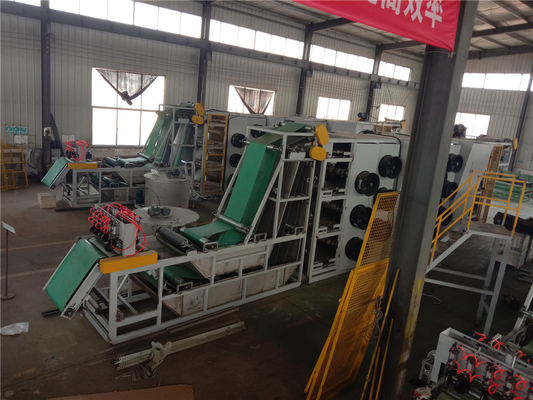

PLC Batch Off Rubber Cooling Machine Unit For Fans Cooling SGS 0

Machine specification of Rubber Sheet Batch Off Cooling Machine

Model	XPG-600	XPG-600	XPG-800	XPG-900
Type of Construction	Floor or Mesh-belt or Overhead Type
Max. Rubber Sheet Width(mm)	600	600	800	900
Rubber Thickness (mm)	4-10	2-12	4-10	6-12
Temperature of Cooling Rubber Sheet Higher Than Room (℃)	10	10	15	5
Friction Ratio (m/min)	3-24	3-24	3-35	4-40
Cooling Fans Number(set)	Customer Request

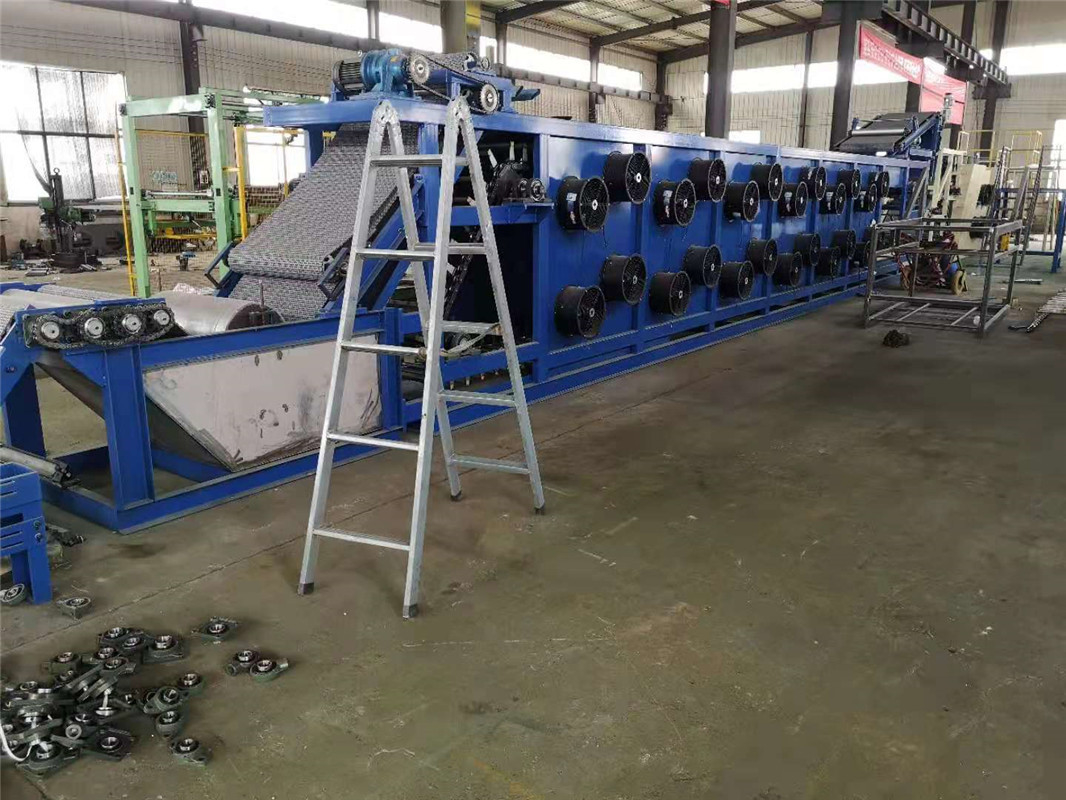

PLC Batch Off Rubber Cooling Machine Unit For Fans Cooling SGS 1

Description of spare part:

1. Take in device:

Used to take pressure in film, according to cylinder controlled by fluctuation, operation convenience. Taking in speed can be controlled by manual, it can be ascension. Take device adopts conveyor, the transmission system adopts frequency governor to control.

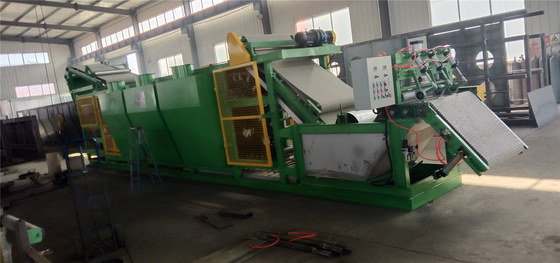

PLC Batch Off Rubber Cooling Machine Unit For Fans Cooling SGS 2

2. Soak device:
Equipped with triplet, manual rotary valve and pressure cylinder, adjust pressed roll according to cylinder control through the manual rotary valve, in order to Make discontinuous film compressed together and the film continuous a slice.

PLC Batch Off Rubber Cooling Machine Unit For Fans Cooling SGS 3

3. Leaching plasma device:
Function: Take over the film conveying equipment undertakes immersing, and carry on isolation agent. Equipped with cooling water pipe, through the cooling water source, continuous cooling liquid isolation, in order to control the temperature.

4. Take up device:
This device through the conveyor belt with isolation liquid film will be conveyed to the air cooling section gripping.

PLC Batch Off Rubber Cooling Machine Unit For Fans Cooling SGS 4

5. Wind cooling device:
Constitute: It is made of frame, cooling fans, hook rail and hang lever conveyor. Cooling fan selection adopts 20 axial fan, satisfy the requirements of film cooling; Hang lever are installed on the taper pin, film in hang lever.

PLC Batch Off Rubber Cooling Machine Unit For Fans Cooling SGS 5

6. Conveying laminated device:
Will the film into laminated measures, continuous fold in film seat.

PLC Batch Off Rubber Cooling Machine Unit For Fans Cooling SGS 6

7. Electrical control system:
(1) All the wires controlled by PLC, it easy for operation, reliable quality.

(2) The speed of production line can be through the inverter adjustment, make the film cooling line speed and host match.

(3) Fan control by the group control each motor are over-current protection circuit breaker, when a fault fan produced when the output signal of the fan, fault in all units and stop hair drier, just deal with a fault can be fan.

PLC Batch Off Rubber Cooling Machine Unit For Fans Cooling SGS 7
