| Brand Name: | Beishun |
| Model Number: | X(S)N-750 |
| MOQ: | 1set |
| Price: | USD5000-100000/set( custom made） |
| Packaging Details: | pallet ，packaging film, container |
| Payment Terms: | TT，L/C |

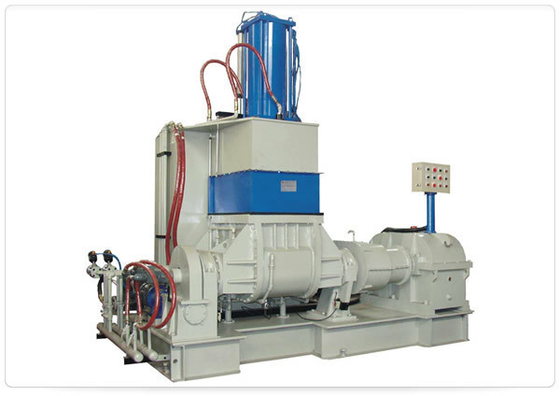

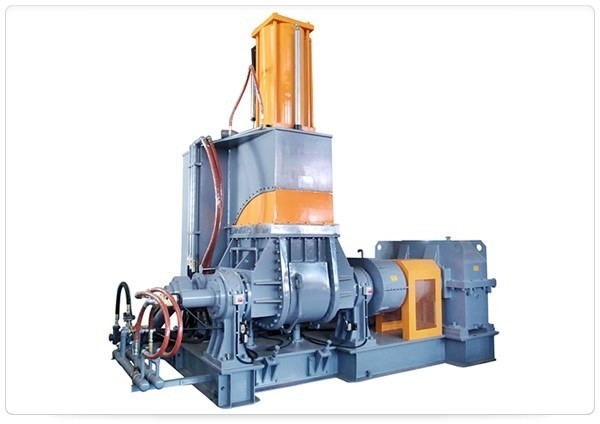

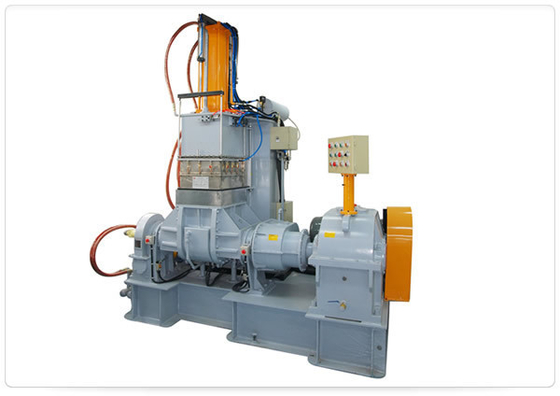

Product Description:
Qingdao Beishun Environmental Protection Company has the following advantages in producing rubber kneading machines:
1) this machine has an integral structure, with a compact structure and good leak proofness, comparing with the traditional drop-type
banbury mixer, it has the features of easy installation, small space occupied, smaller pollution, most suitable for the condition of limited
factory building space, and it can give play to the best efficiency, convenient to provide the possibility of automatic rubber mixing.
it is the ideal new type rubber mixing equipment for the medium size rubber products factory.
2) This machine raises the production efficiency greatly, enhances the rubber mixing quality and reduces the unit energy consumption
effectively, its rubber mixing quality and efficiency is same as the traditional drop-type banbury mixer, but the energy required is 2/3 of
the traditional banbury mixer.
3) All the rotors, mixing chamber, discharge door, the top ram etc. can be cooled through water circulation with large cooling area,
meanwhile this machine is equipped with the water temperature control system ,which can effectively ensure the mixing quality
of various rubber materials.
4) The surface of the rotors adopts hydraulic sealing, the sealing specific pressure is adjustable, reliable sealing.
5)The top ram adopts hydraulic drive, to realize constant pressure control of rubber marterials, the bottom ram adopts drop-type
for discharging with hydraulic drive, stable runnng, short opening and closing time, being driven by oil cylinder, tight locking force
is strong, good self-locking and sealing properly.
6) This machine adopts intelligent control system equipped with inverter, its control system adopts touch screen and PLC, while
the touch screen can transmit and display the running condition of the machine effectively, also it can be set different pressure
and rotating speed according to different kinds of material and then all the settings can be on file by serial number, and the relevant
procedure will be callout by inputting the relevant serial number during late productio procedure to run the machine.
7) This machine can select the best rotating speed and pressure according to the hardness and temperature of materials, combining
the electric current, to get the best rubber mixing effects, with the features of going green and environmental protection and intelligentize.
8) This machine can choose to assemble front and rear auxiliary equipments to work continiously according to user's requirements,
to realize automatic rubber mixing.
Detailed specification:
| DY-50L | DY-60L | DY-80L | DY-90E | DY-110L | DY-160L | |
| total volume of mixing chamber | 60L | 90 | 120 | 90 | 165 | 240 |
| working volume of mixing chamber | 50L | 60 | 80 | 60 | 110 | 160 |
| driving motor power | 90 kw | 132 | 185 | 400 | 280 | 400 |
| hydraulic motor power | 5.5 kw | 7.5 | 7.5 | 11 | 11 | 11 |
| front rotational speed of the rotor | 40(adjustable) | 40 | 40 | 40 | 40 | 40 |
| speed ratio of rotors | 1:1.2 | 1:1.2 | 1:1.2 | 1:1.2 | 1:1.2 | 1:1.2 |
| consumption of cooling water | 20M3/hour | 25 | 25 | 35 | 35 | 50 |
| Pressure of heating steam(rubber mixing) | 0.3-0.4Mpa | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 |
| Pressure of heating steam(plastic mixing) | 0.5-0.8Mpa | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 |
| Dimension (mm) | 4500 2450 3890 |
4600 2500 4090 |
4700 2670 4240 |
5470 2760 4720 |
5340 2790 4580 |
5900 3300 4900 |
| Weight | 10 ton | 13.5 | 16.5 | 22 | 22.5 | 39 |
| Ram form | hydraulic ram | hydraulic ram | hydraulic ram | hydraulic ram | hydraulic ram | hydraulic ram |
| Parameter | Value |
|---|---|
| Product Name | Rubber Kneader Machine |
| Capacity | 50-1000L |
| Discharge Way | Manual/Pneumatic |
| Voltage | 380V/50HZ |
| Structure | Double-shaft |
| Material | Carbon Steel/Stainless Steel |
| Power | 7.5-90KW |
| Mixing Time | 2-20min |
| Dimension | Customized |
| Rotating Speed | 1-20r/min |
Rubber Kneader Machines made by beishun with model number X(S)N-750 are widely used in various industries. The Rubber Kneader is an essential machine for rubber processing and kneading, and is made of high-end materials with high quality and durability. It is originated from Qingdao, China and certificated by ISO9001/CE/SGS. The minimum order quantity for this product is 1set, and the price ranges from USD5000-100000/set (custom made). It is packaged with pallet, packaging film and container, and the delivery time is 40days. It is accepted to pay by L/C, T/T. The company is able to supply up to 50set/year. It is built with a PLC control system and the dimension is customizable. The power ranges from 7.5-90KW and the capacity is between 50-1000L. It can be heated by steam/electricity/oil.
Customized Rubber Kneader Machine from Beishun with model number X(S)N-750.
This product is certified by ISO9001/CE/SGS and is available with minimum order quantity of 1set. The price range is from USD5000-100000/set, depending on customization.
Packaging Details: pallet, packaging film, container. Delivery Time: 40days. Payment Terms: L/C, T/T. Supply Ability: 50set/year.
This Kneader Machine has a mixing time of 2-20min and a cooling method of Water/Air. It has a Voltage of 380V/50HZ and a Dimension that can be customized.
Beishun's Kneader Machine is a Kneading Machine, Kneading Mixer, Kneader that is ideal for mixing rubber and plastics.
At ABC Company, we are committed to providing our customers with the best technical support and services for the Rubber Kneader Machine. We provide a 24/7 customer service line and online support to address any questions or concerns that may arise.
Our technical support team is well-equipped to handle any issue that may arise, and can provide assistance with the installation, maintenance, and repair of the machine. We also provide troubleshooting and diagnostic services to help diagnose any problems that may arise. Additionally, we provide training for proper use of the machine and can provide replacement parts when needed.
At ABC Company, we strive to provide our customers with the best technical support and services for the Rubber Kneader Machine. If you have any questions or concerns, please do not hesitate to contact us.
Rubber kneader machines are packaged with the utmost care to ensure they arrive safely to their destination. The machine will be securely sealed in a wooden crate with a metal frame and foam cushioning inside. The crate will also include a detailed list of the machine parts and any necessary documentation.
The machine will be shipped via a reliable shipping company, such as UPS, FedEx, or DHL. Tracking and insurance will be included to ensure that the machine is safe and secure during transit.
|
