| Brand Name: | Beishun |
| Model Number: | GLJ-400 |
| MOQ: | 1set |
| Price: | 2000USD-5000usd |
| Packaging Details: | Wooden /Container |
| Payment Terms: | TT，L/C |

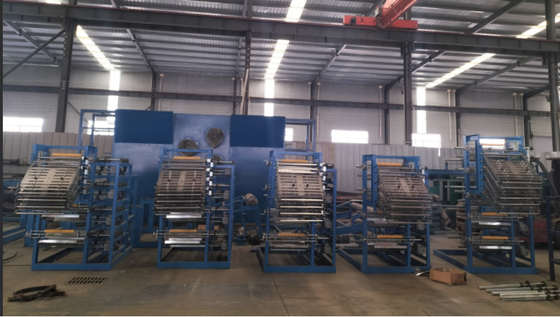

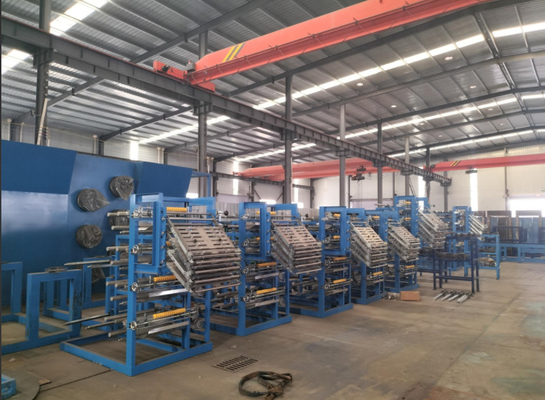

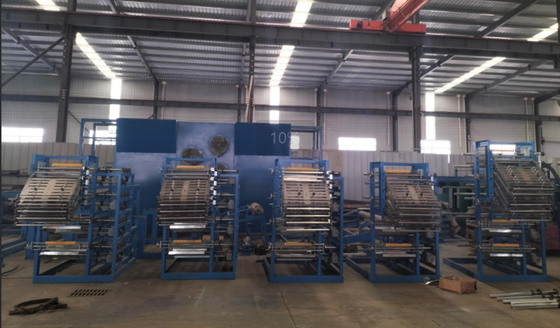

Four-Layer Feeding Rack And Automatic Conveying Motorcycle Tyre Making Machine
Product Introduction:

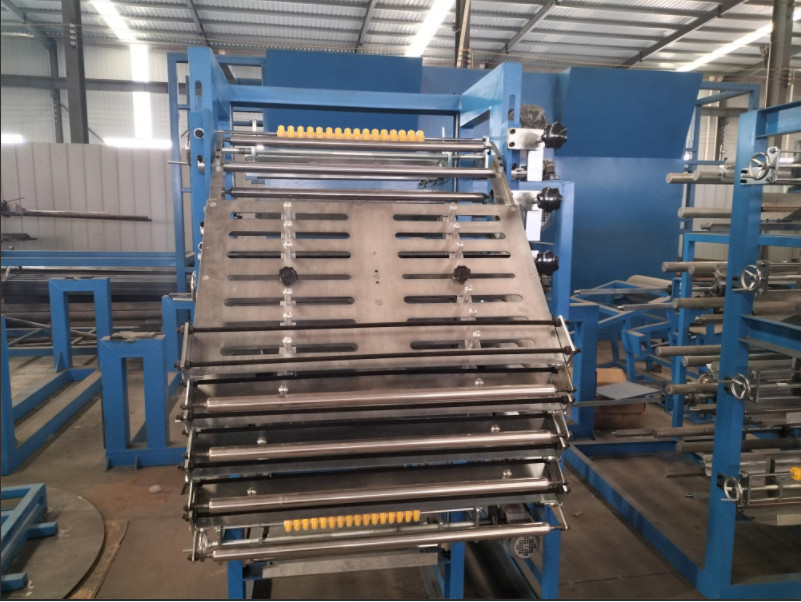

The motorcycle tire building machine feeder rack is a device used to store and convey raw materials, usually used in the manufacturing process. Here are some key features and functions of the feeder rack:
Key Features
Sturdy structure: The design is sturdy and welded with steel sections, which can carry different types of raw material rolls.
Automatic conveying: PLC automatic control, electronic sensors can realize automatic conveying and accurate control of feeding, and improve production efficiency.
Flexible adjustment: It can be set and adjusted according to the size of different materials. Achieve a variety of
tyre molding
Safety protection: Equipped with safety devices to prevent materials from falling or being damaged.
Function
Material storage: Used to store various materials required for tire molding.
Material conveying: Convey materials to the designated location of the tire building machine.
Tension control: Maintain the proper tension of the material to ensure smooth conveying.
Automatic roll changing: Supports automatic roll changing function to reduce downtime.
Working principle
Material loading: Place the material roll on the feeder rack.
Material conveying: Through the conveying system, the material is delivered to the molding machine.
T
ension adjustment: Adjust the tension of the material as needed to ensure smooth material delivery.
Automatic monitoring: Real-time monitoring of material conveying status to ensure normal operation.
Applications
Motorcycle tire manufacturing: Provides a stable material supply for tire molding machines.
Other rubber product production: Suitable for other production lines that require continuous material supply.
This feeder plays an important role in the motorcycle tire molding process, ensuring the efficient and continuous operation of the production line.
Parameter:
|
Specification of tyre |
Motorcycle/bike tyre |
|
Suitable cord fabric |
8”-28” |
|
Max. dia. of cord fabric roll (mm) |
400 |
|
Max. dia. of lining cloth roll (mm) |
300 |
|
Revolving speed of building drum (r/min) |
35-120 |
|
Main drive motor power (kw) |
2.2 |
|
Roller motor power (kw) |
0.75 |
|
Ply servicer motor |
1/2HPx4Px1/20/each ply |
|
Pressure of compressed air (kg/cm2) |
5-7 |
|
Overall dim. (LxWxH) (mm) |
2300x2200x2050 |
|
Building speed |
2PLY building 500pcs/8hrs 4PLY building 400pcs/8hrs |
|
