Customizable Sizes Rubber Mixing Mill with Automatic Grease Lubrication and Hydraulic Thruster Brakes
Product Summary
Low Price Rubber Open Mill / Rubber Mixing Mill Customized To Different Sizes Our rubber mixing mill with 450mm roller diameter is a versatile and reliable rubber processing equipment designed for various industrial applications. Machine Structure & Components Roller: Core component with 450mm ...
Basic Properties
Place of Origin:
Qingdao
Brand Name:
Beishun
Certification:
ISO/CE
Model Number:
XK-450
Trading Properties
Minimum Order Quantity:
1set
Price:
Negotiable
Payment Terms:
T/T,L/C
Supply Ability:
30sets
Product Description
Low Price Rubber Open Mill / Rubber Mixing Mill Customized To Different Sizes
Our rubber mixing mill with 450mm roller diameter is a versatile and reliable rubber processing equipment designed for various industrial applications.
Machine Structure & Components
Roller: Core component with 450mm diameter working surface, featuring hollow structure for heating/cooling operations and specially treated high-hardness, wear-resistant surface.
Frame: Welded steel structure providing high strength and rigidity to support and fix all components, ensuring overall stability.
Transmission System: Efficient power transfer from motor to rollers using gear transmission for smooth operation and high efficiency.
Gap Adjustment: Worm gear or hydraulic adjustment system for precise control of roller spacing to meet different processing requirements.
Safety Features: Emergency brake system with quick-stop functionality and emergency stop button for operator protection.
Temperature Control: Electric or steam heating with water cooling capability to maintain optimal processing temperatures.
Working Principle
The mixing mill operates with two counter-rotating rollers at different linear speeds. Rubber material is fed into the roller gap where it undergoes strong shearing and extrusion forces. This mechanical action breaks molecular chains and distributes components evenly, achieving thorough plasticization and mixing through repeated processing cycles.
Performance Specifications
- Roller Linear Speed: Front roller 18-25m/min (varies by manufacturer)
- Speed Ratio: Front to rear roller ratio approximately 1:1.27
- Batch Capacity: 25-50kg per cycle (depending on rubber type and formula)
- Motor Power: 45-75kW driving motor for optimal working capacity
Applications
- Rubber plasticization to reduce molecular weight and increase processability
- Rubber mixing for uniform dispersion of compounding agents (carbon black, sulfur, accelerators)
- Hot refining to improve rubber fluidity and temperature uniformity
- Rubber sheeting for producing consistent thickness rubber sheets
Advantages & Limitations
Key Benefits:
- Simple operation with minimal training requirements
- Strong applicability for various rubber types and formulas
- Open structure allows direct process observation and adjustment
Considerations:
- Manual material handling requires operator effort
- Working environment may include dust and exhaust emissions
- Production efficiency lower compared to internal mixers
Technical Parameters
| Model | XK-160 | XK-250 | XK-360 | XK-400 |
|---|---|---|---|---|
| Roller Diameter (mm) | 160 | 250 | 360 | 400 |
| Roller Length (mm) | 320 | 620 | 900 | 1000 |
| Front Roll Linear Speed (m/min) | 9 | 15.1 | 16.25 | 18.65 |
| Friction Ratio | 1:1.35 | 1:1.1 | 1:1.25 | 1:1.27 |
| Batch Capacity (kg) | 1-2 | 10-15 | 20-25 | 18-35 |
| Driving Motor (kW) | 5.5 | 18.5 | 30 | 37 |
| Machine Size (mm) | 1380×860×1320 | 3400×1350×1500 | 3940×1780×1740 | 4200×1850×1870 |
| Weight (kg) | 1000 | 3500 | 5600 | 7600 |
| Model | XK-450 | XK-550 | XK-560 |
|---|---|---|---|
| Roller Diameter (mm) | 450 | 550 | 560/510 |
| Roller Working Length (mm) | 1200 | 1500 | 1500 |
| Front Roll Linear Speed (m/min) | 24.5 | 27.94 | 27.87 |
| Friction Ratio | 1:1.27 | 1:1.22 | 1:1.2 |
| Motor (kW) | 55 | 110 | 90 |
| Batch Capacity (kg) | 25-50 | 50-60 | 50-60 |
| Machine Size (mm) | 5200×2380×1770 | 5900×2680×2080 | 6500×2300×2000 |
| Machine Weight (kg) | 12000 | 27000 | 19500 |
Safety Operating Procedures
Pre-Startup Preparation:
- Inspect all equipment components for normal condition
- Verify electrical system functionality and instrument accuracy
- Clear work area debris and ensure clean environment
- Adjust roller spacing according to process requirements
- Wear appropriate personal protective equipment
Startup Operation:
- Ensure no personnel or obstacles near equipment before starting
- Start main motor gradually and monitor for normal operation
- Add rubber materials according to process specifications after stable operation
During Operation:
- Maintain safe positioning - never place hands or body parts in roller gap
- Add materials evenly and appropriately to avoid equipment overload
- Continuously monitor rubber mixing and stop immediately if abnormalities occur
- No maintenance or adjustments during equipment operation
- Use emergency stop button immediately in case of emergencies
Shutdown Procedure:
- Stop material addition after mixing completion
- Discharge all rubber from rollers before stopping main motor
- Shut down electrical system and clean equipment/workspace
- Perform daily maintenance including lubrication and cleaning
Additional Safety Requirements:
- Only trained personnel permitted to operate equipment
- No unauthorized personnel near operating equipment
- Regular equipment inspection and maintenance for optimal condition
- Strict adherence to operating procedures and safety regulations

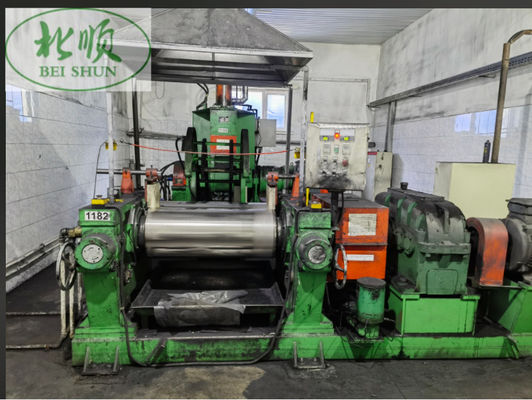

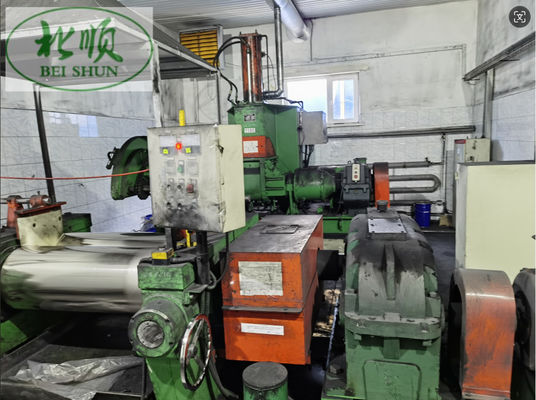

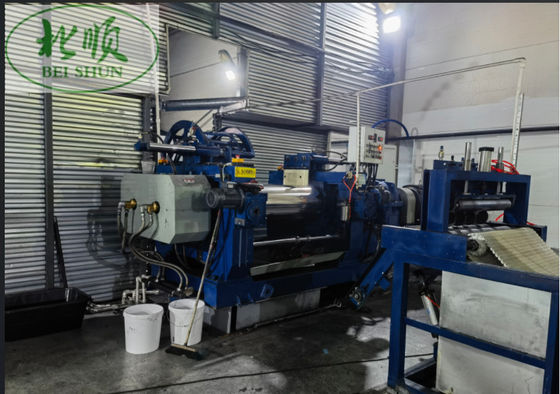

Product Images
Product Details
Highlight:
Low Price rubber open mill
,Low Price rubber mixing mill
,Customized rubber mixing mill
Use:
Compounding Rubber And Plastics
Capacity:
30-40 Kg Per Batch
Lubrication:
Automatic Grease
Roll Speed Ratio:
1:1 Or 1:1.17
Brakes:
Hydraulic Thruster Brakes
Service Overseas:
Provision
Core Components:
PLC, Bearing, Motor, Bearbox
Gear Box:
Hard-teeth Speed Reducer
Max Roll Space:
16 Mm
Rollerbearings:
NSK
Voltage:
380V Or Custom
Applicable Industries:
Rubber Industry
Speed Ratio:
1:1.27
