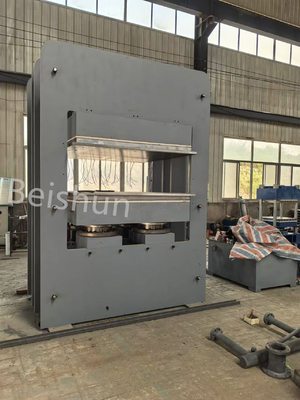

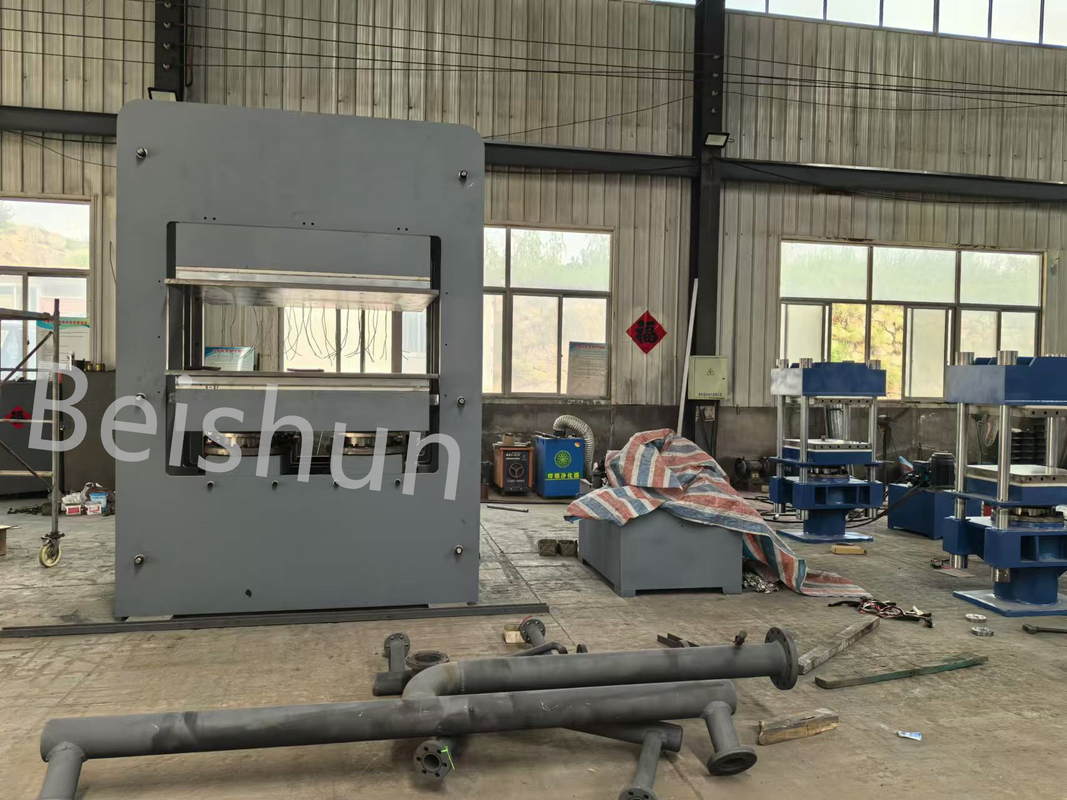

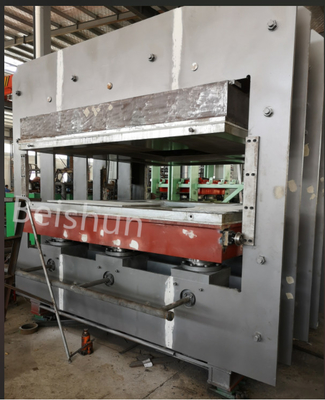

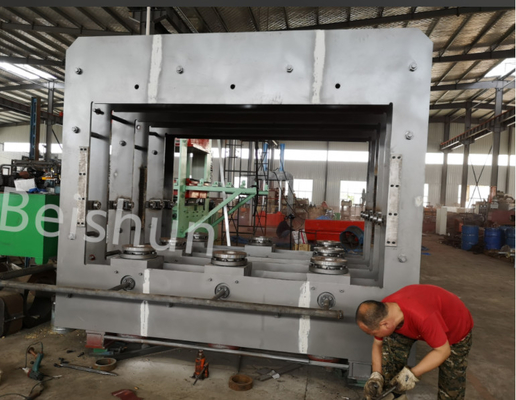

Large 1500×1500mm Hot Plate Rubber Vulcanizing Press Machine With 800 Tons Pressure For Uniform Vulcanization

Large 1500×1500mm Hot Plate Rubber Vulcanizing Press Machine With 800 Tons Pressure For Uniform Vulcanization

Brand Name:	Beishun
Model Number:	XPLW-1500×1500
MOQ:	1set
Price:	Negotiable
Payment Terms:	T/T,L/C
Supply Ability:	30sets

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao

Certification:

ISO/CE

Control Type:

Automatic

Clamping Pressure:

800T/custom Made

Plate Size:

1500x1500mm Or As Your Requirements

Heating System:

Electric Heating

Hs Code:

84778000

Warranty:

1 Year

Customized:

Yes

Plunger Material:

Chilled Cast Iron

Driving Motor:

3kw

Hydraulic Unit:

Rexroth, Huade, Yuken, Seven Ocean

Column:

Polishing Treatment

Auto:

Automatic

Operation Mode:

Manual/Automatic

Character:

With Push-pull Mould

Packaging Details:

Wooden box/20GP/40GP

Highlight:

Large rubber vulcanizing machine

One-Layer rubber vulcanizing machine

2.8MPa rubber vulcanizing machine

Product Description

Large One-Layer Rubber Molding Press

Industrial rubber press machine with 2.8MPa pressure for uniform vulcanization processes

High-Performance Rubber Molding Press

Features 1500*1500mm hot plates and 800 tons of clamping force for superior rubber processing

Technical Specifications

Nominal clamping force: 6300KN and above for optimal molding stability
Hot plate spacing: 125-300mm adjustable range for various product thicknesses
Hot plate unit area pressure: 2.8MPa for uniform pressure distribution
Heating methods: Electric heating (fast, precise) or steam heating (energy-efficient)
Motor power: 13KW and above for reliable operation

Applications

Ideal for large rubber products including rubber pads, tracks, and industrial seals requiring precise vulcanization and dimensional accuracy

Key Advantages

High production efficiency with large plate capacity
Superior vulcanization quality with precise temperature control
Uniform pressure distribution for consistent product quality
Automated control system for easy operation
Customizable configurations to meet specific requirements

Technical Parameters Comparison

Type	Total Pressure	Platen Size	Daylight	No of Daylights	Piston Stroke	Plate Unit Area Pressure	Main Motor Power	Overall Dimension	Weight
XLB-DQ120012002	315t	1200*1200	200	2	400	22 Kg/cm²	3 KW	168513202450	9500 kg
XLB-DQ130020001	560t	1300*2000	400	1	400	21.5 Kg/cm²	8 KW	200018602500	17000 kg
XLB-Q120025001	750t	1200*2500	400	1	400	25 Kg/cm²	9.5 KW	256017002780	20000 kg
XLB-Q150020001	1000t	1500*2500	400	1	400	33.5 Kg/cm²	11 KW	281015503325	24000 kg
XLB-Qhe200030001	1800t	2000*3000	400	1	400	30 Kg/cm²	26 KW	290032002860	66000 kg
XLB-Q140057001	2800t	1400*5700	400	1	400	35 Kg/cm²	43.5 KW	240058003600	110000 kg
