| Brand Name: | BeiShun |
| Model Number: | XKB-480 |
| MOQ: | 1 set |
| Price: | 30000-50000USD |
| Packaging Details: | Wooden /Container |
| Payment Terms: | T/T, L/C |

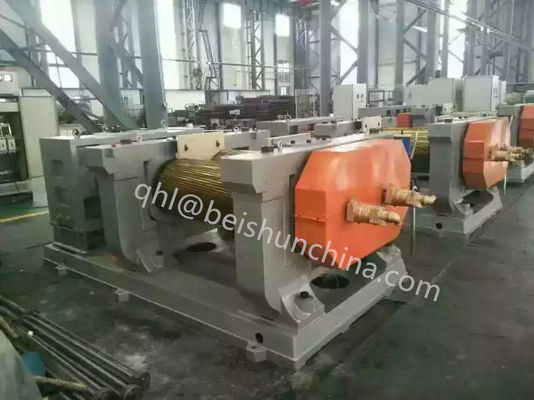

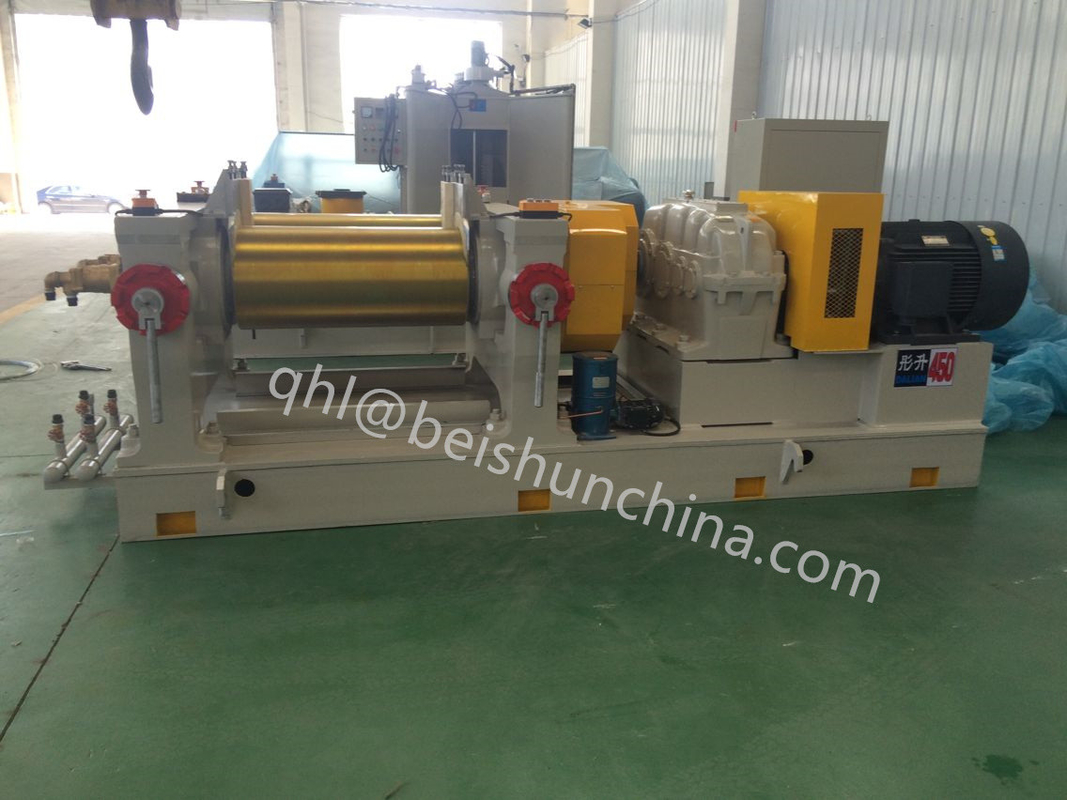

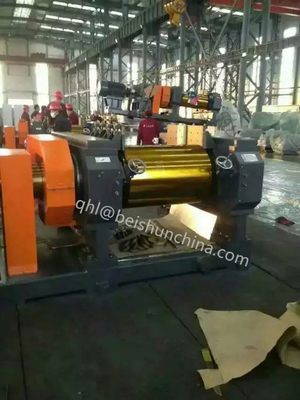

Customized small rubber refiner for high quality recycled rubber production
Rubber Refining Machine Introduction:
Recycled rubber refiner is an important equipment used in the production process of recycled rubber.
1. Main functions
The refiner mainly refines the recycled rubber that has been treated in the early stage. It can make the physical properties of the recycled rubber more uniform and improve the quality and stability of the recycled rubber. Specifically, it can improve the plasticity, tensile strength, wear resistance and other properties of the recycled rubber.
2. Structural features
1. Roller: Usually made of high-quality steel, it has good wear resistance and heat resistance. The surface of the roller is specially treated to ensure that the recycled rubber can be well attached and evenly squeezed during processing.
2. Transmission system: It consists of motors, reducers, etc., which provide stable power for the roller. The design of the transmission system should ensure that the equipment runs smoothly and has low noise.
3. Temperature control system: It is used to control the temperature of the roller to meet different process requirements. The temperature control system can be heated by electricity, oil or steam.
4. Safety devices: including emergency stop devices, guardrails, etc. to ensure the safety of operators.
3. Working Principle
The reclaimed rubber passes through the gap between two or more relatively rotating rollers and is subjected to extrusion, shearing and stretching. In this process, the molecular structure of the reclaimed rubber is further adjusted and optimized, thereby improving its performance. At the same time, by controlling the temperature and pressure of the rollers, the processing parameters of the reclaimed rubber can be adjusted to meet different production needs.
4. Application Field
The reclaimed rubber refiner is widely used in the rubber products industry, such as the production of tires, hoses, tapes, rubber soles, etc. It can process waste rubber into high-quality reclaimed rubber after recycling, providing a sustainable source of raw materials for the production of rubber products.
Technical Parameters:
| Model | XK-400 | XK-450 | XK-550 | XK-560 | XK-610 | XK-660 |
| Roll Size(D/L) | 400×1000 | 450×1200 | 550×1530 | 560×1530 | 610×1830 | 660×2130 |
| Production | 25-35Kg | 40-50Kg | 50-60Kg | 50-60Kg | 120-130Kg | 150-160Kg |
| Power | 37KW | 55KW | 90KW | 90KW | 185KW | 220KW |
| Gap adjusting range | 0.1-12mm | 0.1-12mm | 0.1-15mm | 0.1-15mm | 0.1-15mm | 0.1-15mm |
Working principle of rubber refining machine:
Recycled rubber refiner is an important equipment used in the production process of recycled rubber.
1. Main functions
The refiner mainly refines the recycled rubber that has been treated in the early stage. It can make the physical properties of the recycled rubber more uniform and improve the quality and stability of the recycled rubber. Specifically, it can improve the plasticity, tensile strength, wear resistance and other properties of the recycled rubber.
2. Structural features
1. Roller: Usually made of high-quality steel, it has good wear resistance and heat resistance. The surface of the roller is specially treated to ensure that the recycled rubber can be well attached and evenly squeezed during processing.
2. Transmission system: It consists of motors, reducers, etc., which provide stable power for the roller. The design of the transmission system should ensure that the equipment runs smoothly and has low noise.
3. Temperature control system: It is used to control the temperature of the roller to meet different process requirements. The temperature control system can be heated by electricity, oil or steam.
4. Safety devices: including emergency stop devices, guardrails, etc. to ensure the safety of operators.
3. Working Principle
The reclaimed rubber passes through the gap between two or more relatively rotating rollers and is subjected to extrusion, shearing and stretching. In this process, the molecular structure of the reclaimed rubber is further adjusted and optimized, thereby improving its performance. At the same time, by controlling the temperature and pressure of the rollers, the processing parameters of the reclaimed rubber can be adjusted to meet different production needs.
4. Application Field
The reclaimed rubber refiner is widely used in the rubber products industry, such as the production of tires, hoses, tapes, rubber soles, etc. It can process waste rubber into high-quality reclaimed rubber after recycling, providing a sustainable source of raw materials for the production of rubber products.
|
|
