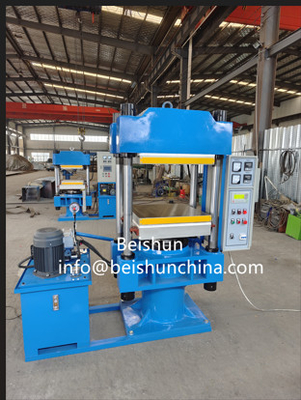

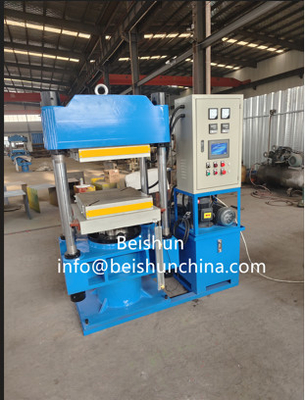

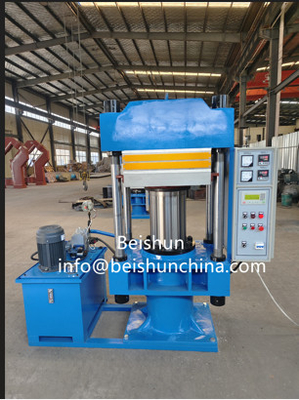

Hot Plate Size Small Four Column Flat Rubber Molding Press 500*500mm Pressure 80 Tons
The hot plate size of the small four-column flat rubber molding press is 500*500mm and the pressure is 80 tons
Rubber molding machine Feature:
1.The cylinder ( piston ) adopts the best seals structure , with reasonable design and reliable function. The seals part is good quality YX typepolyurethane seals (not rubber seal ) ,which is oil resistant , aging resistant .Our machine adopts the double seals structure , and seals part is easy change and protect
2.Automatic control : automatic mold closing , automatic exhausting , automatic heating and keep stable temperature, automatically timing for vulcanization , automatic alarming , automatic mold opening ,etc
3..The vulcanizing temperature can be set and showed in the digital displan .
4.Vulcanizing time can be set in the PLC screen . If you want to heat and vulcanize for 1 minutes , just set it directly . When it reaches 1minutes ,machine will alarm then machine will open the mold automatically
5.Pillar is made of high quality # 45 steel, The hardness , wear resistance and abrasive resistance is high improved by quenching and tempering
6.The top beam and bottom plate form is welded with the good quality Q-235A ductile iron .After welding , it is also processed by the artificial vibration or high temperature aging treatment , to eliminate the internal stress and avoid the deformation
7.plunger is made of LG-P cold hard alloy steel . Surface of it owns high hardness and wear resistant.Depth of chilled layer is 8-15mm , hardness is HRC 60-70 , making the plunger own long life time
8.Mainly hdralic spare parts are imported from Taiwan , not our local brand
Rubber molding press Parameters
| model/ | XLP-300*300 | XLP-400*400 | XLP-500*500 | XLP-450*450 | XLP-550*550 |
Mold closing force |
0.25 | 0.5 | 0.8 | 1.0 | 1.0 |
| Heating plate size | 300*300 350*350 |
400*400 450*450 500*500 |
500*500 600*600 |
450*450 | 550*550 |
| Working layer | 1 / 2 | 1/ 2 | 1 / 2 | 1 / 2 | 1 / 2 |
Plate clearance |
200 | 200 | 200 | 200 | 200 |
Plunger stroke |
200/400 | 200/400 | 200/400 | 200 /400 | 200 /400 |
Plunger diameter |
152 | 200 | 250 | 285 | 300 |
Unit area pressure of heating plate (kg/cm2) |
27.7 20.4 |
31.2 24.6 |
32 22.2 |
49.3 | 33 |
Heating |
Electrical |
Electrical |
Electrical |
Electrical |
Electrical |
Heating temperature |
300 | 300 | 300 | 300 | 300 |
Control |
automatic |
automatic |
automatic |
automatic |
automatic |
Optional control way |
Semi-automatic/ common automatic /PLC text type/ PLC+ touching screen |
||||
Gross weight |
900 | 1200/1350/1450 | 1550/1750 | 2200 | 2300 |
| model | XLB-D1.0MN | XLB-D1.2 MN | XLB-D1.6 MN | XLB-D2.0MN | XLB-D2.5MN |
Mold closing force |
1.0 | 1.2 | 1.6 MN | 2.0 | 2.5 |
Heating plate size |
600*600 | 700*700 | 750*750 | 800*800 | 1000*1000 |
| Working layer | 1 / 2 | 1/ 2 | 1 / 2 | 1 / 2 | 1 / 2 |
Plate clearance |
200 | 200 | 200 | 200 | 200 |
Plunger stroke |
200/400 | 200/400 | 200/400 | 200 /400 | 200 /400 |
Plunger diameter |
300 | 320 | 360 | 400 | 450 |
Unit area pressure of heating plate (kg/cm2) |
27.7 | 24.5 | 25 | 31.25 | 25 |
Heating |
Electrical |
Electrical |
Electrical |
Electrical |
Electrical |
| Heating temperature | 300 | 300 | 300 | 300 | 300 |
Control |
automatic |
automatic |
automatic |
automatic |
automatic |
Optional control way |
Semi-automatic/ common automatic /PLC text type/ PLC+ touching screen |
||||
Small Four Column Rubber Molding Press
,80 Tons Rubber Molding Press
,500*500mm Rubber Molding Press
