100-ton Cast Steel Base Flat Vulcanizing Machine - Hot Press Molding Machine For Rubber Shoe Soles - Four-column Type With Two Working Layers
Product Summary
100-ton Cast Steel Base Flat Vulcanizing Machine Hot press molding machine for rubber shoe soles - four-column type with two working layers Machine Overview Our 100-ton four-column flat vulcanizing press is specifically engineered for hot press molding of rubber shoe soles. Featuring a solid cast ...
Basic Properties
Place of Origin:
Qingdao
Brand Name:
Beishun
Certification:
ISO/CE
Model Number:
XLB-700*700
Trading Properties
Minimum Order Quantity:
1set
Price:
Negotiable
Payment Terms:
L/C,T/T
Supply Ability:
30sets/60day
Product Description

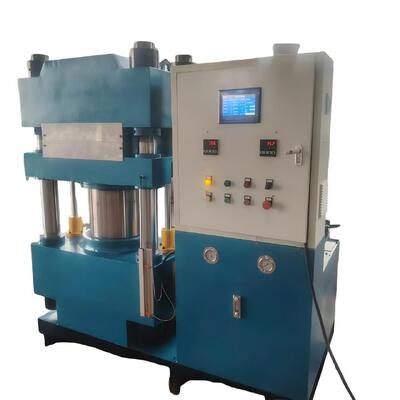

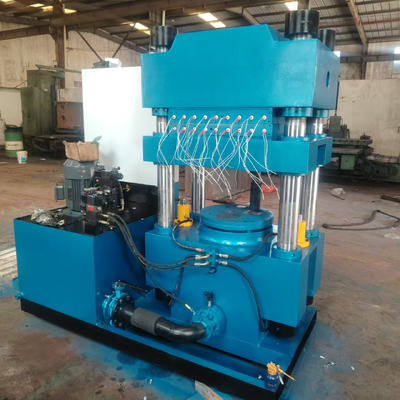

100-ton Cast Steel Base Flat Vulcanizing Machine
Hot press molding machine for rubber shoe soles - four-column type with two working layers
Machine Overview
Our 100-ton four-column flat vulcanizing press is specifically engineered for hot press molding of rubber shoe soles. Featuring a solid cast steel base and two independent working layers, this machine delivers high rigidity, exceptional productivity, and reliable performance, making it the preferred choice for shoe sole manufacturers worldwide.
Main Structure & Key Features
- Four-Column Structure: Classic four-column guiding design ensures stable operation under long-term high pressure, maintains parallel movement of platens, prevents deviation during pressing, and guarantees consistent thickness and appearance of finished rubber shoe soles.
- Cast Steel Base: Heavy-duty cast steel construction provides superior shock resistance, enhanced load-bearing capacity, and minimal deformation compared to welded frames, maintaining high precision even in demanding workshop environments.
- Two Working Layers: Two independent working layers double production capacity within limited floor space, enabling continuous production through alternating mold loading and unloading operations.
- 100-Ton Rated Pressure: Standard working pressure of 100 tons meets all vulcanization and molding requirements for various rubber materials, with hydraulic system ensuring stable, even pressure distribution across the entire platen.
Core Advantages for Rubber Shoe Sole Production
- High Production Efficiency: Two-layer layout maximizes workshop utilization and output, ideal for mass production of casual shoes, sports shoes, and slipper rubber soles.
- Stable Molding Quality: Four-column guidance and cast steel base eliminate vibration and platen deflection, ensuring uniform density and smooth surface finish.
- Durable & Low Maintenance: High-strength cast steel body and quality hydraulic components reduce failure rates and minimize long-term operating costs.
- Easy Operation: User-friendly control system with simple operational procedures enables quick worker training and seamless integration into large-scale workshops.
Application Scope
This 100-ton two-layer flat vulcanizing hot press is primarily used for hot press vulcanization and molding of various rubber products, particularly ideal for:
- Rubber shoe soles
- Rubber insoles
- Rubber slipper parts
- Small rubber accessories for footwear
Technical Parameters
| Spec Item | XLB-DQ 350×350 | XLB-DQ 400×400 | XLB-DQ 600×600 | XLB-Q 1200×2700 | XLB-Q 1400×3200 | XLB-Q 1500×6000 | XLB-Q 1800×10000 |
|---|---|---|---|---|---|---|---|
| Total pressure (KN) | 250 | 500 | 1000 | 7500 | 10300 | 25200 | 56000 |
| Hot-plate unit pressure (MPa) | 2.1 | 3.1 | 2.7 | 2.3 | 2.3 | 2.8 | 3 |
| Max plunger stroke (mm) | 250 | 300 | 300 | 250 | 250 | 300 | 300 |
| Hot-plate size (mm) | 350×350 | 400×400 | 600×600 | 1200×2700 | 1400×3200 | 1500×6000 | 2000×10000 |
| Plate layers | 2-4 | 2-4 | 2-4 | 1 | 1 | 1 | 1 |
| Max. working oil pressure (MPa) | 12 | 12 | 16 | 12.5 | 14.5 | 15.5 | 16 |
| Total heating power (kW) | 12 | 12 | 20 | - | - | - | - |
| Overall dimensions L (mm) | 1260 | 1260 | 1350 | 3000 | 3400 | 6400 | 10500 |
| Overall dimensions W (mm) | 560 | 560 | 750 | 1830 | 2360 | 2520 | 3250 |
| Overall dimensions H (mm) | 1650 | 2200 | 1800 | 2224 | 3050 | 3420 | 4670 |
| Approximate weight (t) | ~2 | ~2.2 | ~3 | ~22.7 | ~27 | ~60 | ~186 |
Conclusion
Our 100-ton four-column two-layer vulcanizing press offers a cost-effective, high-efficiency solution for rubber shoe sole production. The robust cast steel structure, stable hydraulic performance, and dual working layers provide reliable support for long-term mass production requirements.
We provide detailed technical parameters, customized mold matching solutions, and comprehensive after-sales service. Contact us for quotations and additional information.
Product Details
Highlight:
100-ton cast steel vulcanizing machine
,hot press molding machine for rubber soles
,four-column vulcanizing press with two layers
Voltage:
220V/380V/400V/440/
Plunger Diameter:
250mm
Plc:
Mitushibi, Siemens .
Clamping Force:
100T
Plate Daylight:
200mm
Control Type:
CNC
Piston Diameter:
200mm
Working Layer:
As Your Requirements
Heating Plate Size:
900x900mm Or As Your Request
Control System:
PLC Control With Touch Screen
Cycle Time:
1-10 Minutes
Cooling Method:
Water Cooling
Electric Parts:
Chnt, Schneider, Siemens Etc
Hydraulic Unit:
Rexroth, Huade, Yuken, Seven Ocean
Heating Type:
Electrical Or Oil Or Steam
Specification:
According To The Customer's Requirements
