High Accuracy Rubber Roll Calender Machine Produce Rubber Conveyor Belts Tires
Rubber Roll Calender Machine Can Be Used To Produce Rubber Conveyor Belts, Tires

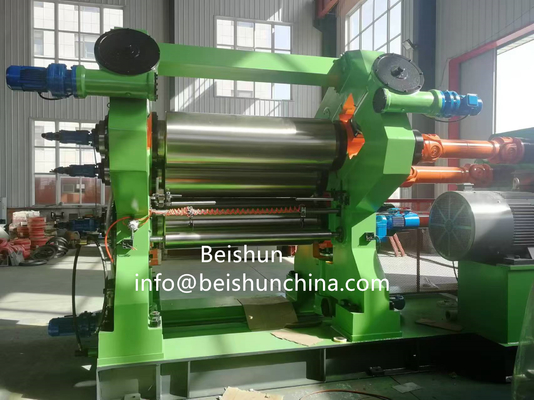

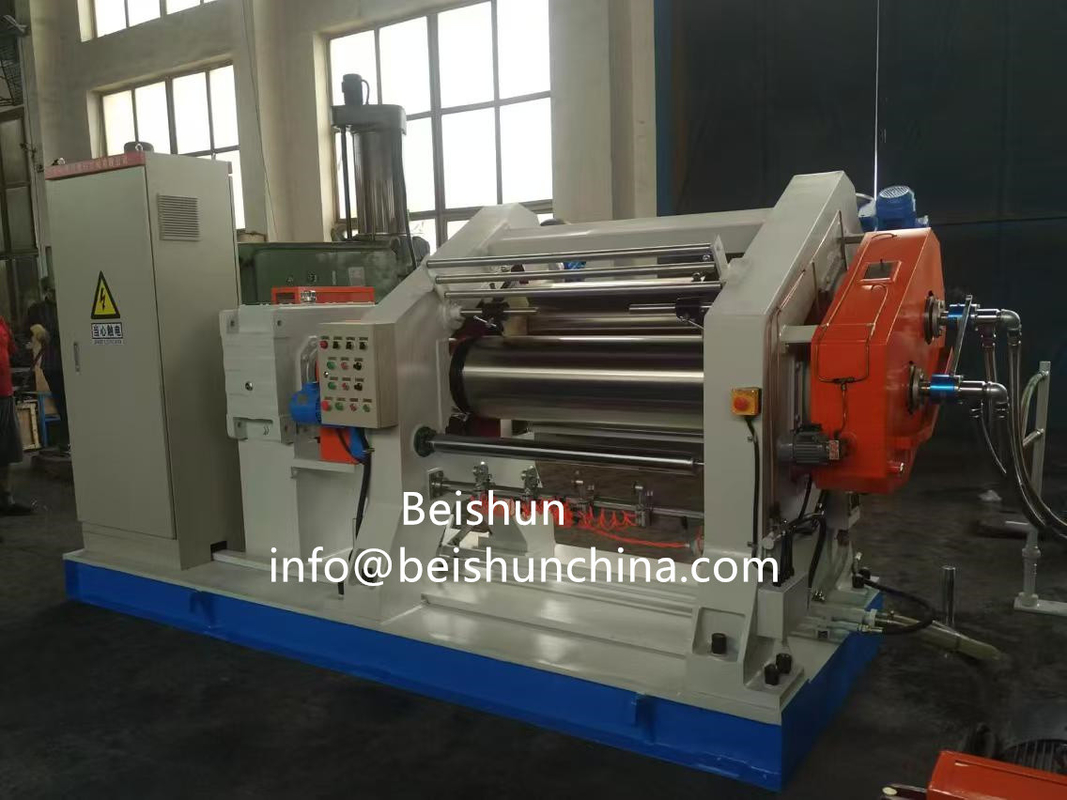

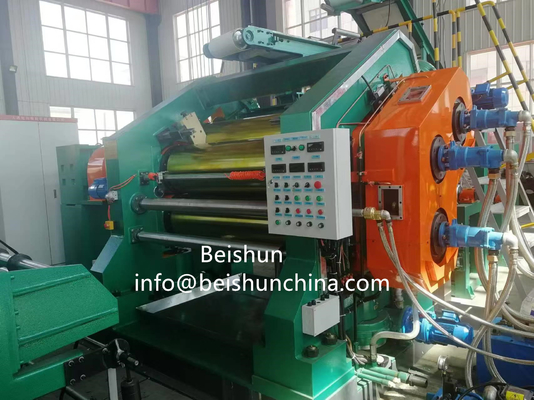

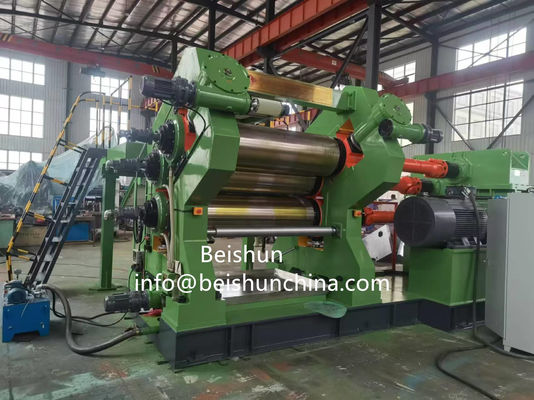

3-roll rubber calender is a kind of equipment used in rubber processing, mainly used to calender rubber materials into thin sheets. The following are its main features:
Main Features
Efficient calendering
The rubber is uniformly calendered to the desired thickness through the rotation and pressure of three rollers.
Precise control
Provides precise thickness and width adjustment to ensure product consistency.
Versatility
Suitable for a variety of rubber materials, including natural rubber and synthetic rubber.
Components
Roller system
Three high-strength rollers, usually made of steel, with heating and cooling functions.
Drive system
Provides stable power output to ensure synchronous operation of the rollers.
Control system
Easy for operators to adjust pressure, speed and temperature.
Application areas
Rubber sheet production
Sheets used to make tires, seals and other rubber products.
Coating process
Coating a rubber layer on fabric or other substrates.
Technical Parameter:
| Model | XY-3I 630 | XY-3I 1120A XY-3 1120A XY-3l1120A |
XY-3I 1400 | XY-3I 1200 XY-3I 1500 |
XY-3I 1730 | XY-3I 2130 |
| Roll diameter (mm) | 230 | 360 | 400 | 450 | 610 | 710 |
| Roll working length (mm) | 630 | 1120 | 1400 | 1200(1500) | 1730 | 2130 |
| Roll speed ratio | 1: 1: 1 1: 1.42: 1 |
1: 1: 1 0.733: 1: 1 0.733: 1.0.733 |
1: 1: 1 1: 1.383: 1.383 1: 1.383: 1 |
1: 1: 1 1: 1.5: 1 |
1: 1: 1 1: 1.4: 1 |
1: 1: 1 1: 1.48: 1 |
| Middle-roll linear speed (m/min) | 7.97 | 7.0-21.06 | 8.8-26.39 | 8.36-25.08 | 5.4-54 | 8-50 |
| Adjusting nip range (mm) | 0-7 | 0-10 | 0-10 | 0-6 | 0-20 | 0-20 |
| Min. Calendering product thickness (mm) | 0.2 | 0.2 | 0.2 | 0.15 | 0.15 | 0.15 |
| Calendering product width (mm) | 100-500 | 500-920 | 1200 | 1100(1400) | 1500 | 1900 |
| Motor power (kw) | 7.5 | 40/13.3 | 55/18.3 | 75/25 | 132 | 185 |
| Overall dimensions (mm) | 2570× 740× 1500 | 5550× 1640× 2120 | 6500× 1500× 2440 | 7120(7420)× 2200× 2900 | 7010× 3950× 3730 | 7650× 4560× 4080 |
| Weight (kg) | 4200 | 12750 | 26000 | 27000 | 52000 | 67000 |
