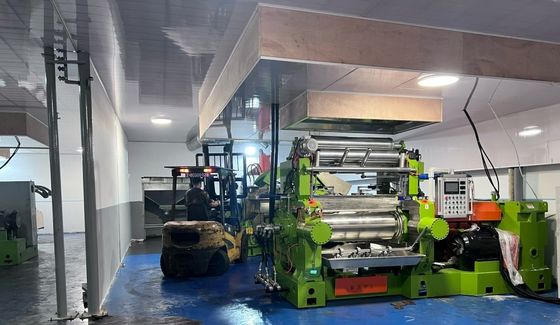

XK-550 Type Rubber Mixing Mill with 100kg Batch Capacity and 1500mm Roll Working Length
Product Summary
XK-550 Type Rubber Mixing Mill With 100kg Per Batch Capacity This industrial rubber mixing system combines a 110L Kneader with an XK-550 Open Mixing Mill for efficient two-stage processing, delivering superior mixing quality and production capacity of 100kg per batch. Two-Stage Mixing Process ...
Basic Properties
Place of Origin:
Qingdao
Brand Name:
Beishun
Certification:
ISO/CE
Model Number:
XK-550
Trading Properties
Minimum Order Quantity:
1sets
Price:
Negotiable
Payment Terms:
T/T,Western Union,L/C
Supply Ability:
30set/month
Product Description
XK-550 Type Rubber Mixing Mill With 100kg Per Batch Capacity
This industrial rubber mixing system combines a 110L Kneader with an XK-550 Open Mixing Mill for efficient two-stage processing, delivering superior mixing quality and production capacity of 100kg per batch.
Two-Stage Mixing Process Overview
This modern setup replaces labor-intensive single-stage mixing with an optimized two-phase approach:
- Stage 1: 110L Kneader (Intermixer) for intensive mixing, blending, and plastication
- Stage 2: XK-550 Open Mixing Mill for final mixing, homogenization, and sheet production
110L Rubber Kneader Specifications
This batch-type internal mixer serves as the primary workhorse for initial compound preparation:
- Function: High-intensity mixing of polymers, fillers, oils, and chemicals
- Capacity: 110L chamber (65-80kg actual batch weight)
- Advantages: Faster mixing, superior dispersion, enclosed design reduces dust/fumes
- Operation: Uses counter-rotating, intermeshing rotors in sealed chamber
XK-550 Open Mixing Mill Features
The finishing unit completes the mixing process and prepares material for downstream processing:
- Function: Final mixing, homogenization, cooling, and sheeting
- Capacity: 100kg per batch (550mm roll diameter × 1500mm length)
- Key Processes: Dumping, blending, sheeting, and cooling
- Operation: Uses counter-rotating rolls with differential speeds/temperatures
Standard Rubber Mixing Workflow
- Precise weighing of all raw materials
- Rubber loading and mastication in kneader
- Intensive mixing with additives in kneader
- Masterbatch transfer to XK-550 mill
- Final mixing and curative addition on mill
- Sheeting and cooling process
- Storage or feeding to downstream processes
System Advantages
- High productivity with optimized labor requirements
- Superior compound quality and consistency
- Precise control over mixing parameters
- Reduced manual labor compared to open mill-only systems
Technical Specifications
| Model | XK-450 | XK-550 | XK-560 |
|---|---|---|---|
| Roller diameter | 450mm | 550mm | 560/510mm |
| Roller working length | 1200mm | 1500mm | 1500mm |
| Front roll linear speed | 24.5 | 27.94 | 27.87 |
| Friction ratio of roller | 1:1.27 | 1:1.22 | 1:1.2 |
| Motor | 55 | 110 | 90 |
| Batch capacity | 25-50kg | 50-60kg | 50-60kg |
| Machine size | 5200×2380×1770mm | 5900×2680×2080mm | 6500×2300×2000mm |
| Machine weight | ≈12000kg | 27000kg | 19500kg |
Industrial Applications
This system is ideal for manufacturing:
- Tire components (tread, sidewall, inner liner)
- Automotive rubber parts (hoses, belts, gaskets)
- Industrial rubber products (conveyor belts, linings)
- Footwear components
- High-performance technical rubber products
The 110L Kneader + XK-550 Open Mill combination delivers an optimal balance of productivity, quality, and versatility for professional rubber manufacturing facilities.

Product Details
Highlight:
XK-550 Type Rubber Mixing Mill
,100kg Batch Capacity Open Mixing Mill
,1500mm Roll Working Length Two Roll Mill
Core Components:
PLC, Bearing, Gearbox, Motor
Roller Hardness:
Chilled Cast Iron Hardness HS 72
Cooling Mode:
Water Cooling
Reducer Brand:
NGW
Rollersurface:
Smooth
Roll Working Length:
1500mm
Rollercooling:
Water Cooling
Friction Ratio:
1:1.22
Brakes:
Hydraulic Thruster Brakes
Bearing:
Self-Aligning Roller Bearing
Application:
Mixing Rubber Compound
Rollerdrive:
V-Belt
Moter Power:
110kw
Roller Type:
Hollow Type / Drilling Roll
