| Brand Name: | Beishun |
| Model Number: | XLB-1200×1200 |
| MOQ: | 1pcs |
| Price: | 5000USD-100000USD |
| Payment Terms: | T/T, L/C, |

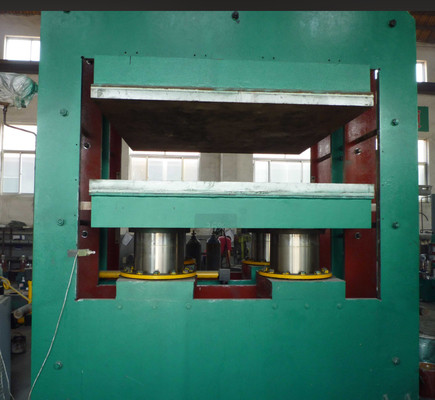

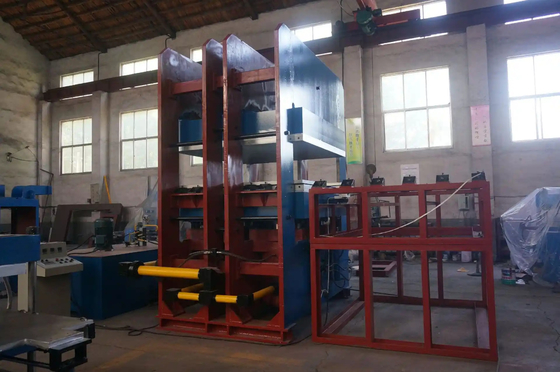

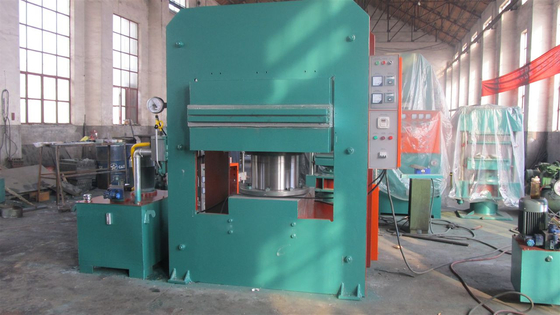

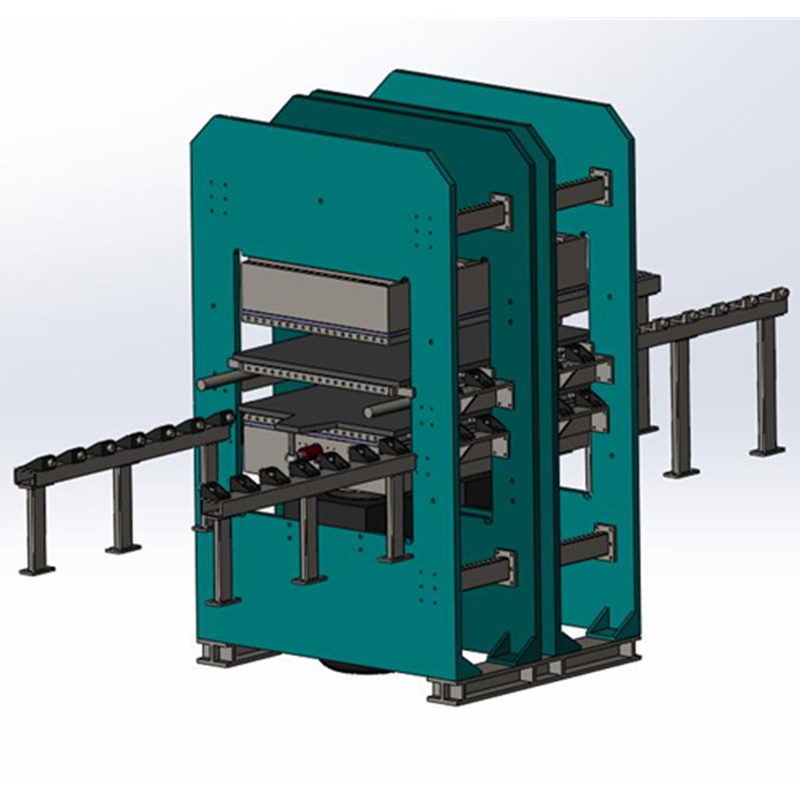

This machine is used for pressing all kinds of rubber model products and thermosetting plastic like as related specifications sealing products, projected rubber, rubber plate and so on. These series products have advantages of big unit area pressure to guarantee quality of products. We also can provide push pull mold device according to technique request of rubber products to decease labor strength. Also we can provide hand control and electric controI, PLC control as customer's request.
1. Automatic plate vulcanizing machine, automatically rise, automatic exhaust, automatic fall, curing time, then the function of alarm and automatically open mold, improve production efficiency
2. Curing time, air exhaust quantity, air exhaust time and other process parameters can be set in a convenient time, and has the automatic pressure function.
3. Electrical PLC control, convenient, accurate, and correct
4,Cylinder, piston cast iron with high wear resistance through QT Grinding finished form, and by the line of high-pressure hydraulic resistance against permeation experiments, preventing the cylinder, piston oil leakage caused by defects in the machine.
5,Hot plate with 45 high-quality steel finishing, two hot plate surface subjected to surface grinding to ensure two parallel surfaces of the hot plate, the maximum extent to ensure uniform thickness of the product.
6, pressure-resistant insulation boards ≥400kg / cm2, a thermal conductivity of 0.18Kcal / m ºC temperature at 220 ºC -250 ºC, the thickness of the insulating material for the new 20mm to address the use of rubber asbestos partial compression, separated poor heating effect.
This Rubber Vulcanizing Press Machine is suitable for various applications such as Rubber Heat Press Machine, Rubber tiles Vulcanizing Press, and Rubber Tire Vulcanizing Press.
| Type | XLB-DQ1200× 1200× 2 | XLB-DQ1300× 2000× 1 | XLB-Q1200× 2500× 1 | XLB-Q1500× 2000× 1 | XLB-Q2000× 3000× 1 | XLB-Q1400× 5700× 1 |
| Clamping Force(KN) | 3150 | 5600 | 7500 | 10000 | 18000 | 28000 |
| Hot Plate Size(mm) | 1200× 1200 | 1300× 2000 | 1200× 2500 | 1500× 2000 | 2000× 3000 | 1400× 5700 |
| Hot Plate Space (mm) | 200 | 400 | 400 | 400 | 400 | 400 |
| Layer NO. | 2 | 1 | 1 | 1 | 1 | 1 |
| Plunger Stroke(mm) | 400 | 400 | 400 | 400 | 400 | 400 |
| Plate Unit Area Pressure(N/mm2) | 2.2 | 2.15 | 2.5 | 3.35 | 3.0 | 3.5 |
| Main Motor Power(kw) | 5.5 | 8 | 9.5 | 11 | 26 | 43.5 |
| Overall Dimension(L× W× H) (mm) | 1685× 1320× 2450 | 2000× 1860× 2500 | 2560× 1700× 2780 | 2810× 1550× 3325 | 2900× 3200× 2860 | 2400× 5800× 3600 |
| Weight(kg) | 9500 | 17000 | 20000 | 24000 | 66000 | 110000 |
This Rubber Vulcanizing Press Machine can be used for Rubber Plate Vulcanizing Machine, Rubber Tire Vulcanizing Press, and Rubber tiles Vulcanizing Press.
The Beishun Rubber Vulcanizing Press Machine is an ideal solution for industries that require a high-quality and reliable machine for their rubber vulcanizing needs. The machine's minimum order quantity is 1 piece, and its price range varies between 5000USD-100000USD. The delivery time is 45 days, and the payment terms are T/T and L/C.
The Beishun Rubber Vulcanizing Press Machine has a cylinder stroke of 200mm and operates on a voltage of 220V/380V/400V/440V. The machine's supply ability is 30 sets per year, making it readily available for industries that need it.
This Rubber Vulcanizing Press Machine has a vulcanizing time of 0-999 seconds, making it highly efficient in processing rubber products. It is suitable for various application occasions and scenarios, including the vulcanization of rubber tires, rubber plates, and rubber belts.
The Beishun Rubber Vulcanizing Press Machine is an excellent choice for industries that require a high-quality and reliable machine for their rubber vulcanizing needs. With its advanced features and capabilities, the machine is suitable for various applications, making it a popular option in the industry.
Overall, the Beishun Rubber Vulcanizing Press Machine is a versatile and efficient machine that can help industries achieve their production goals in a timely and cost-effective manner.
Product Packaging:
Shipping:
|
|
