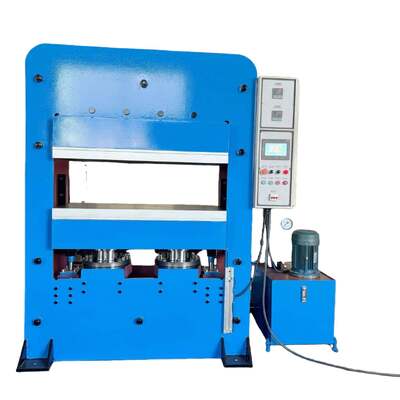

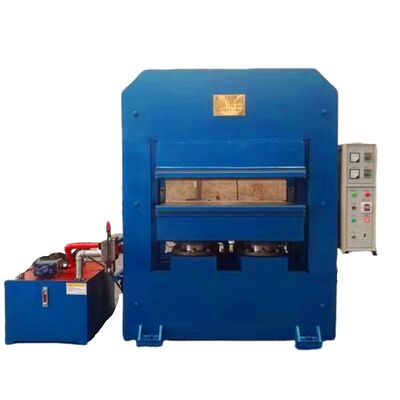

1000×1000mm Worktable Frame Structure Flat Vulcanizing Press Machine with 400-ton Hydraulic System
Product Summary
1000*1000mm Worktable Frame Structure Flat Vulcanizing Press with 400-ton Hydraulic System This industrial-grade flat vulcanizing press represents a heavy-duty solution for demanding manufacturing applications. Featuring a 1000*1000mm worktable and robust 400-ton hydraulic system, this machine ...
Basic Properties
Place of Origin:
Qingdao
Brand Name:
Beishun
Certification:
ISO/CE
Model Number:
XPL-1000×1000/4.0MN
Trading Properties
Minimum Order Quantity:
1set
Price:
Negotiable
Payment Terms:
T/T,L/C
Supply Ability:
20sets/month
Product Description
1000*1000mm Worktable Frame Structure Flat Vulcanizing Press with 400-ton Hydraulic System
This industrial-grade flat vulcanizing press represents a heavy-duty solution for demanding manufacturing applications. Featuring a 1000*1000mm worktable and robust 400-ton hydraulic system, this machine delivers exceptional performance for vulcanizing, laminating, and composite bonding processes.
Machine Specifications & Capabilities
Worktable/Platen Size
1000mm * 1000mm (1m * 1m) work area provides ample space for processing large sheets, multiple smaller parts in a single cycle, or accommodating substantial molds.
Frame Structure
Heavy-duty four-column (H-frame) construction ensures exceptional stability, minimal deflection under full load, and excellent platen parallelism for consistent, high-quality production results.
Vulcanizing Press Type
This hot press features heated platens for curing, bonding, or forming thermoset materials. The "flat" designation indicates specialization for sheet materials, molded sheets, and laminates.
Hydraulic System
400-ton (≈ 3,500 kN) hydraulic force delivers theoretical platen pressure of 40 kg/cm² (≈560 PSI), enabling intricate mold detailing, air expulsion during curing, and proper material density.
Industrial Applications
- Rubber Manufacturing: Production of rubber sheets, gaskets, seals, mats, and conveyor belt splices
- Composite & Laminate Production: Bonding fiberglass, carbon fiber, plastics, and wood materials
- Plastic & PCB Lamination: Manufacturing printed circuit boards and decorative laminates
- Silicone Product Curing: Creating silicone sheets, keypads, and industrial components
- Technical Textiles: Bonding non-wovens and foam fabrics
- Research & Development: Material testing and prototyping under controlled heat and pressure
Key Components & Features
- Heated Platens: High-grade drilled tool steel construction for even heat distribution (up to 300°C+)
- Hydraulic Power Unit: High-flow pump, electric motor, oil reservoir, and cooling system
- Precision Control System: PLC with touchscreen HMI for temperature, pressure, and cycle control
- Safety Systems: Light curtains, pressure relief valves, and mechanical lockout provisions
- Optional Hydraulic Ejection: For efficient part removal from deep molds
- Optional Water Cooling: Rapid cooling channels to improve cycle times
Operational Considerations
- Custom Tooling: Requires molds or caul plates sized for 1m * 1m platen area
- Power Requirements: Significant electrical capacity needed for heaters (30-60 kW+) and hydraulic systems
- Foundation Requirements: Heavy-duty concrete foundation essential for machine stability
- Cycle Efficiency: Heating and cooling times optimized for material-specific cure requirements
- Parallelism Control: Precision guide rods and proportional hydraulic valves ensure consistent platen alignment
This large-format, high-tonnage industrial hot press is engineered for high-volume production and large-part manufacturing of vulcanized rubber, composites, and laminated materials, delivering consistent high pressure and temperature across the entire work surface.
Product Details
Highlight:
1000x1000mm vulcanizing press machine
,400-ton hydraulic vulcanizing press
,flat vulcanizing press with frame structure
Use:
Rubber Sheet And Rubber Conveyor
Column:
Polishing Treatment
Automatic Grade:
PLC Or Manual
Operation Mode:
Manual/Semi-automatic/Automatic
Safetyfeatures:
Emergency Stop, Overload Protection
Weight:
2000-5000 Kg
Heating Plate Size:
1000*1000mm Or Customized
Powersupply:
380V/50Hz Or Customized
Clamping Force:
400T
Loading Port:
Qingdao, China
Power Supply:
Customization
Piston Material:
Chilled Cast Iron
Auto:
Automatic
